Products
Permanent magnet variable speed, direct drive fixed speed and NEMA belt drive models, from compact single-phase units to complete 4-in-1 compressed air stations. UL / ASME.

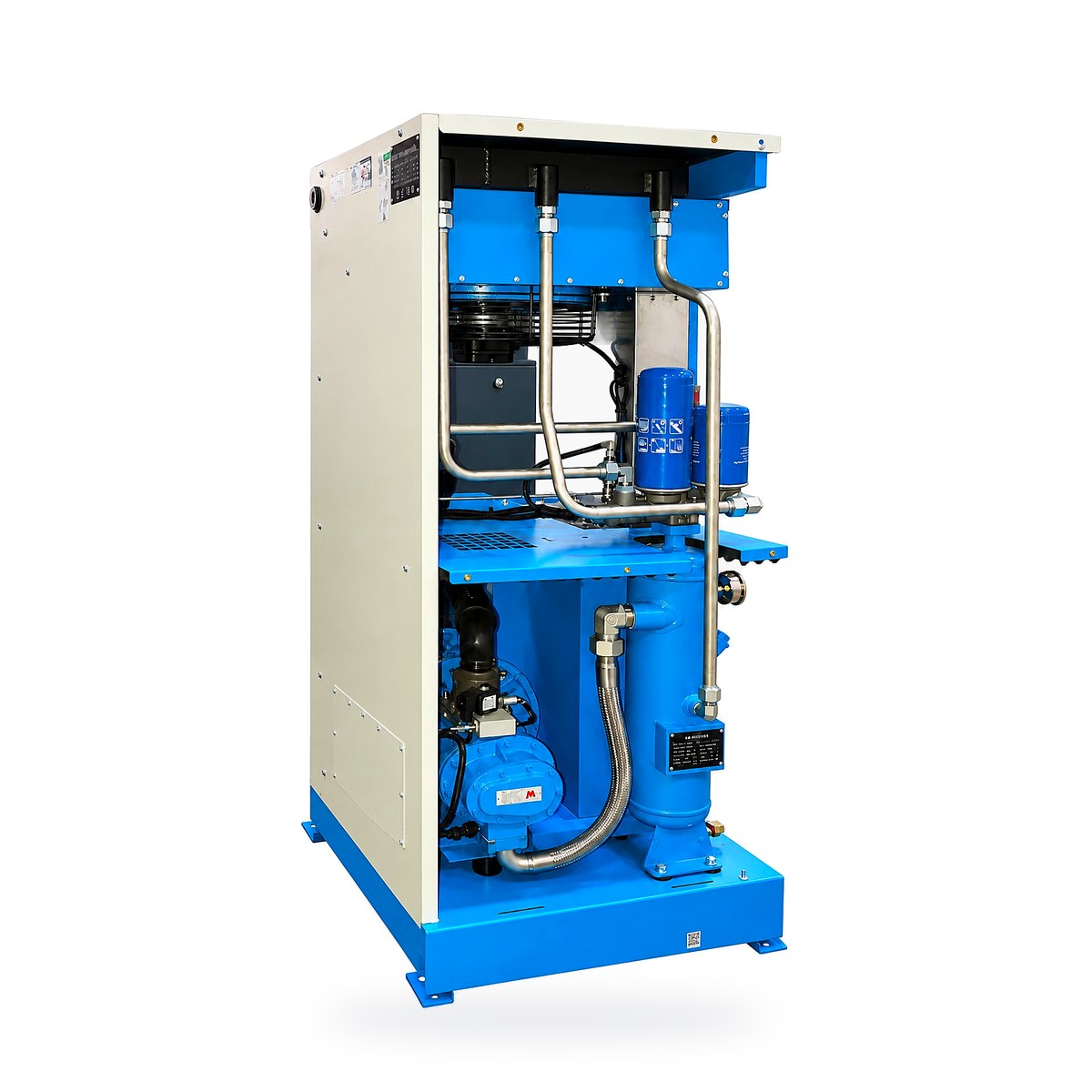

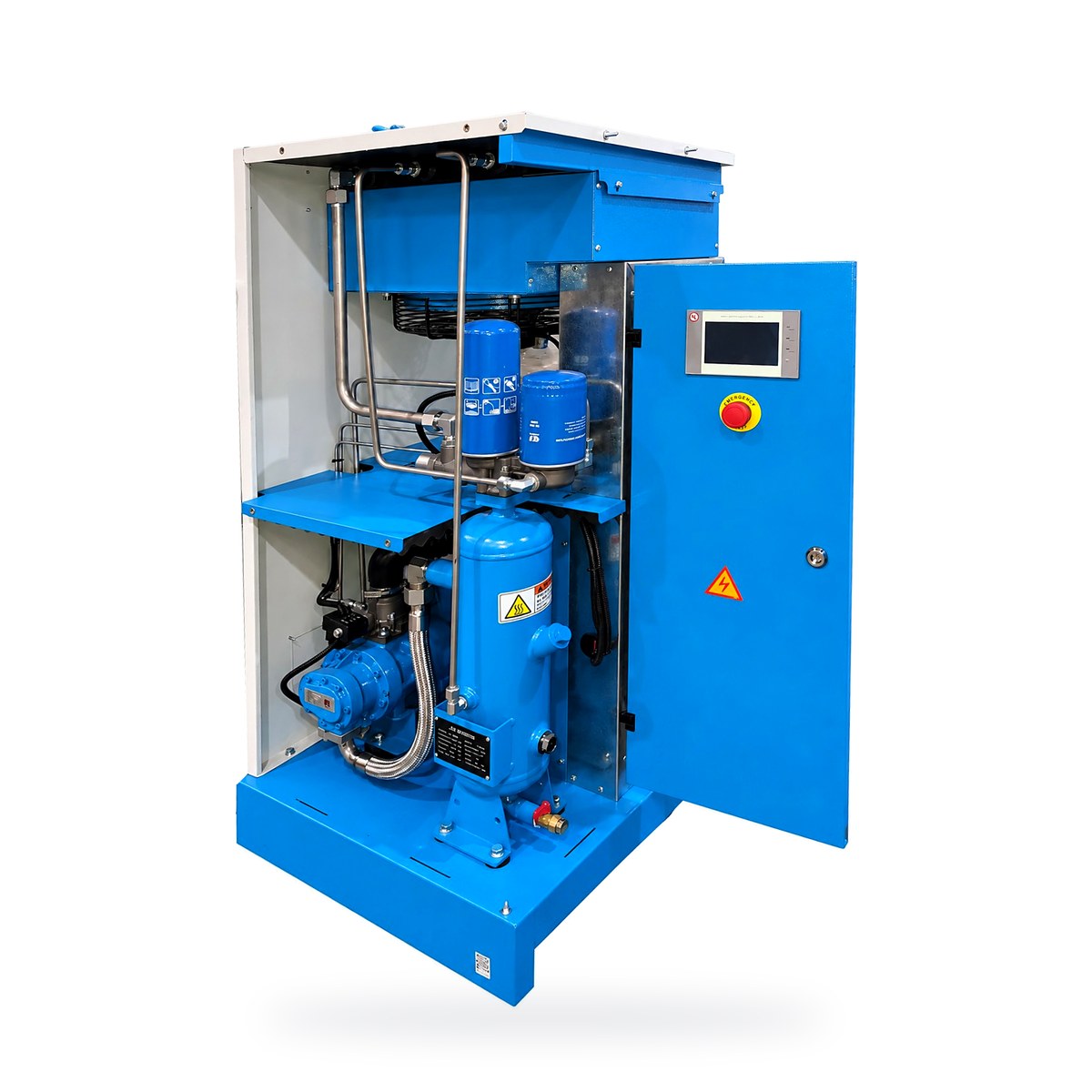

Permanent magnet VSD

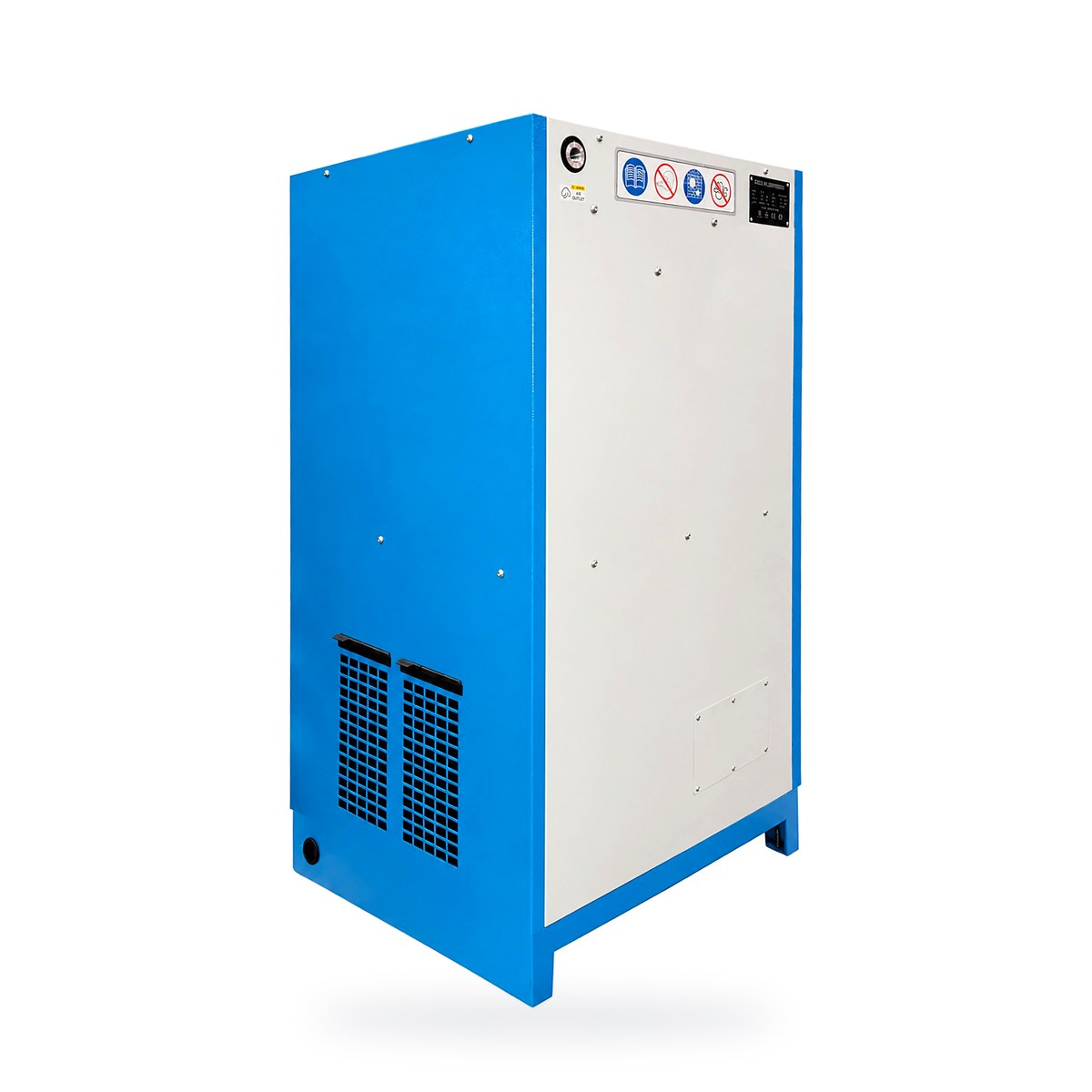

Permanent magnet motors with neodymium-iron-boron (NdFeB) magnetic steel raise compressor efficiency, with better performance, lower weight and a longer service life. A coaxial direct drive reduces the overall enclosure size, and the variable speed drive matches air delivery to actual demand.
| Model | HP / kW | Power supply | Max psi / bar | FAD CFM @ 145 psi | Noise dBA @ 1 m | Outlet | L×W×H (in) | Weight (lbs) | Oil |
|---|---|---|---|---|---|---|---|---|---|

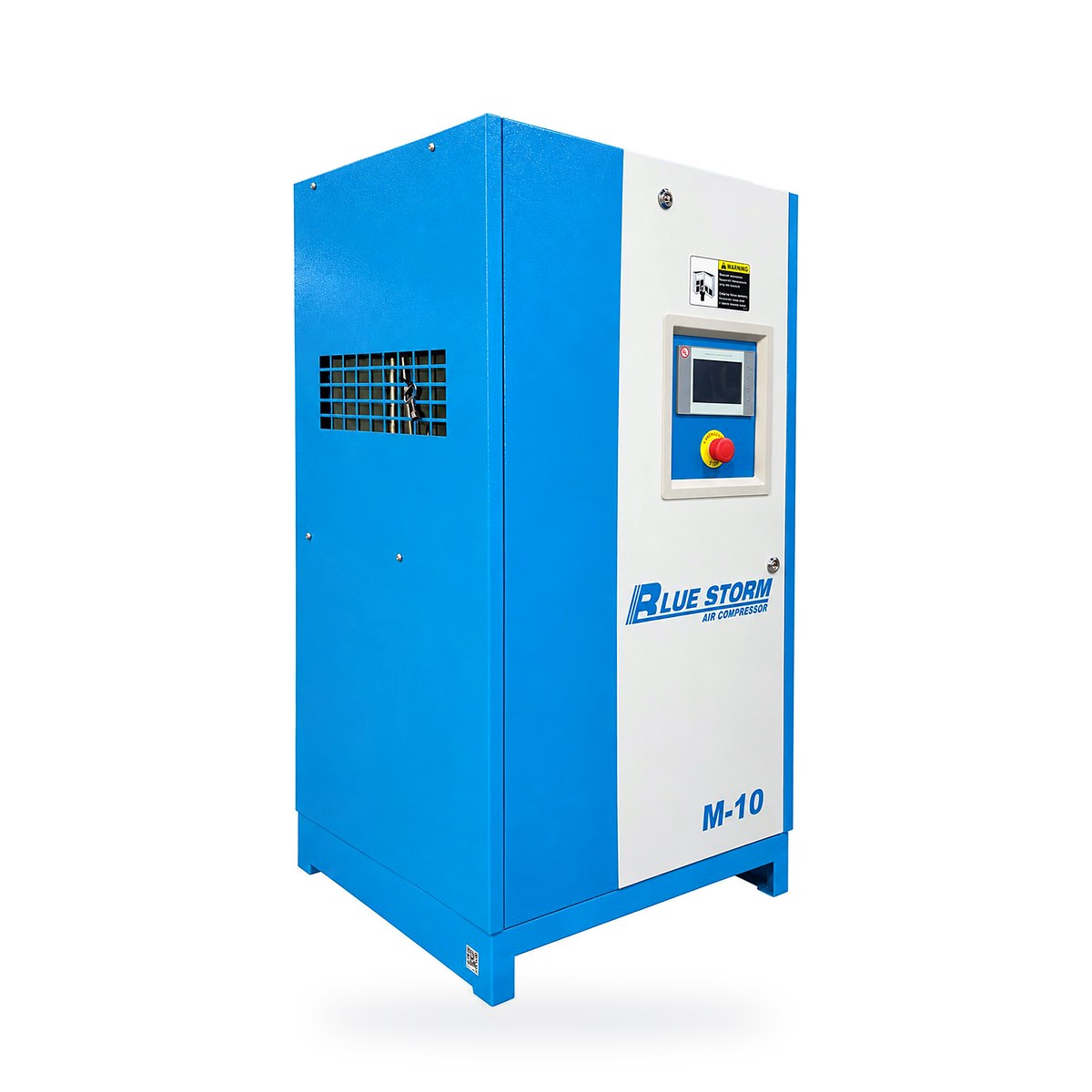

| M-10 | 10 / 7.5 | 230 V · 1 or 3 ph | 145 / 10 | 31.2 | 60 ±2 | 1/2" NPT | 25.6 × 24.0 × 49.2 | 397 | 3 L |

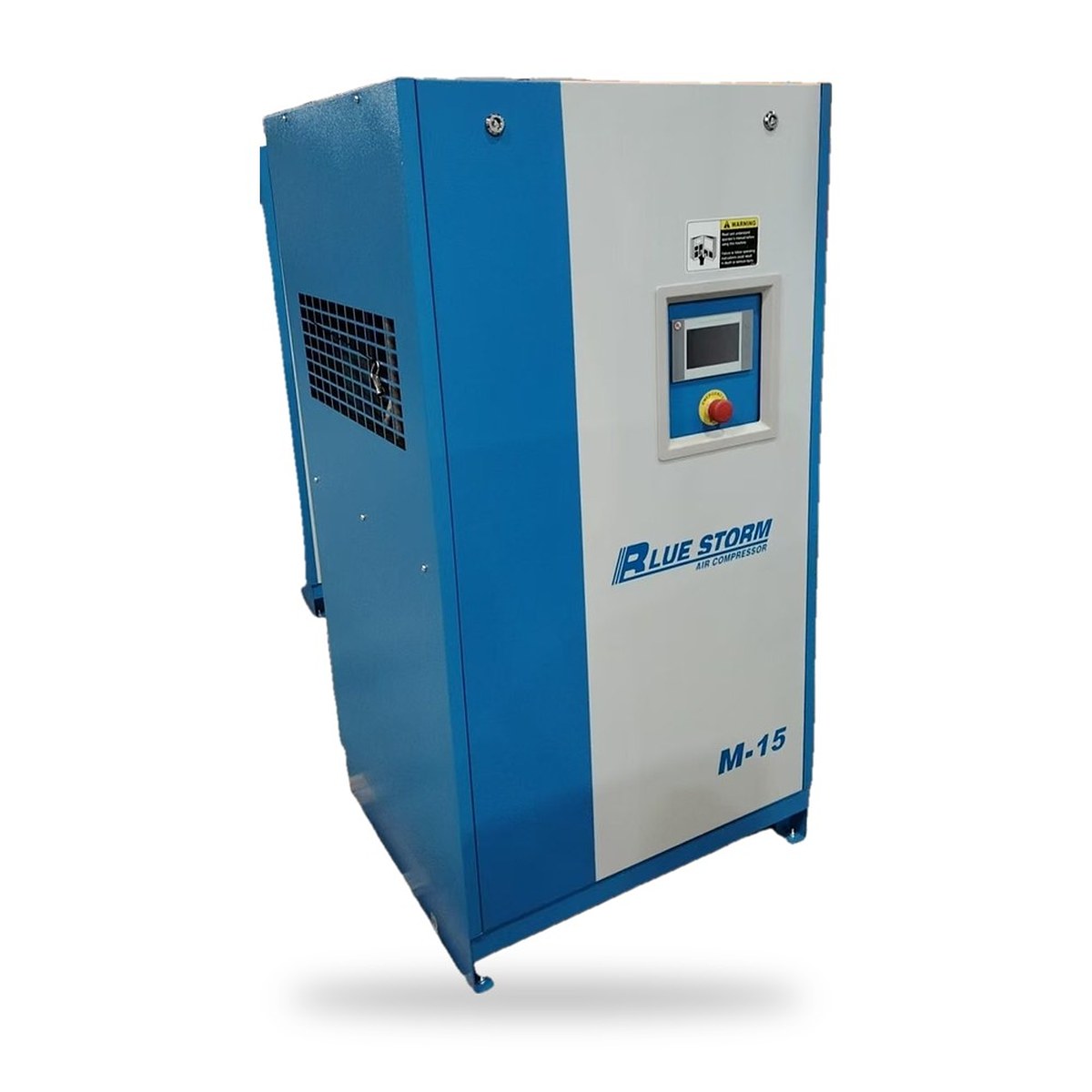

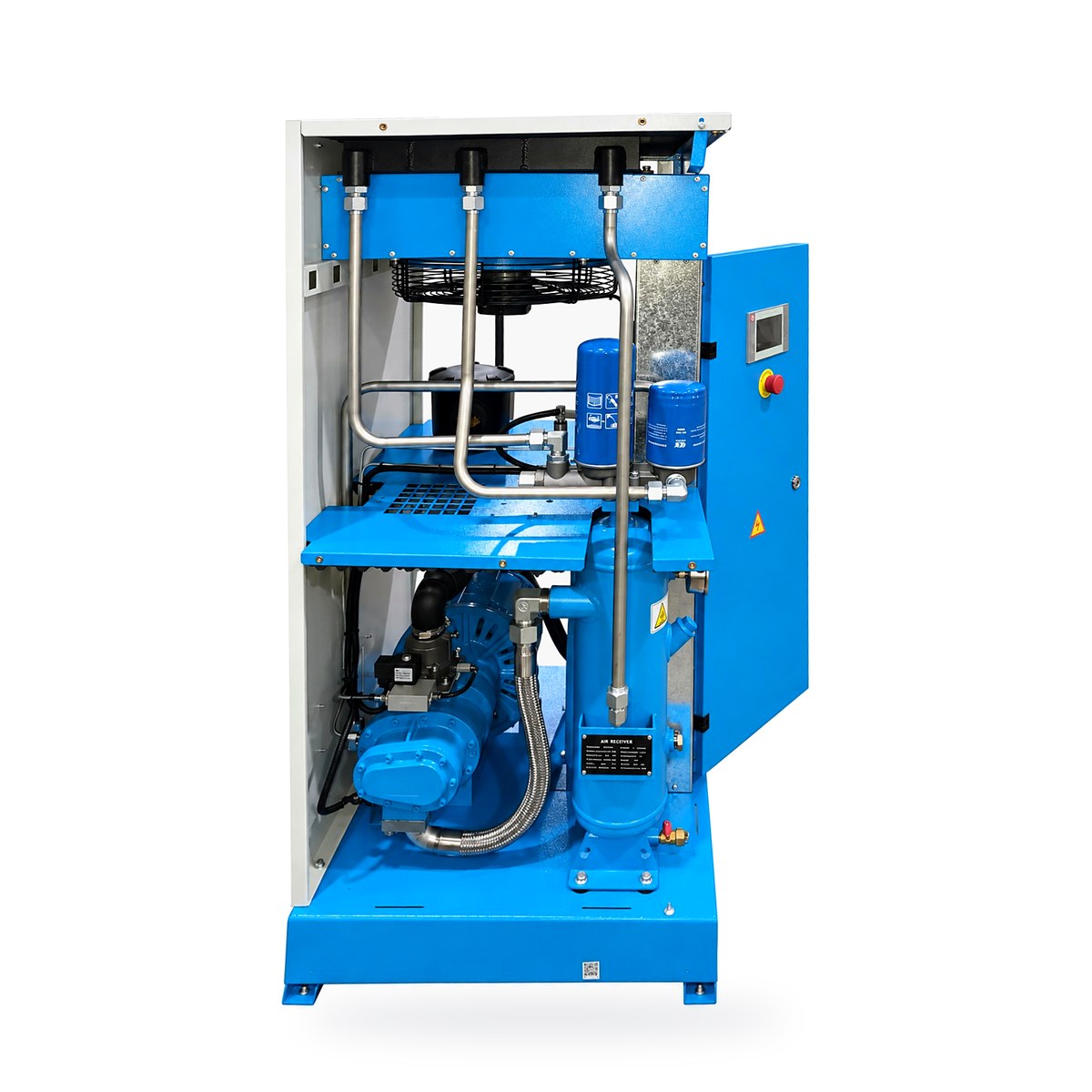

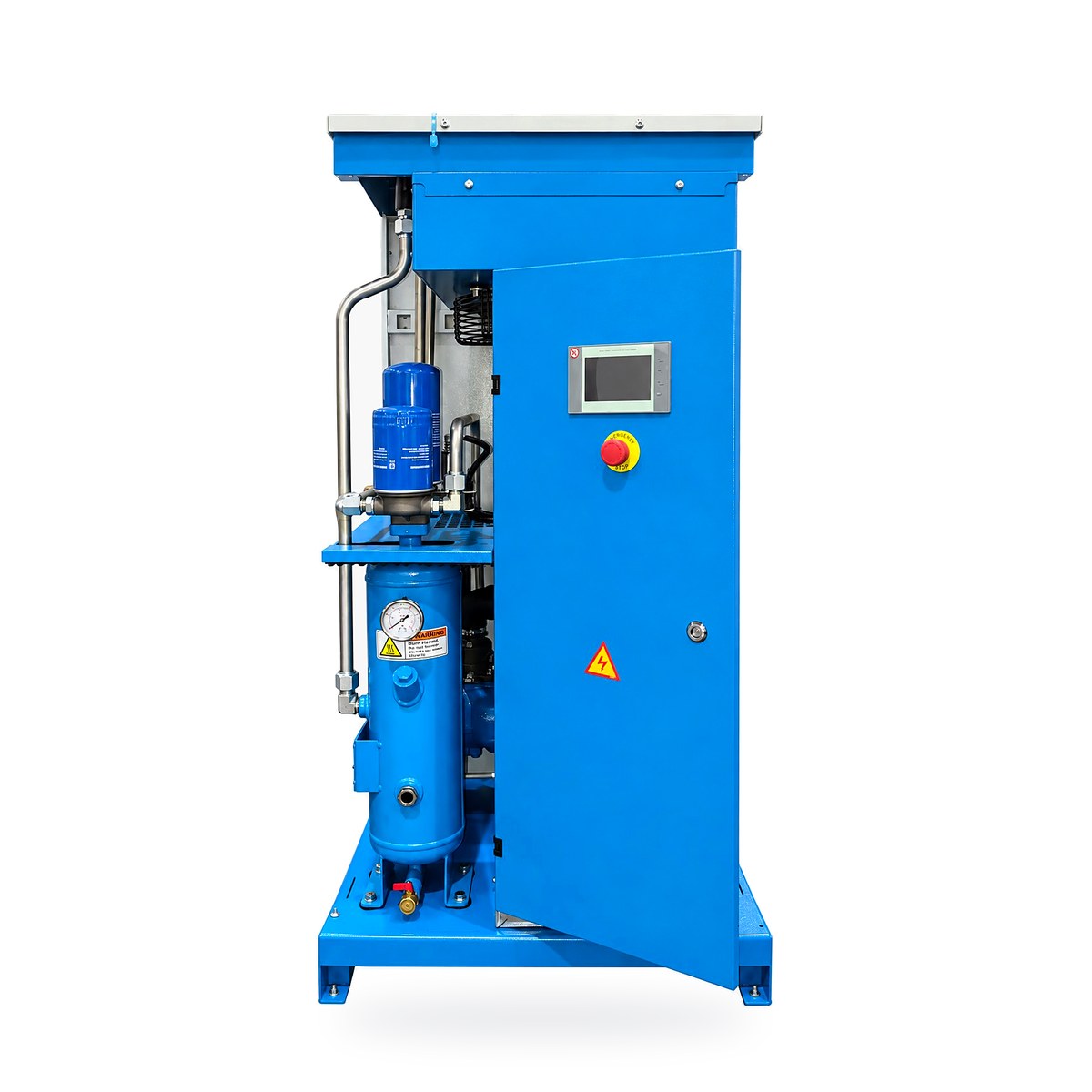

| M-15 | 15 / 11 | 230 V · 1 or 3 ph | 145 / 10 | 52.9 | 62 ±2 | 3/4" NPT | 29.4 × 26.8 × 55.9 | 540 | 5 L |

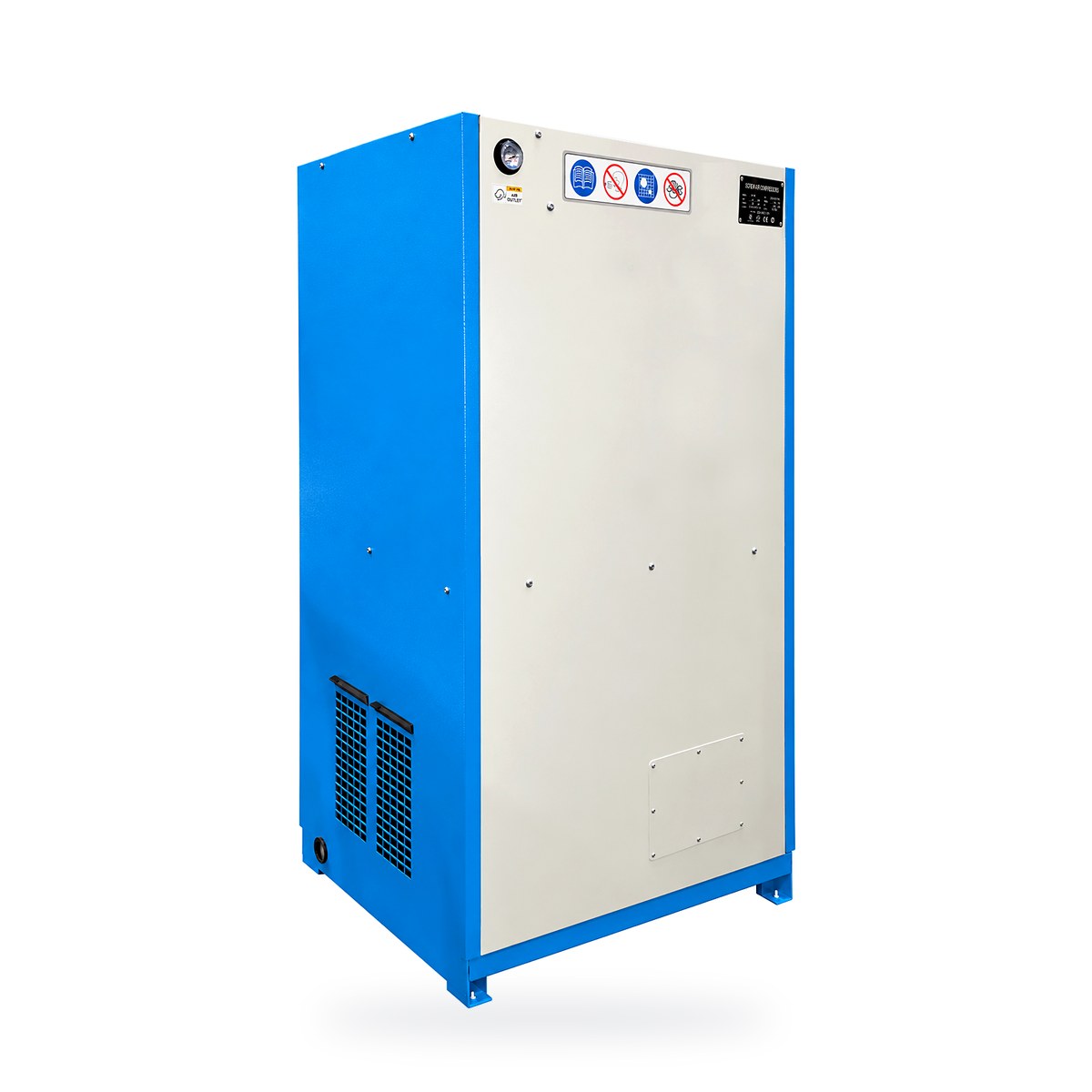

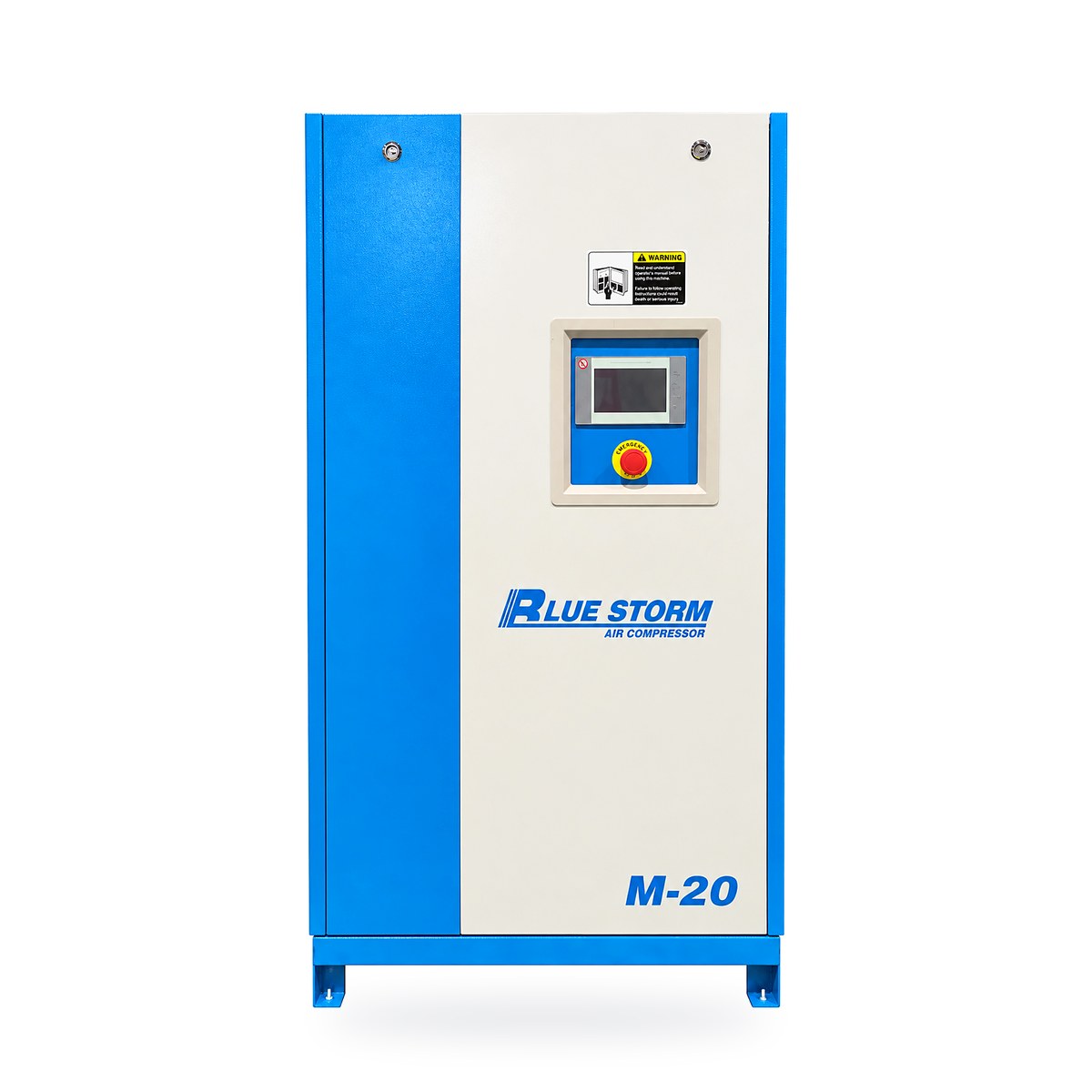

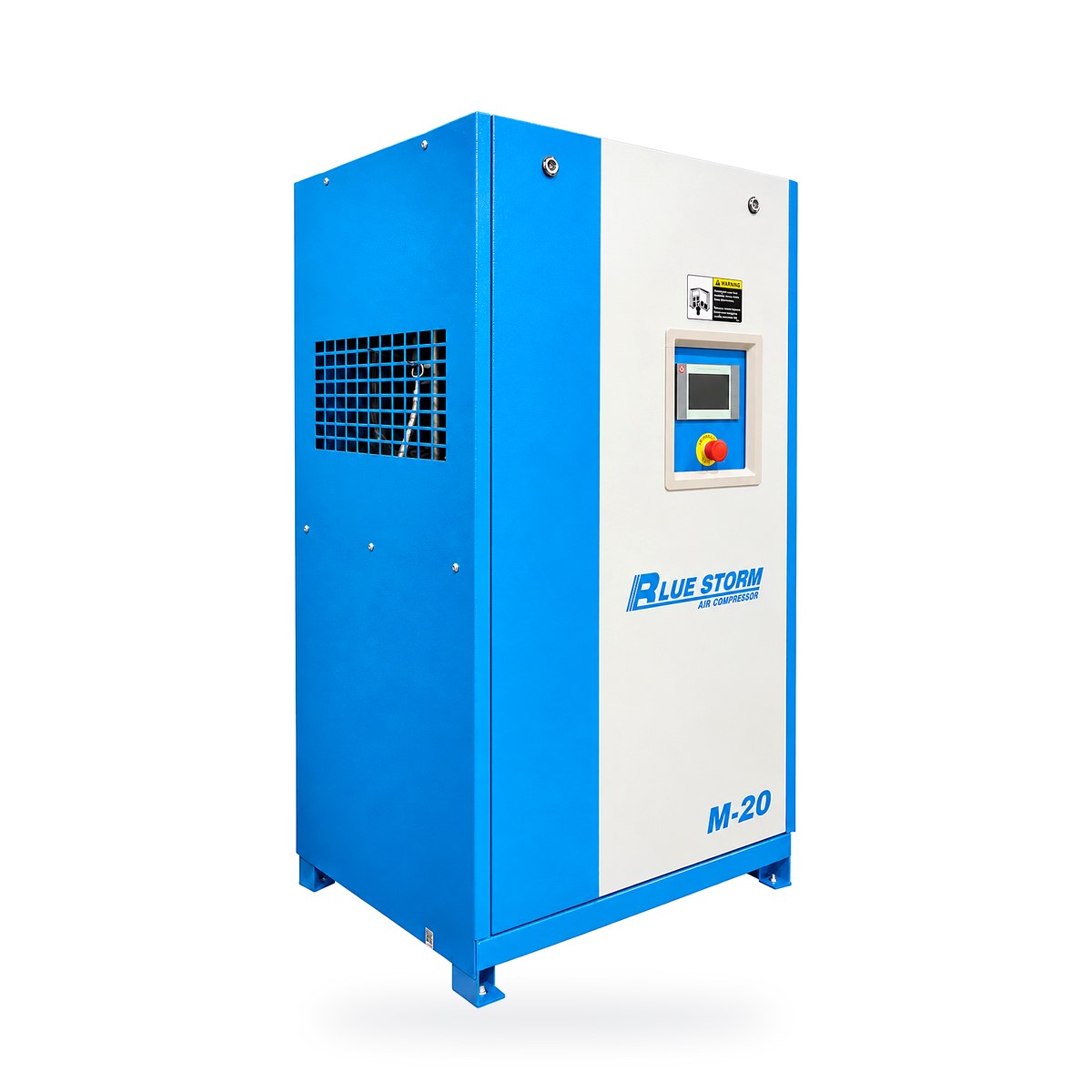

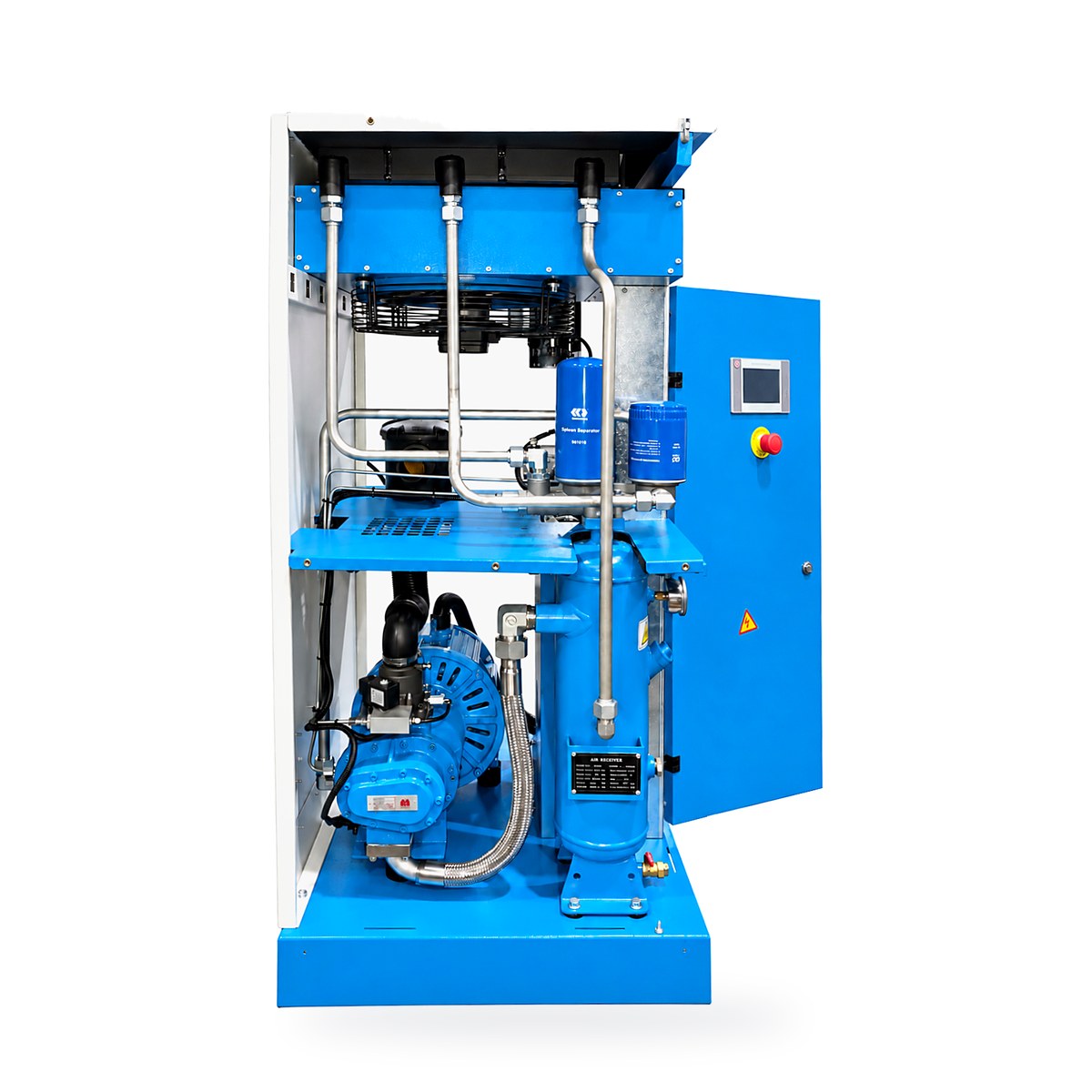

| M-20 | 20 / 15 | 230 V · 1 or 3 ph | 145 / 10 | 60.0 | 62 ±2 | 3/4" NPT | 29.4 × 26.8 × 55.9 | 540 | 5 L |

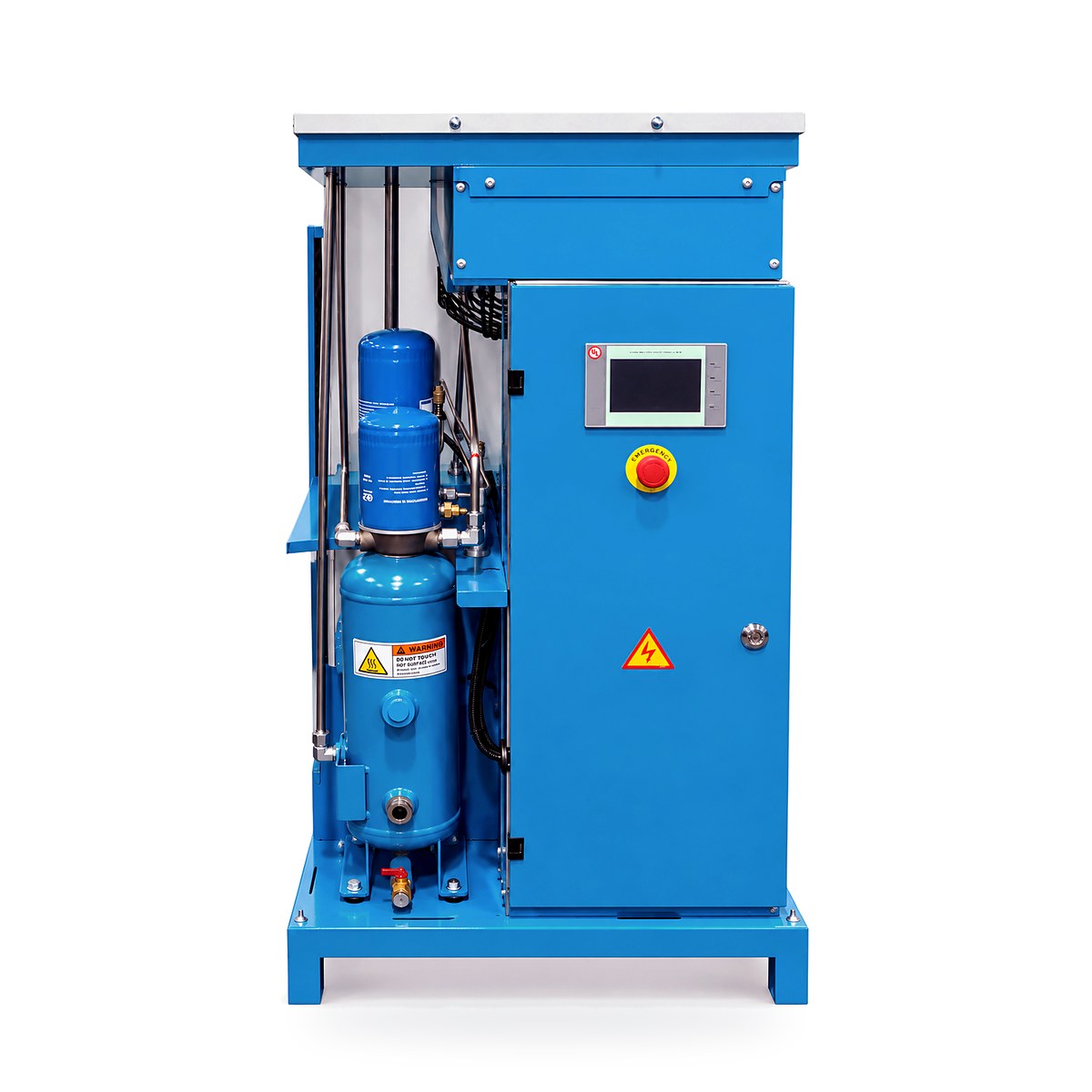

| M-10S | 10 / 7.5 | 460 V · 3 ph | 145 / 10 | 31.2 | 60 ±2 | 1/2" NPT | 25.6 × 24.0 × 49.2 | 397 | 3 L |

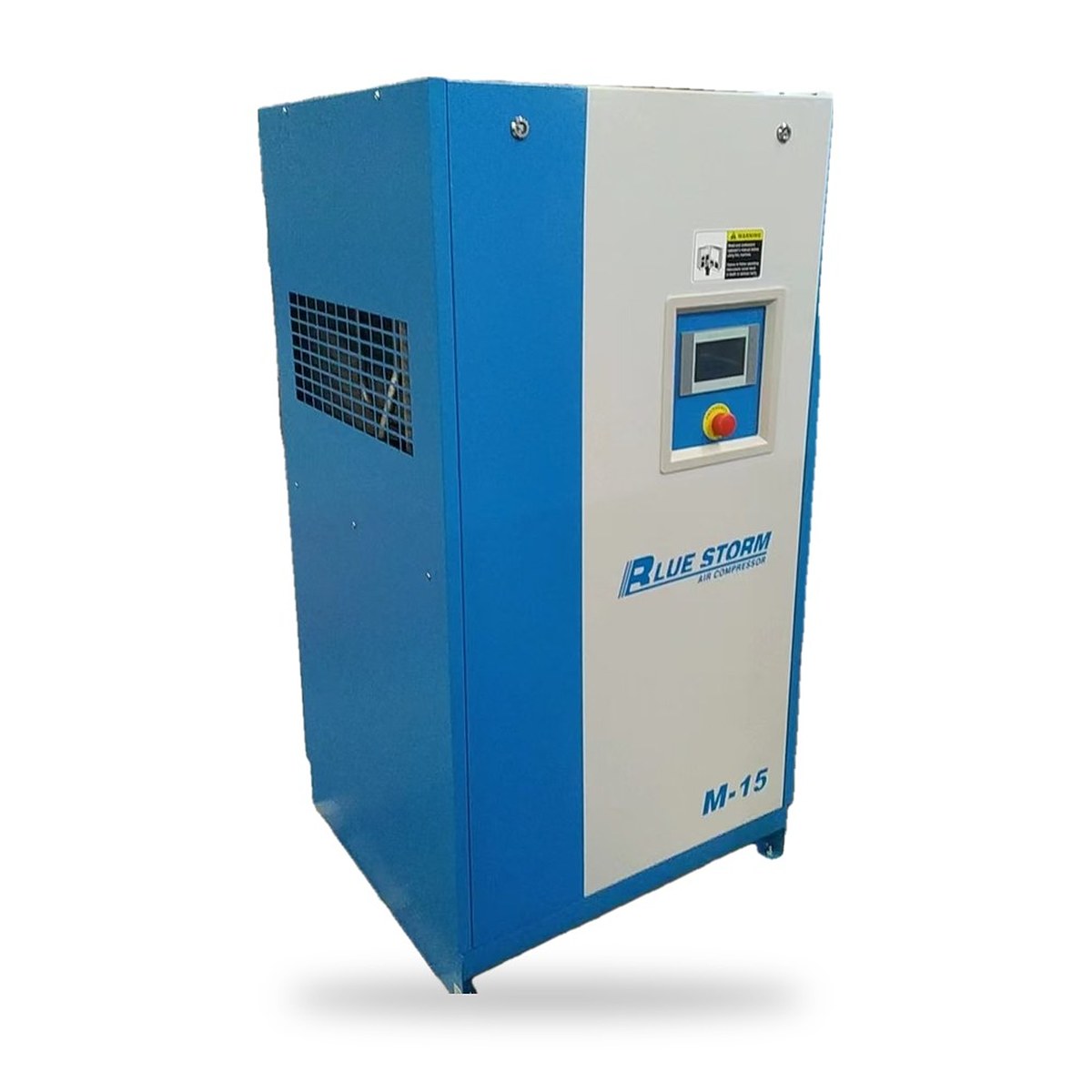

| M-15S | 15 / 11 | 460 V · 3 ph | 145 / 10 | 52.9 | 62 ±2 | 3/4" NPT | 29.4 × 26.8 × 55.9 | 540 | 5 L |
| M-20S | 20 / 15 | 460 V · 3 ph | 145 / 10 | 60.0 | 62 ±2 | 3/4" NPT | 29.4 × 26.8 × 55.9 | 540 | 5 L |

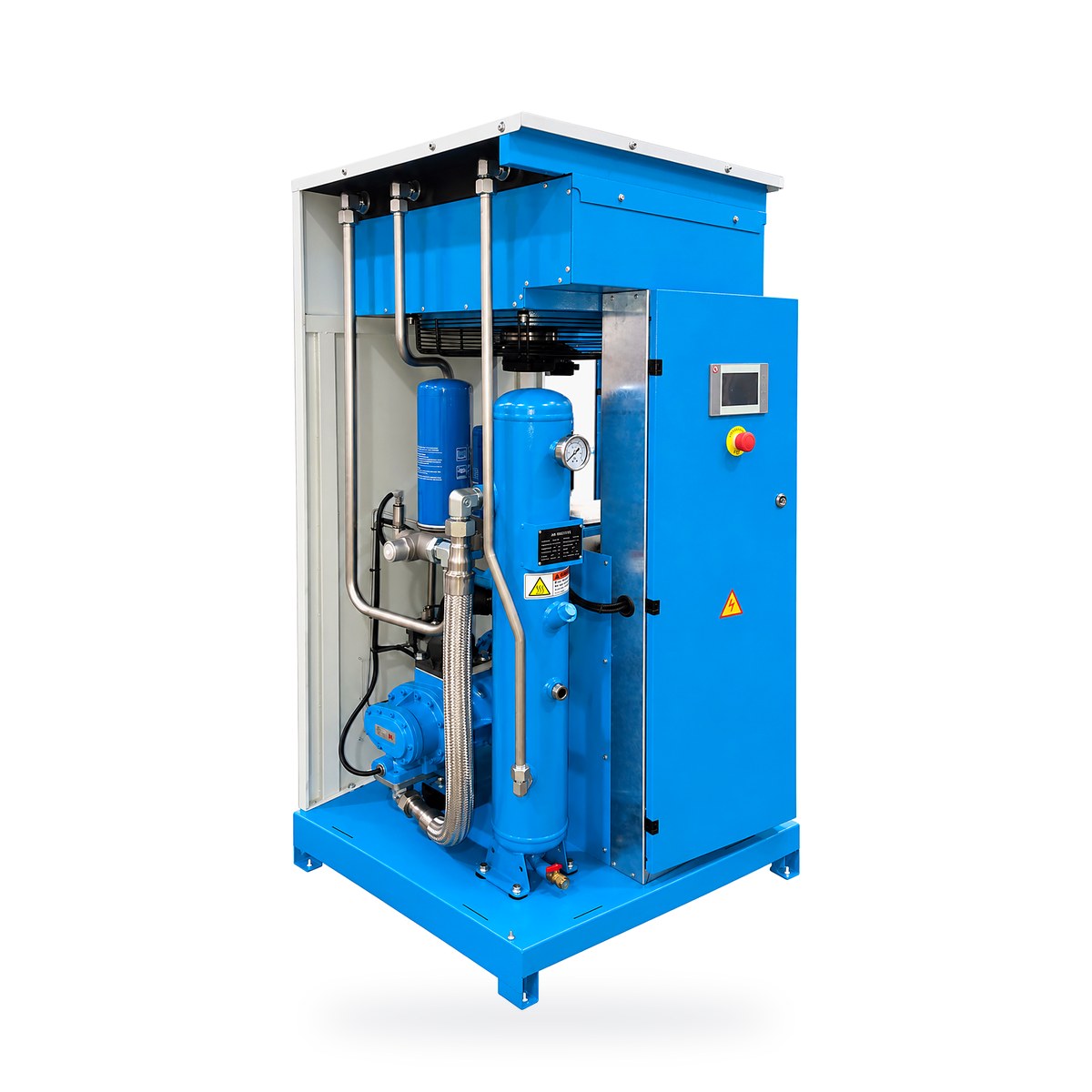

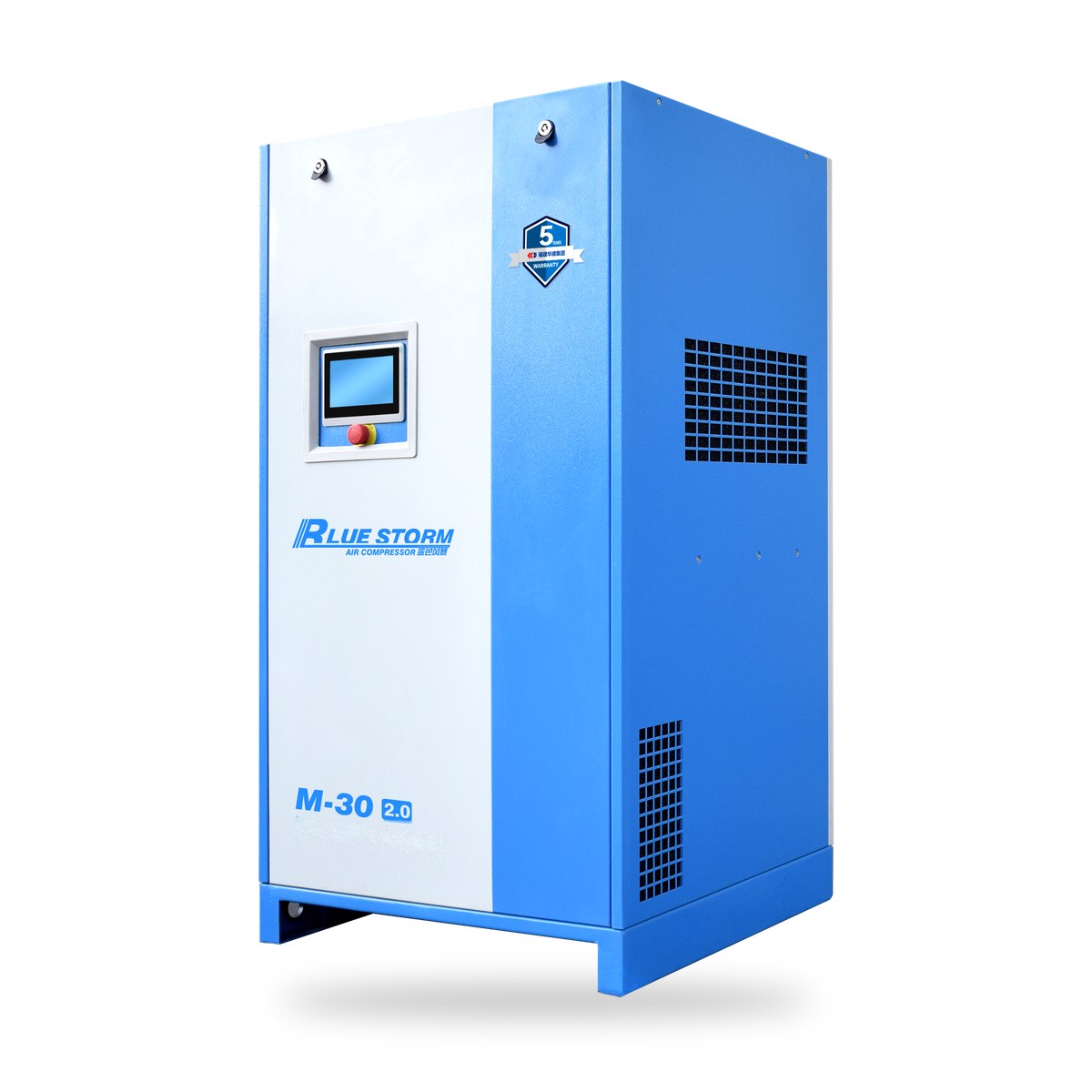

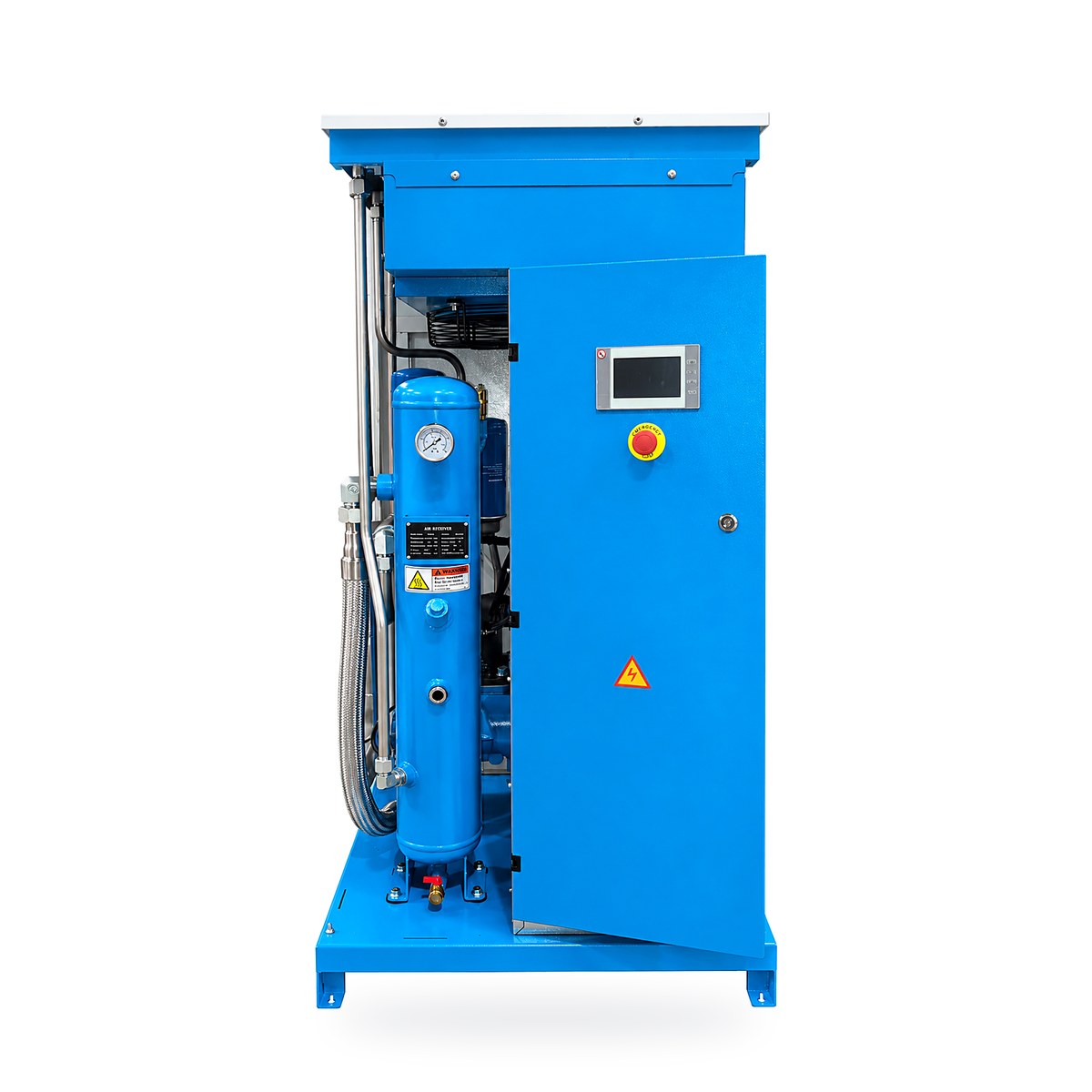

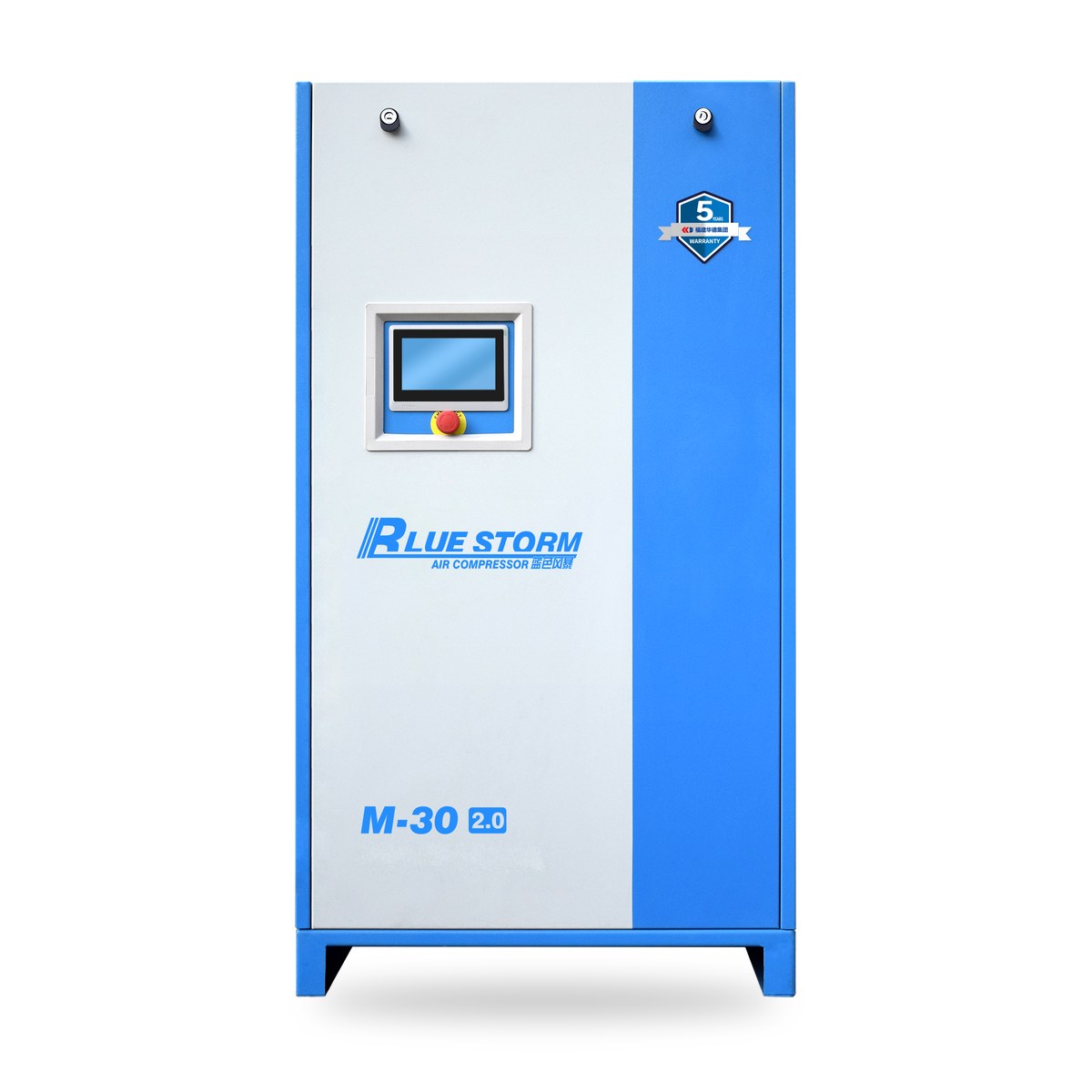

| M-30S | 30 / 22 | 460 V · 3 ph | 145 / 10 | 102 | 65 ±2 | 1" NPT | 31.5 × 20.7 × 62.6 | 750 | 10 L |

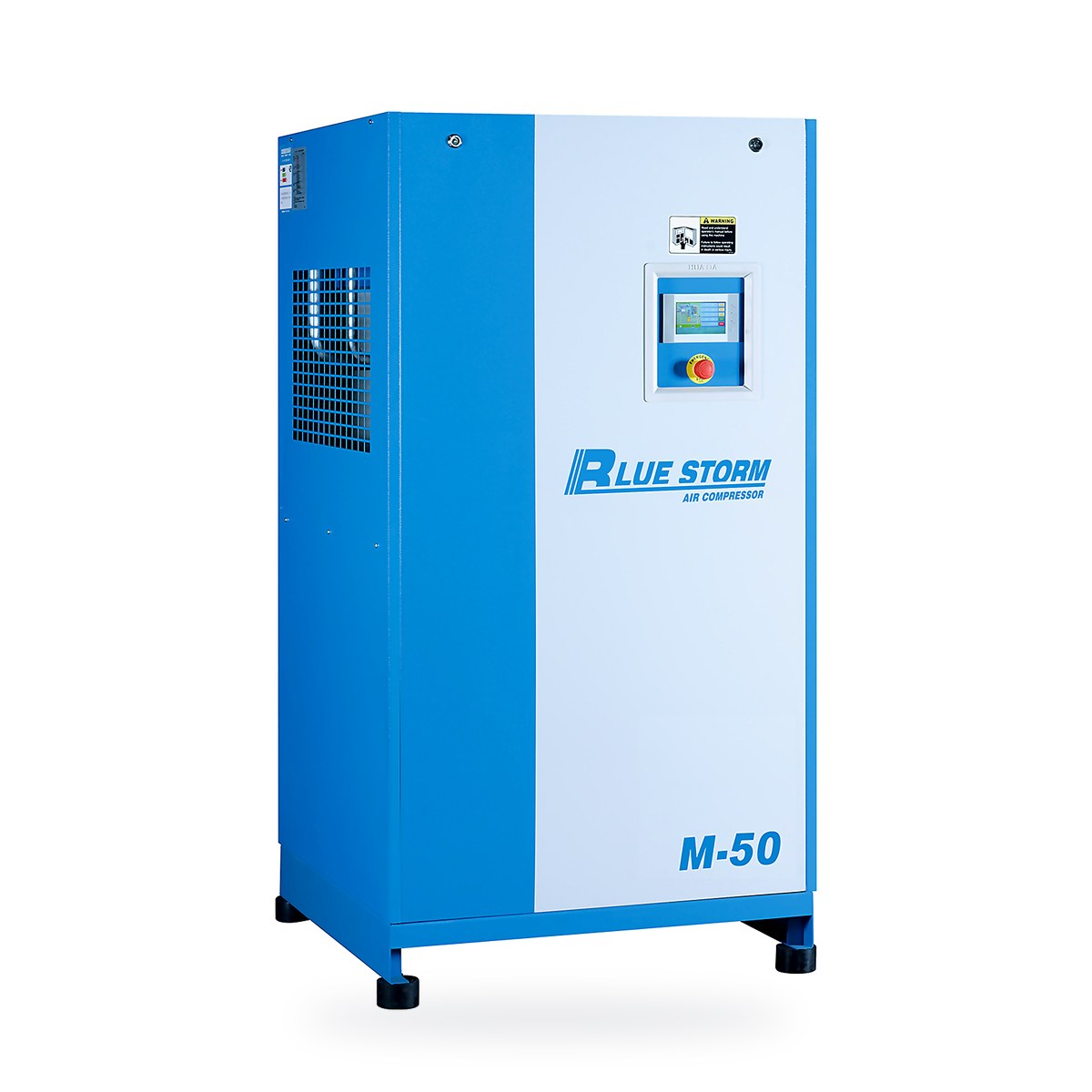

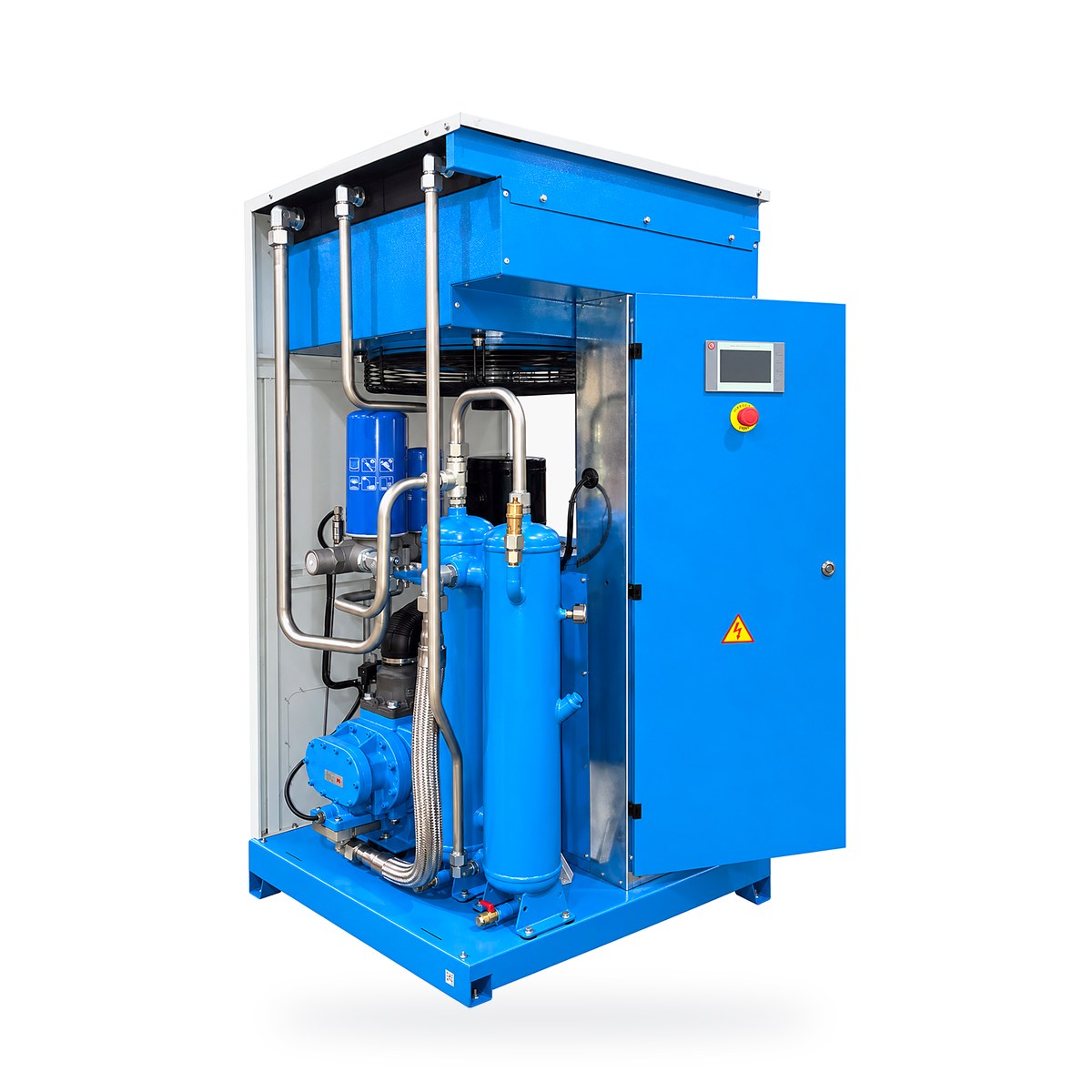

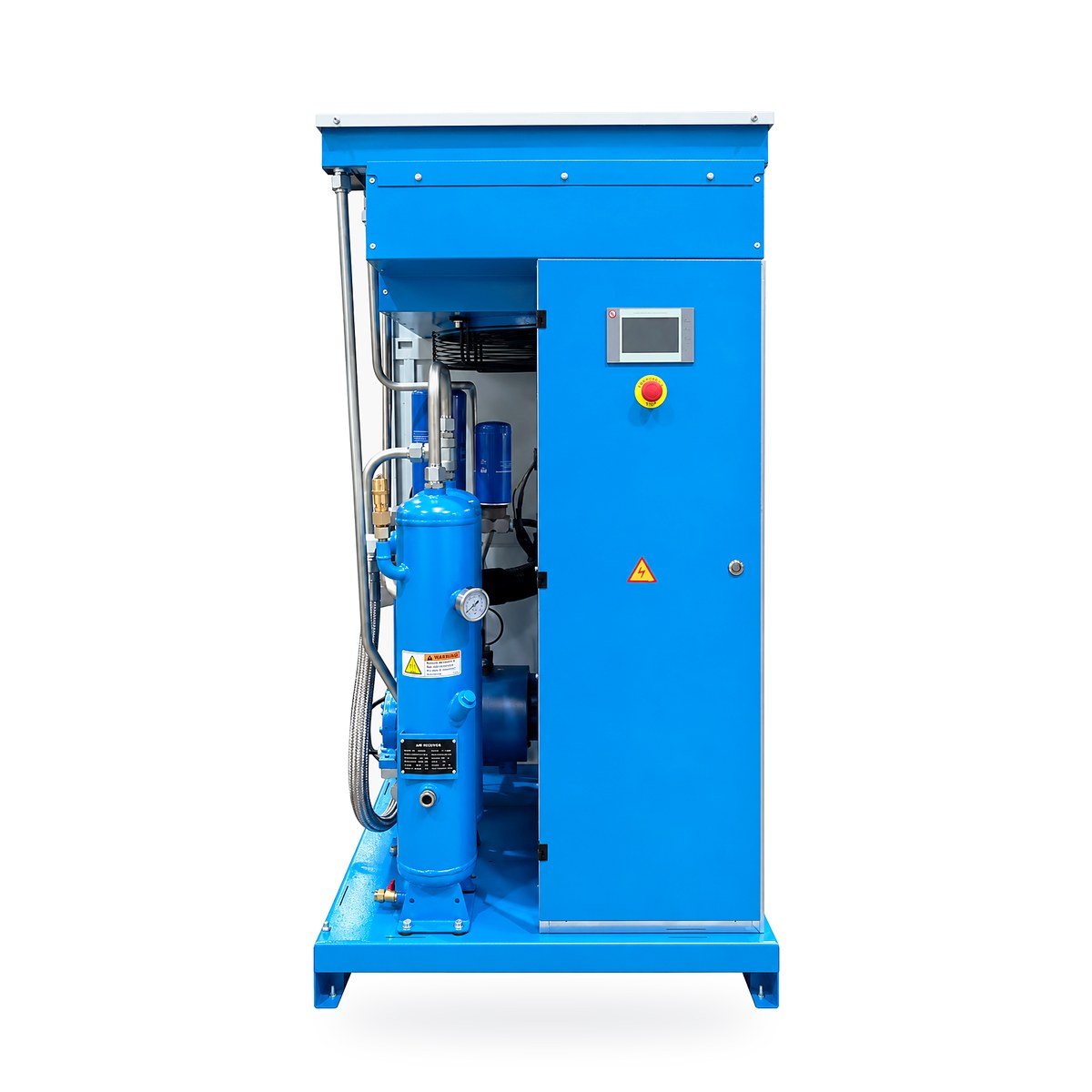

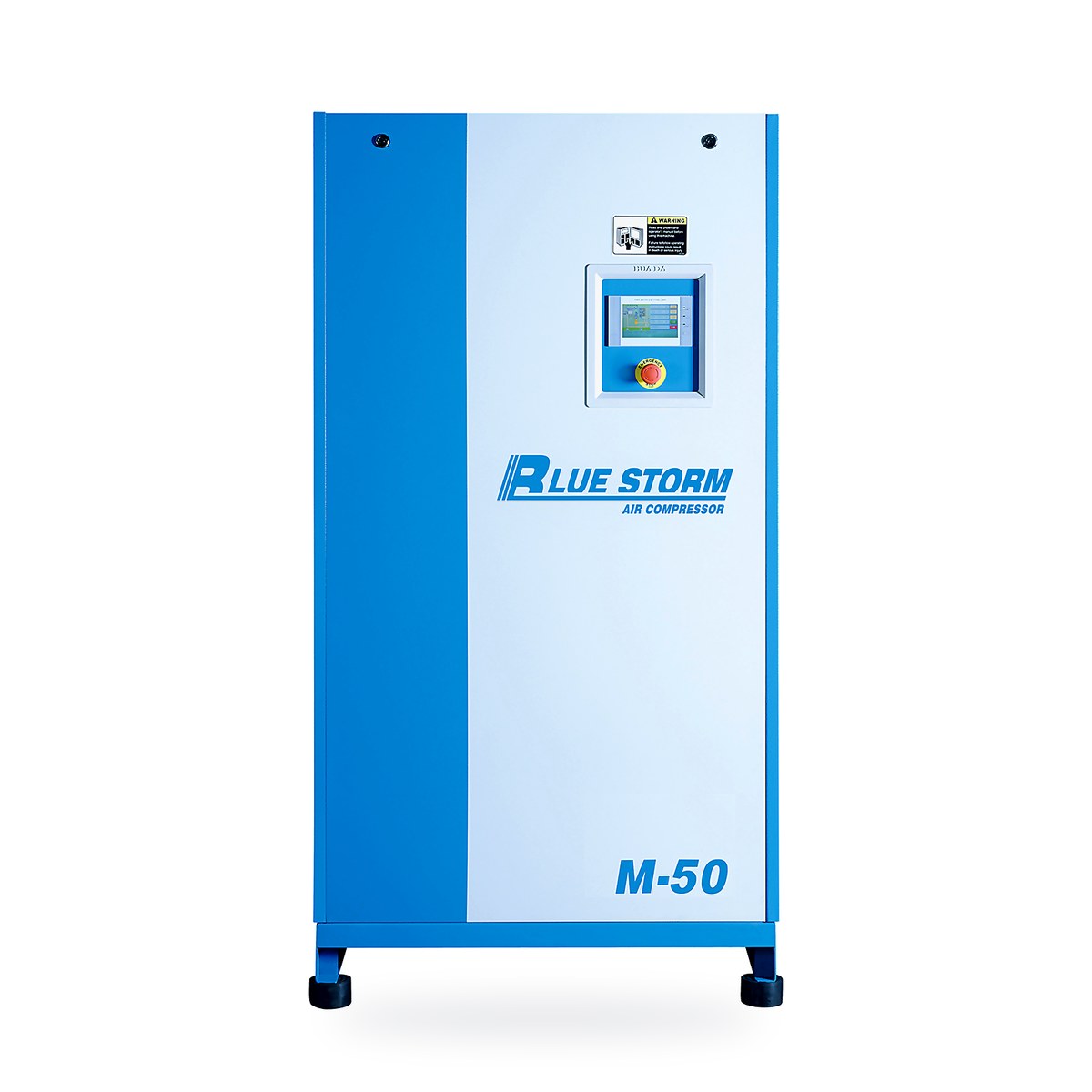

| M-50S | 50 / 37 | 460 V · 3 ph | 145 / 10 | 180 | 68 ±2 | 1-1/4" NPT | 35.4 × 34.6 × 68.5 | 1060 | 16 L |
230 V models: 208–240 V single or three phase (170–264 V input range). 460 V models: 380–480 V three phase (330–520 V input range). Outlet threads are NPT. Specifications subject to change.
Permanent magnet variable speed drive matches air delivery to actual demand and cuts unloaded running costs. IE4 motor, soft VFD start with low inrush current, and a wide input range (170–264 V) for 208–240 V single- or three-phase supplies.
Permanent magnet VSD, IE4 motor, direct drive.
Permanent magnet VSD, IE4 motor, direct drive.
Permanent magnet VSD, IE4 motor, direct drive.
Permanent magnet variable speed drive matches air delivery to actual demand and cuts unloaded running costs. IE4 motor, soft VFD start with low inrush current, and a wide input range (330–520 V) for 380–480 V three-phase supplies.
Permanent magnet VSD, IE4 motor, direct drive.
Permanent magnet VSD, IE4 motor, direct drive.
Permanent magnet VSD, IE4 motor, direct drive.
Permanent magnet VSD, IE4 motor, direct drive.
Permanent magnet VSD, IE4 motor, direct drive.

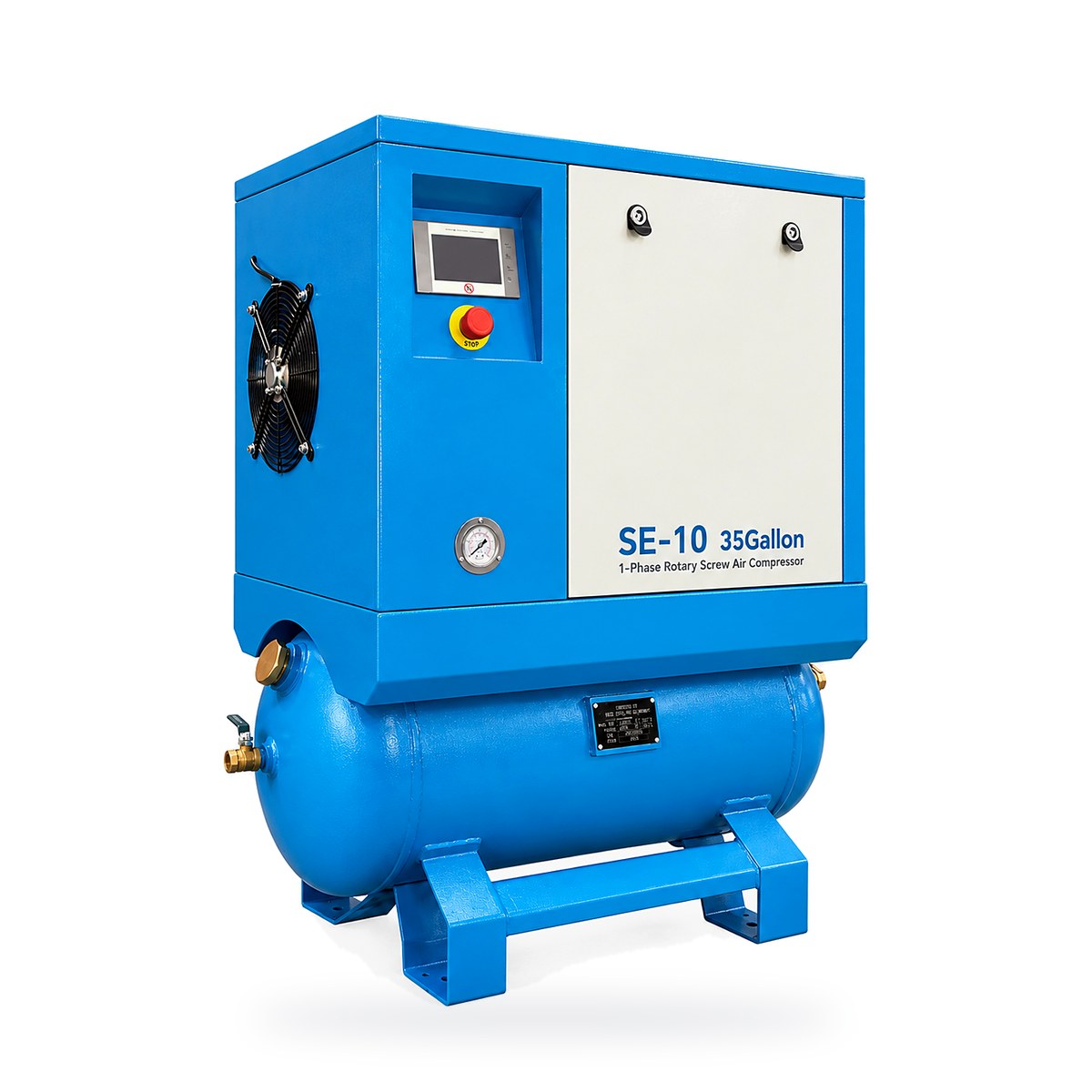

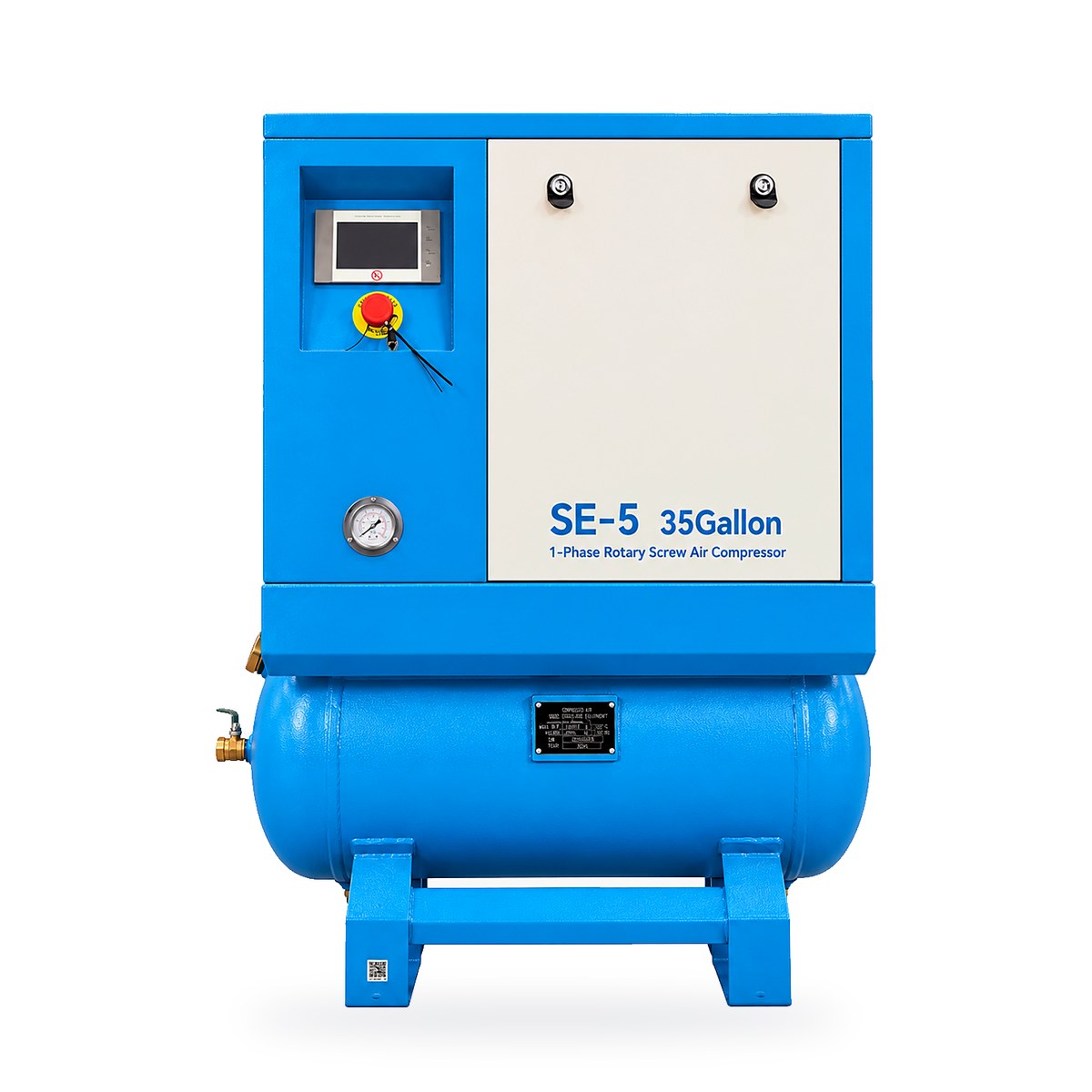

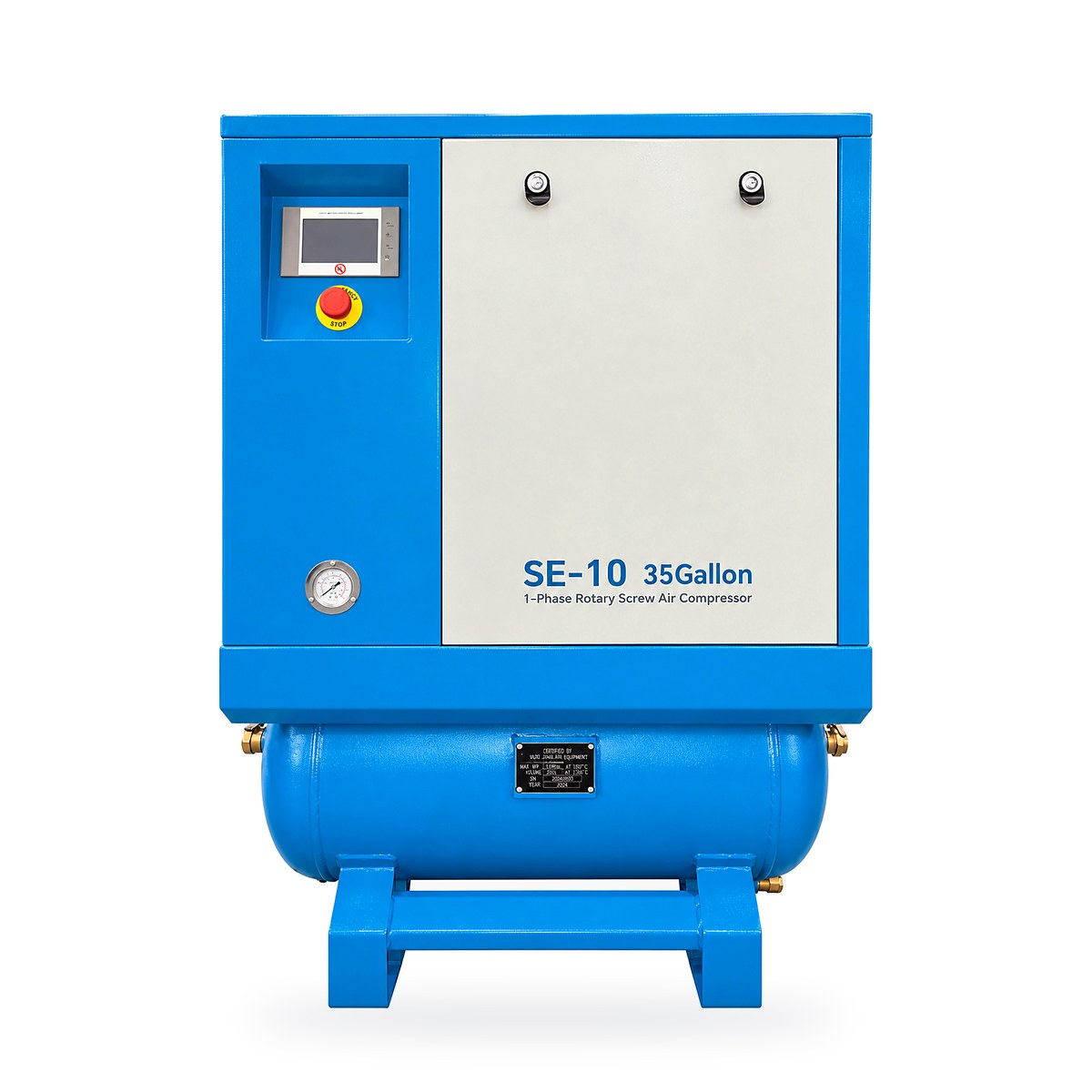

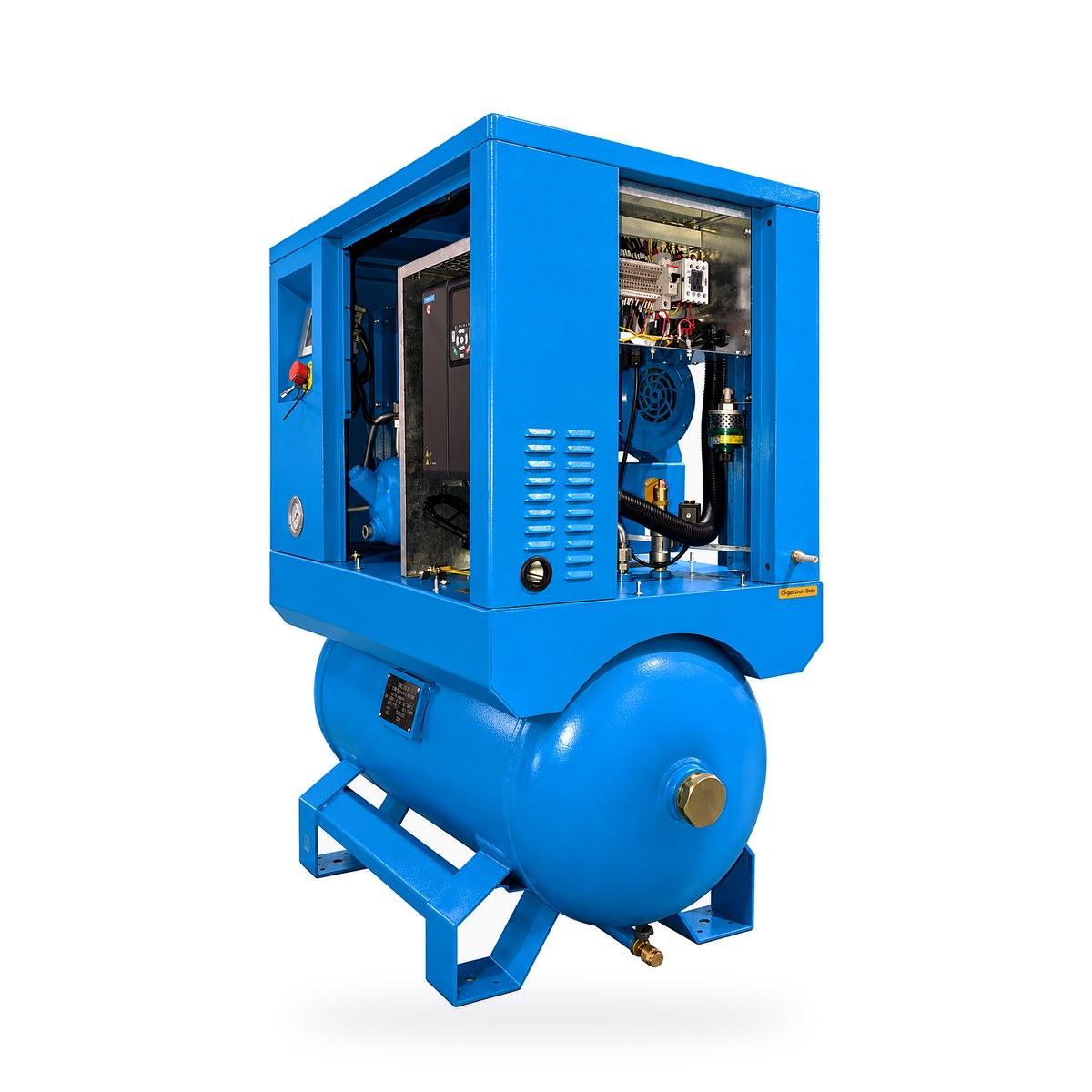

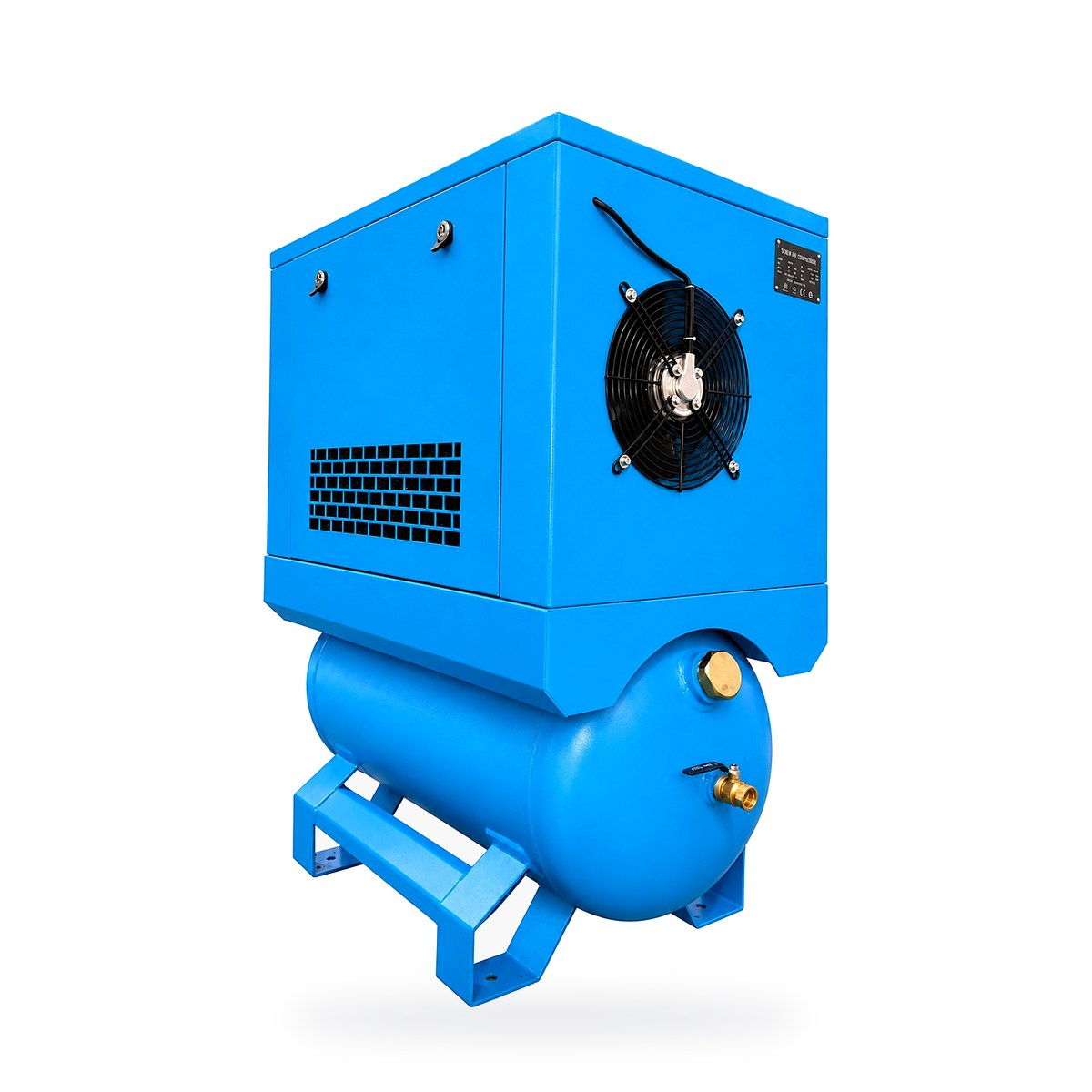

Single-phase VSD

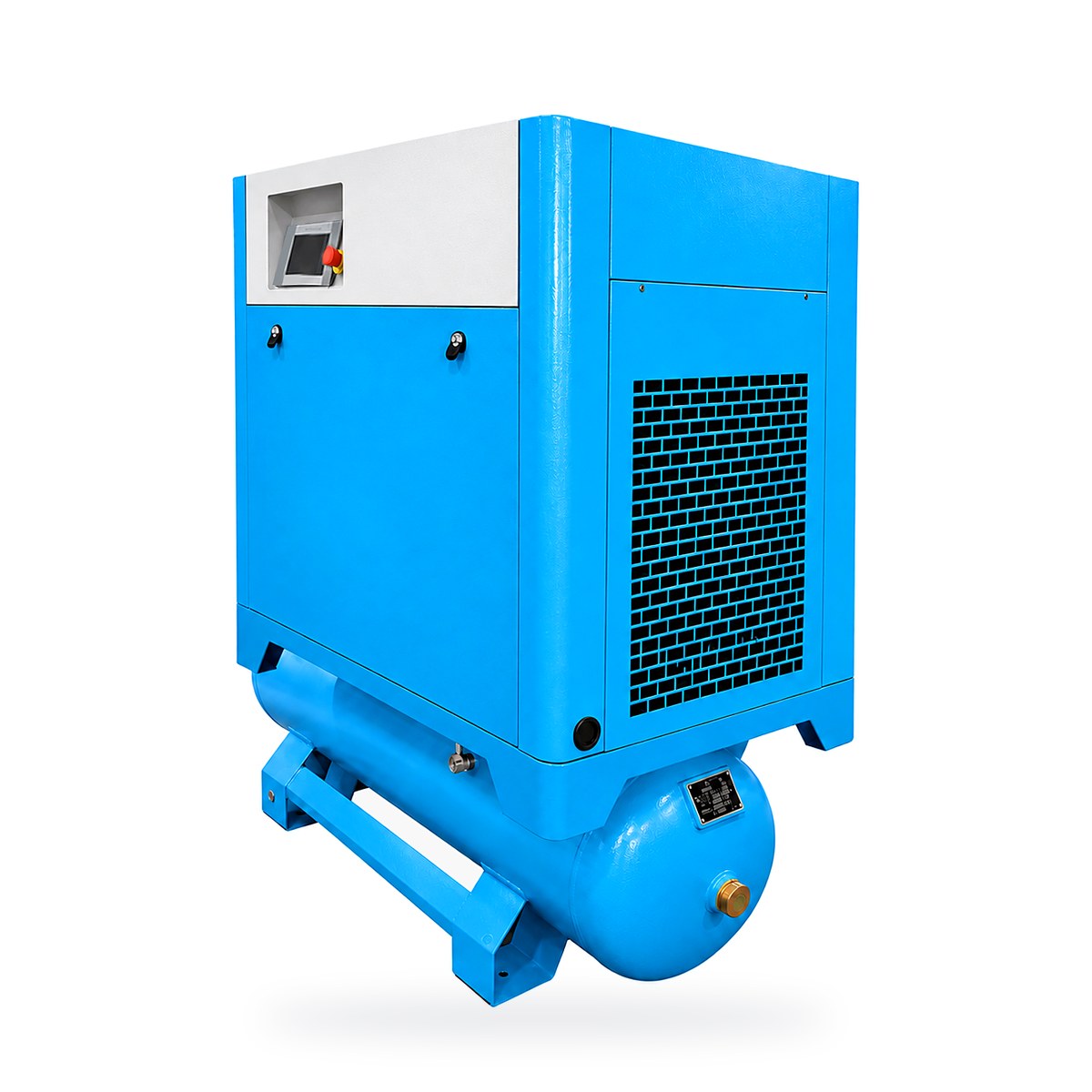

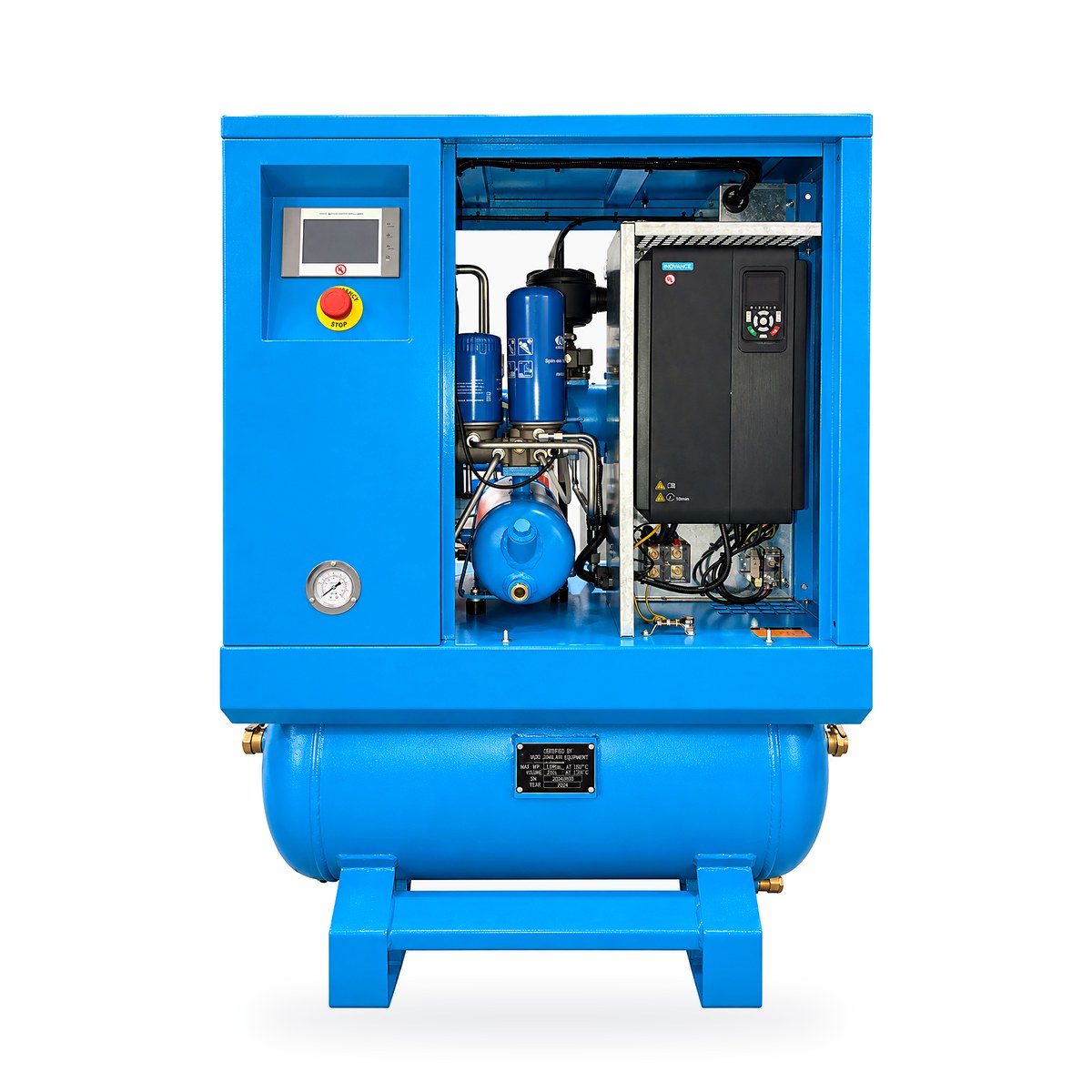

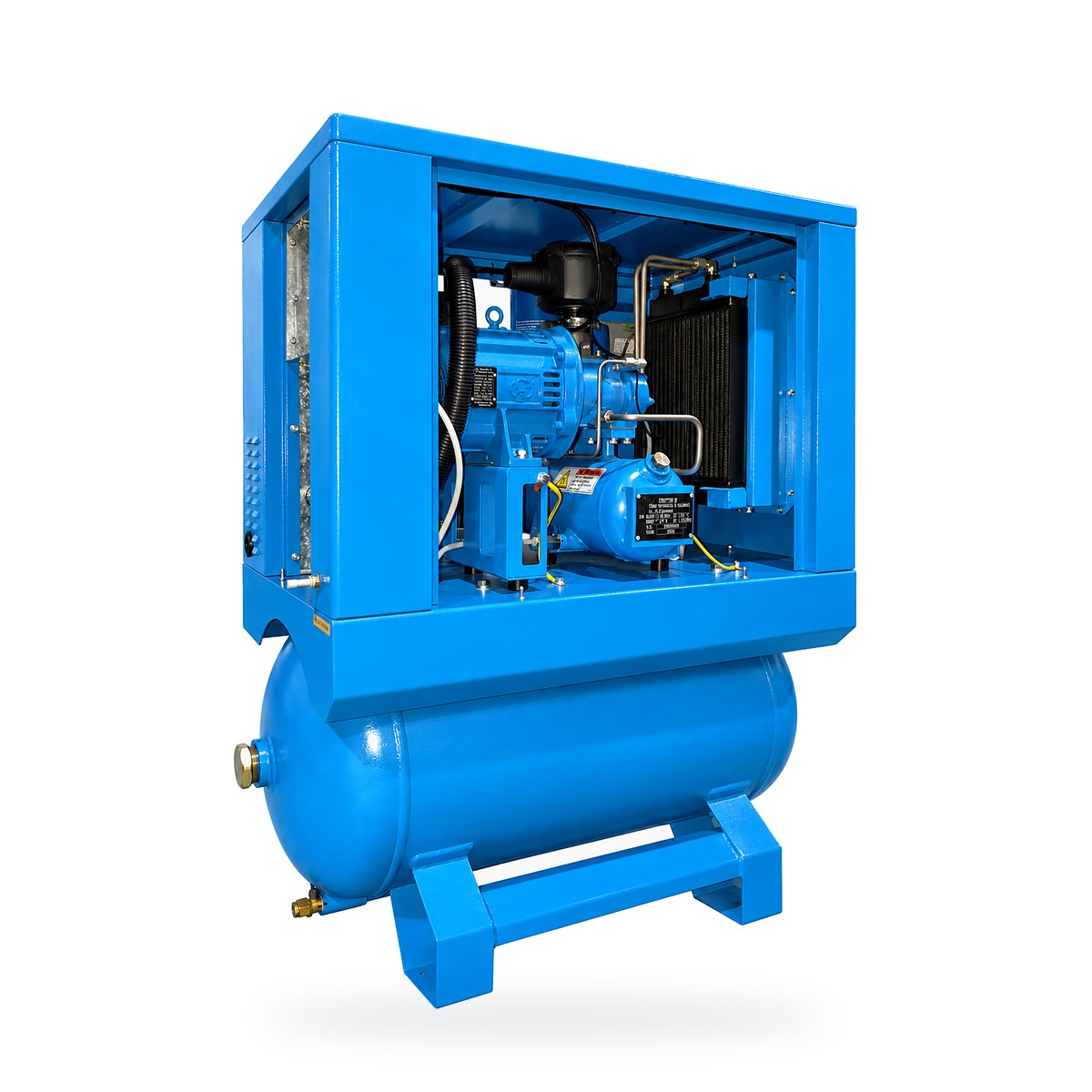

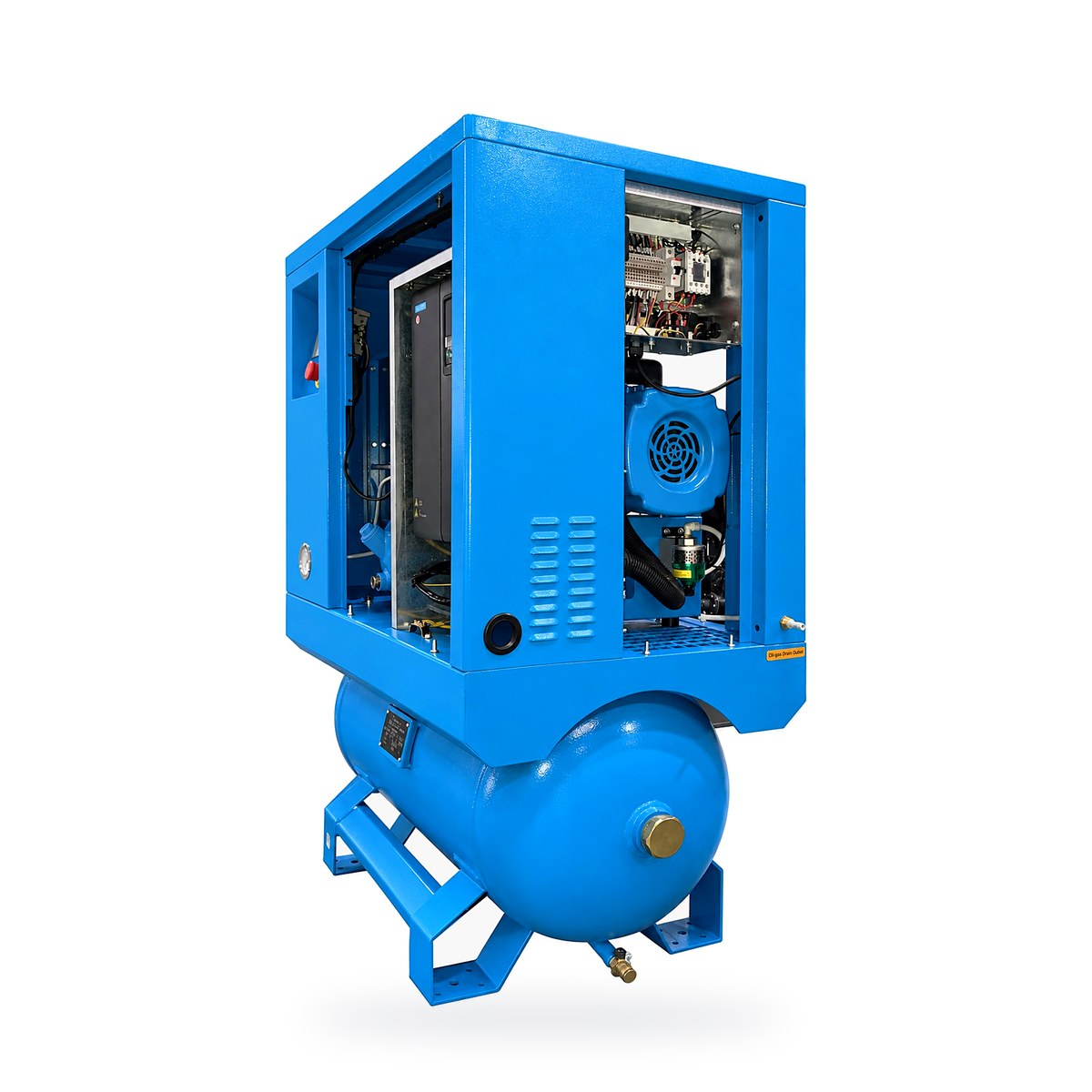

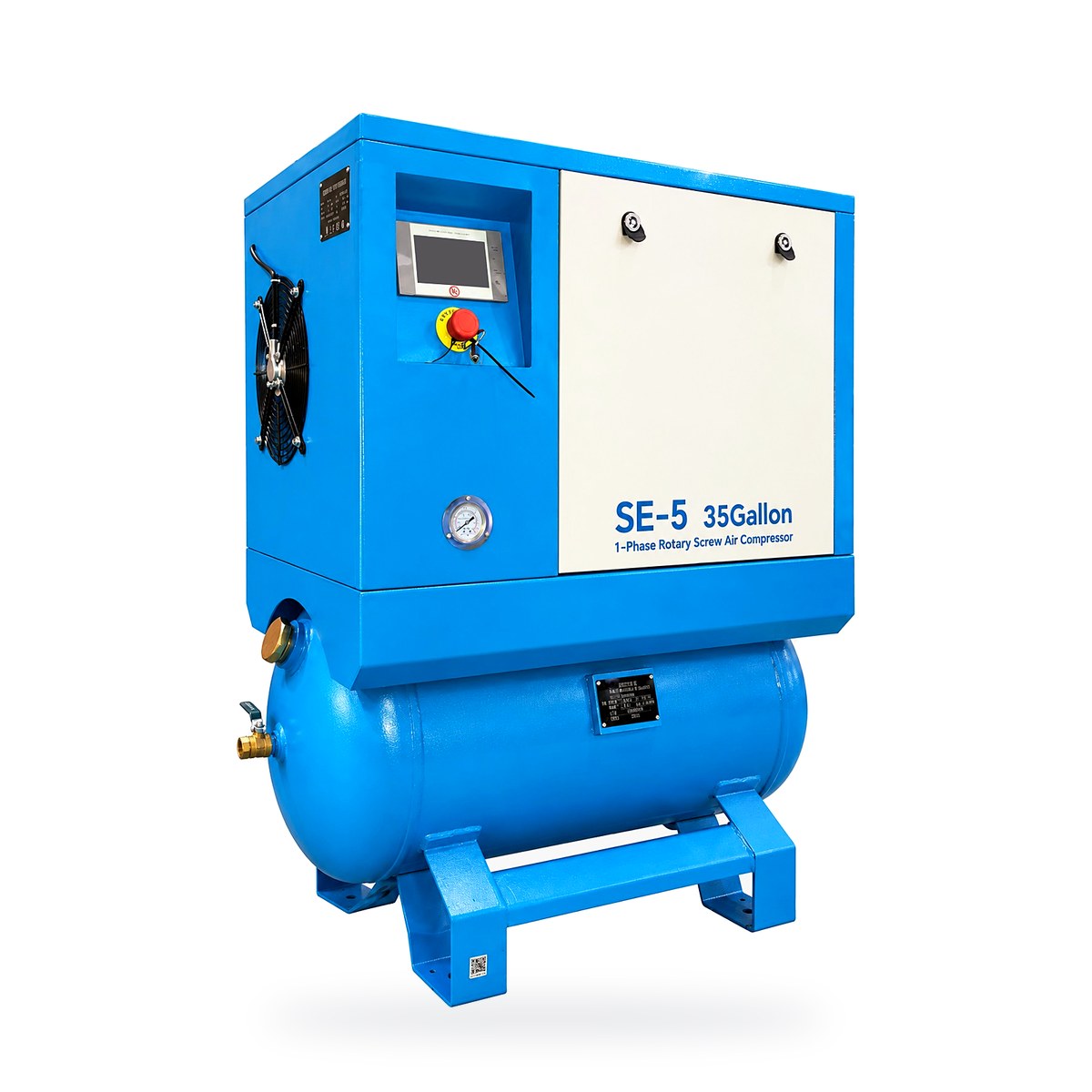

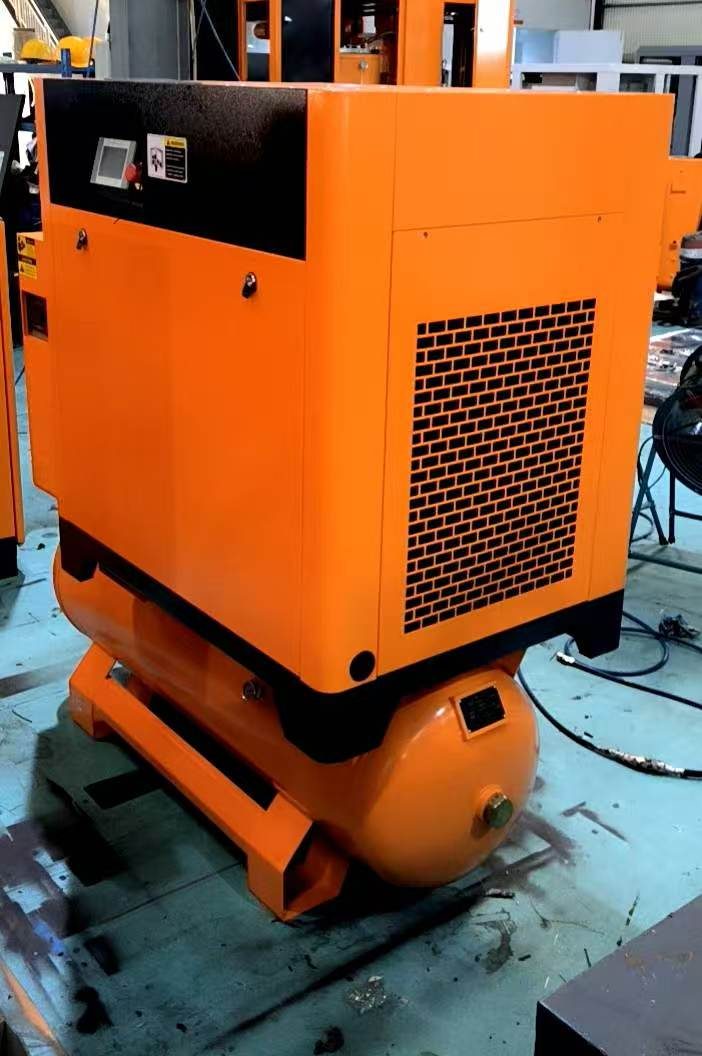

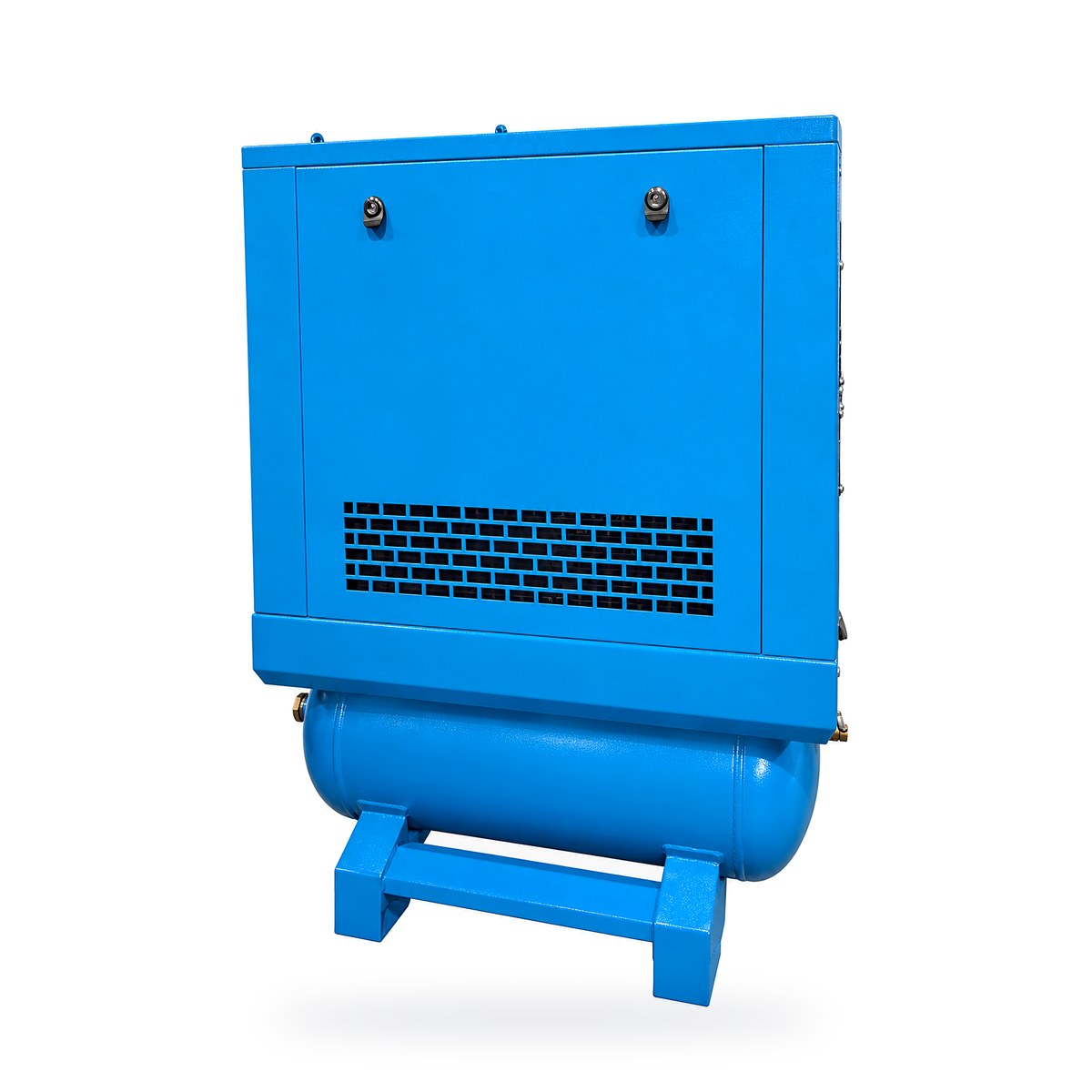

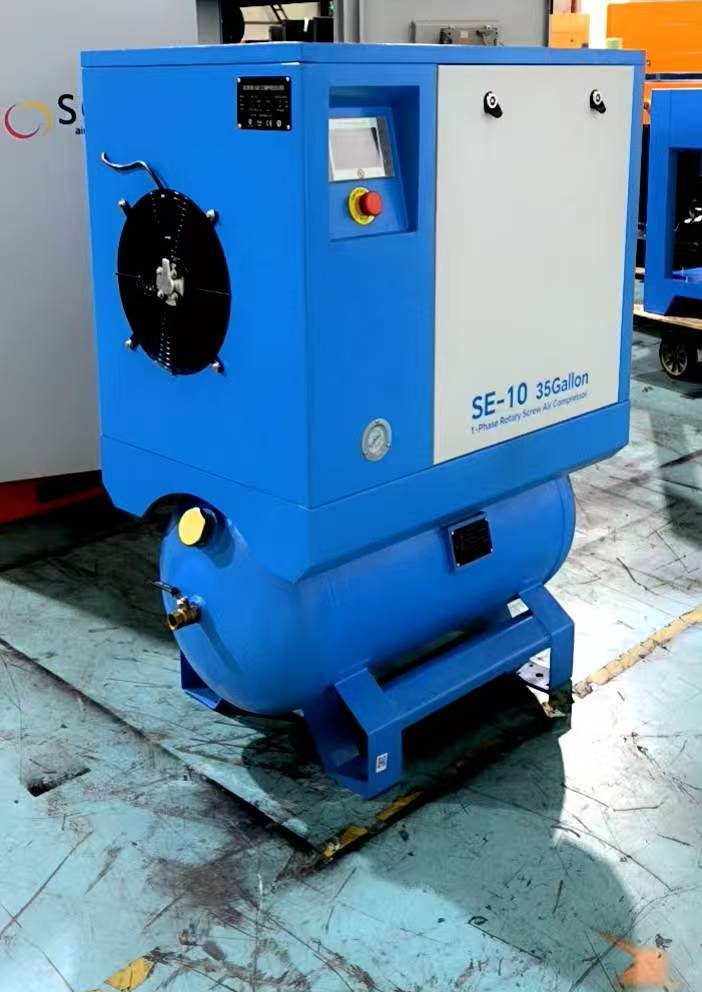

Compact, tank-mounted permanent magnet VSD compressor with an IE4 motor for single-phase 208–240 V supplies (wide 170–264 V input) and a soft VFD start. A small footprint and plug-and-run design with no separate tank or piping to install make it ideal for woodworking, auto body and other tight spaces.
Permanent magnet VSD, IE4 motor, 35-gallon tank.
Permanent magnet VSD, IE4 motor, 35-gallon tank.

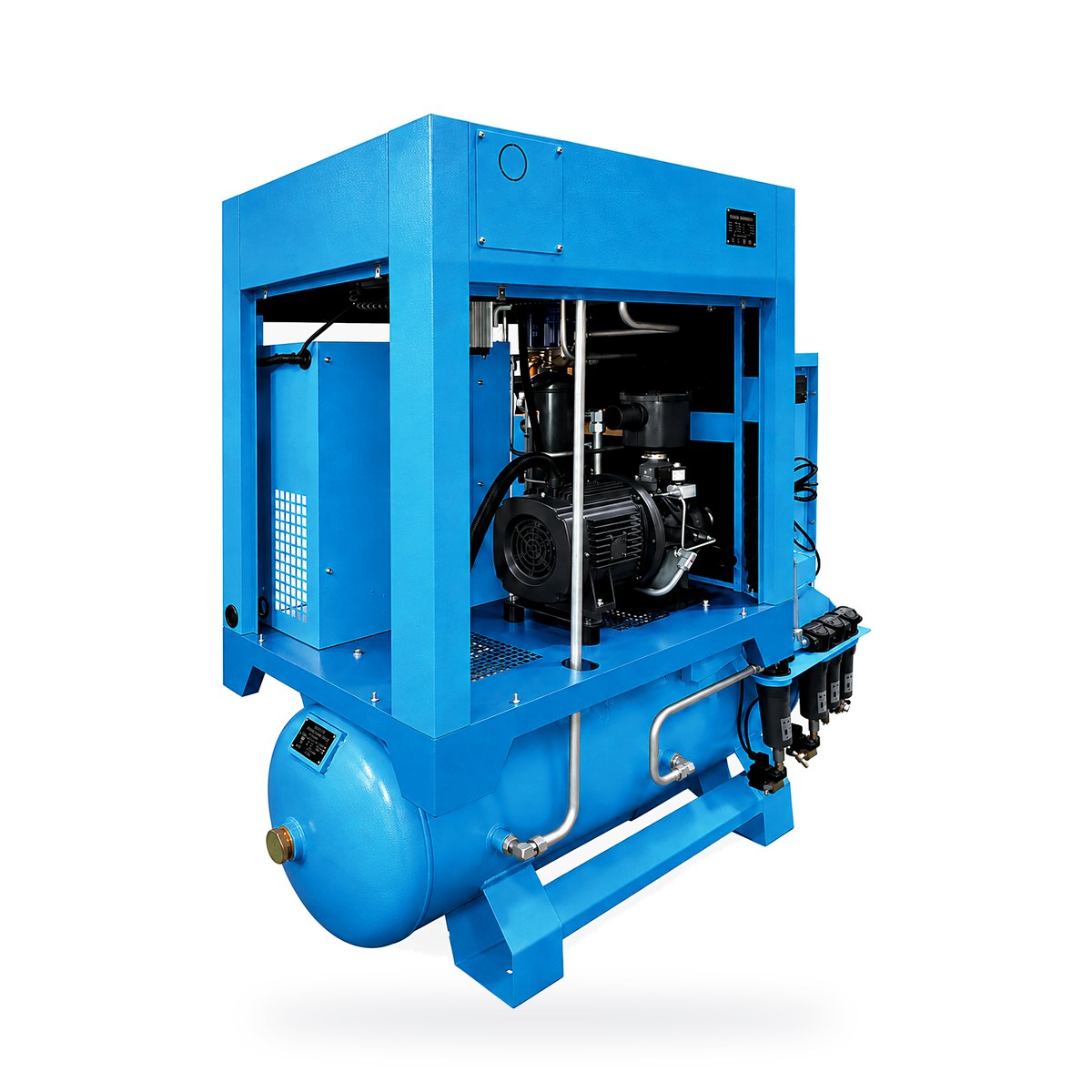

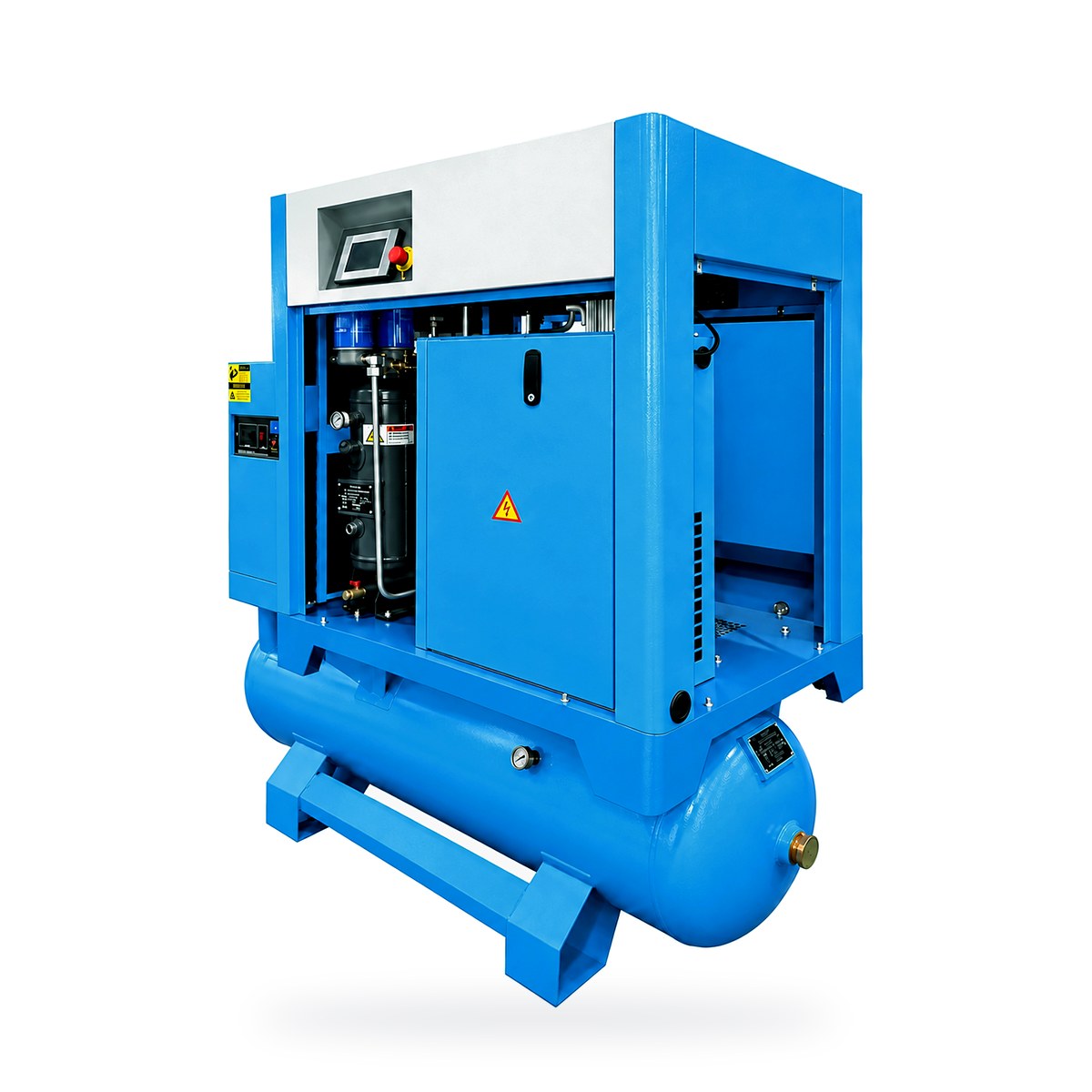

4-in-1 PM VSD

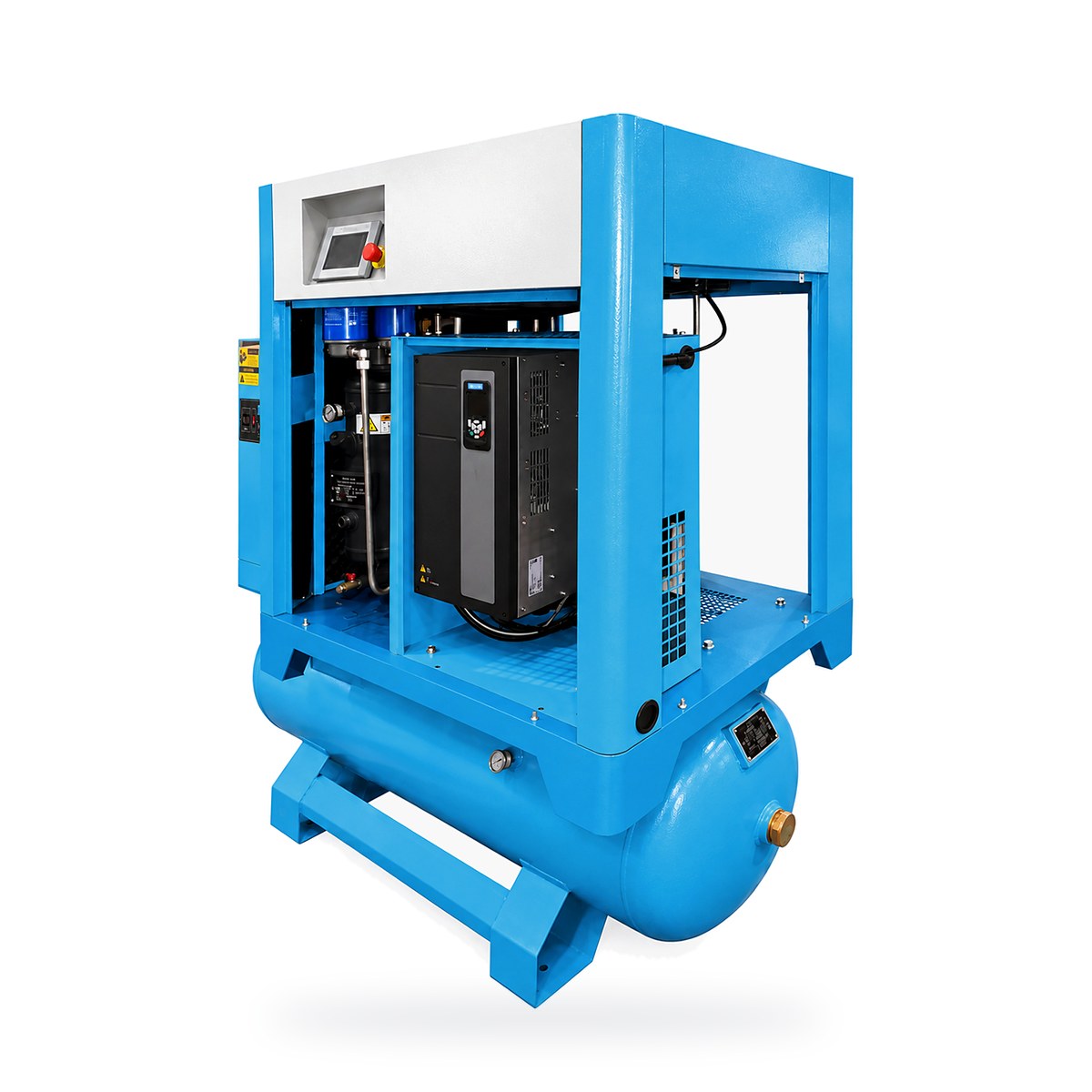

Permanent magnet VSD with an IE4 motor matches air delivery to demand. A 4-in-1 package — compressor, 300 L (≈80 gal) receiver, refrigerated dryer and precision filters — that is ready to run as soon as it is powered: clean, dry air (pressure dew point 35–50 °F / 2–10 °C, filtration to 0.01 µm) with no extra piping or separate air treatment to install.
Permanent magnet VSD, IE4 motor, 4-in-1.
Power it up and you have clean, dry compressed air at the outlet. The integrated refrigerated dryer and precision filters remove moisture and particles down to 0.01 µm, and the large receiver keeps supply pressure steady.

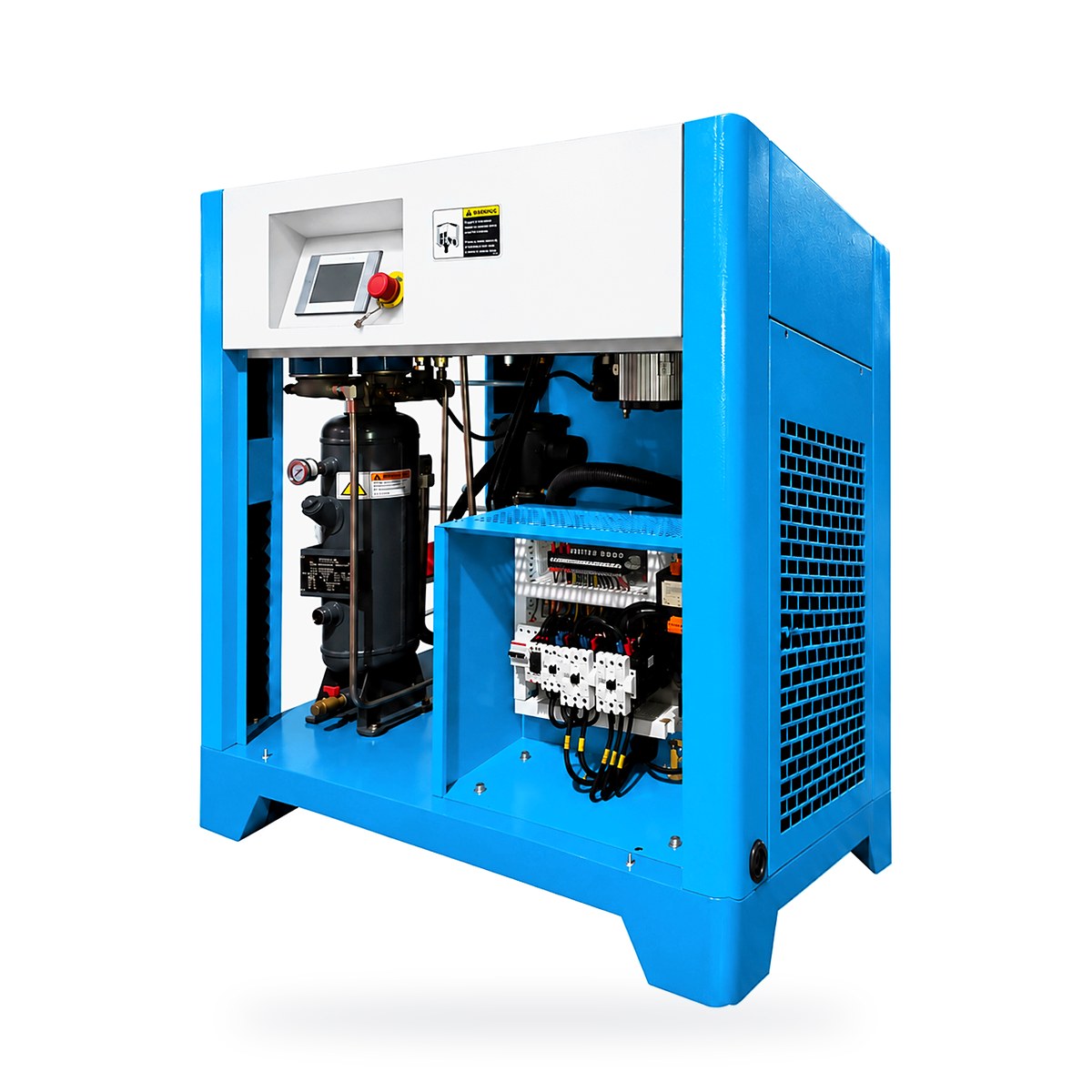

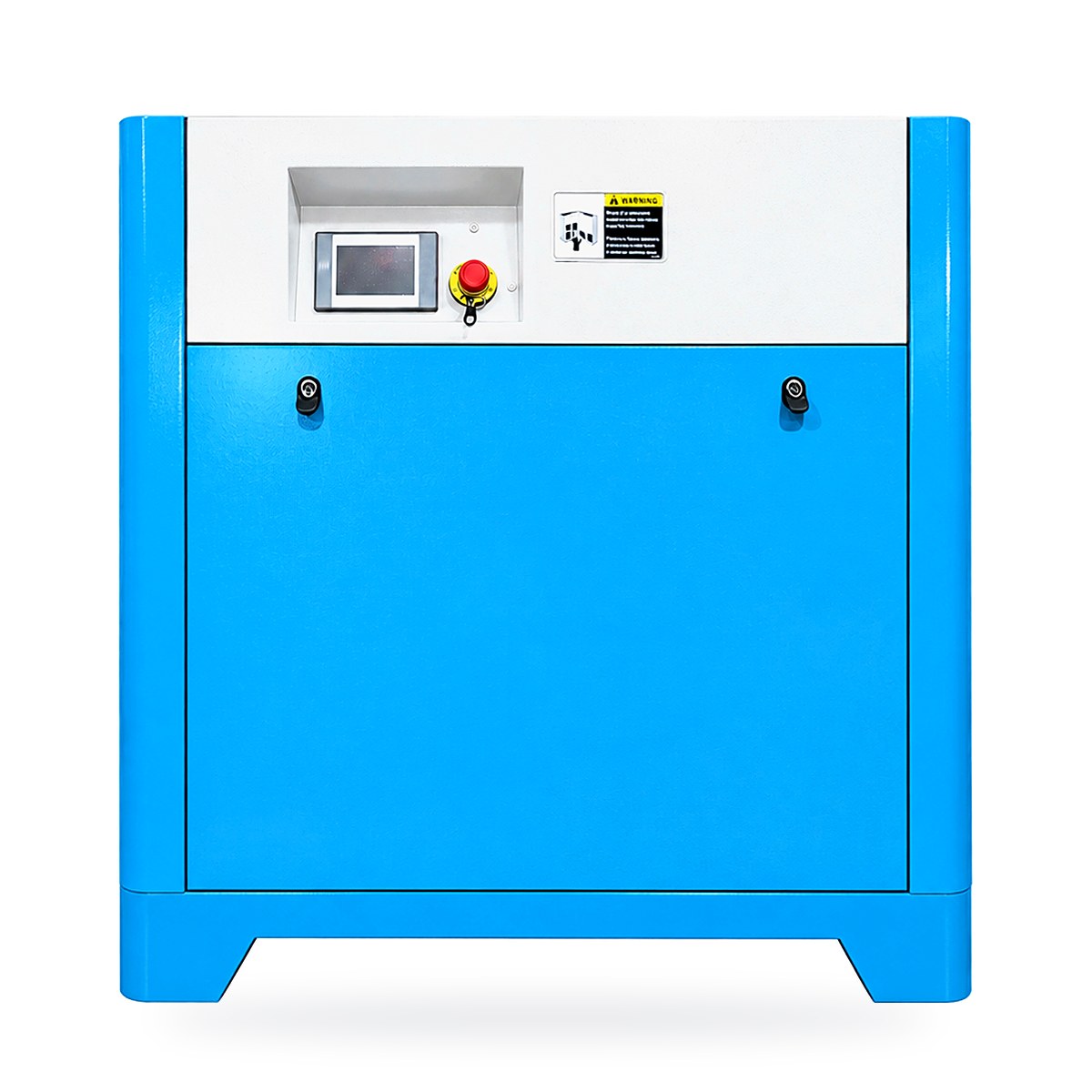

Fixed speed · direct drive
IE3 induction motor with simple, highly reliable controls and star-delta reduced-voltage starting to limit inrush current. Direct drive for higher transmission efficiency; the IP55 motor suits demanding, dusty workshop conditions. Easy to maintain with low-cost parts.
IE3 motor, direct drive, star-delta start.
IE3 motor, direct drive, star-delta start.

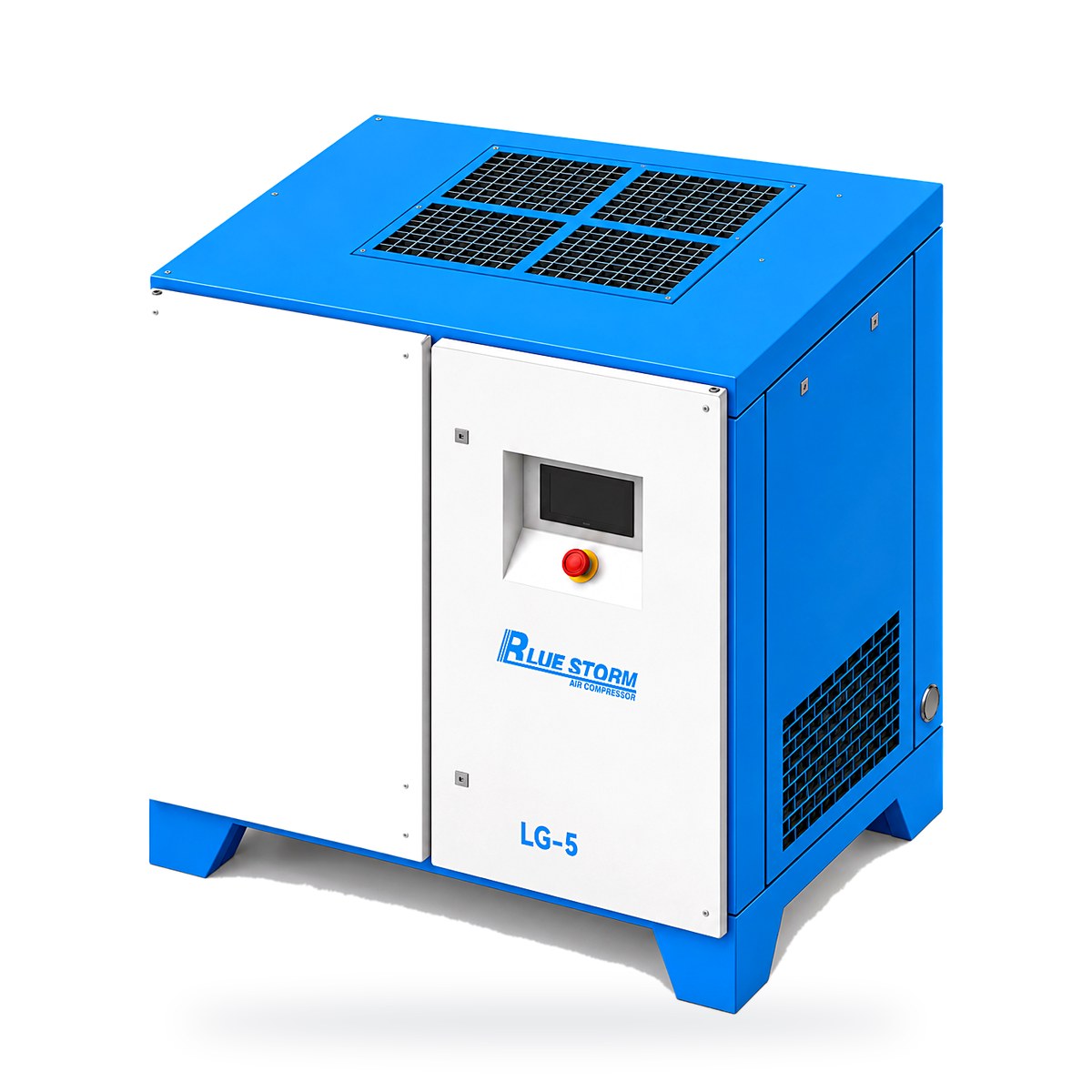

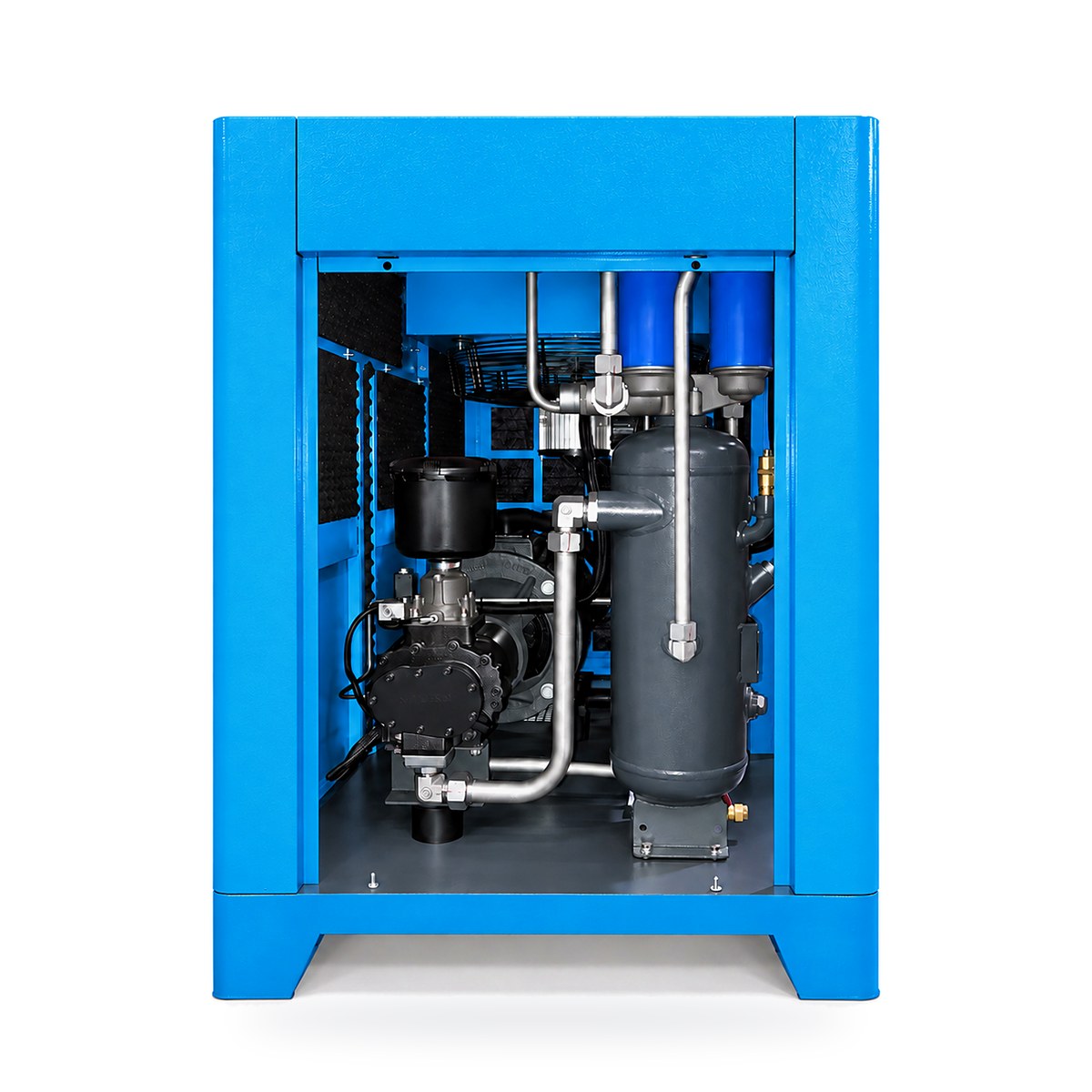

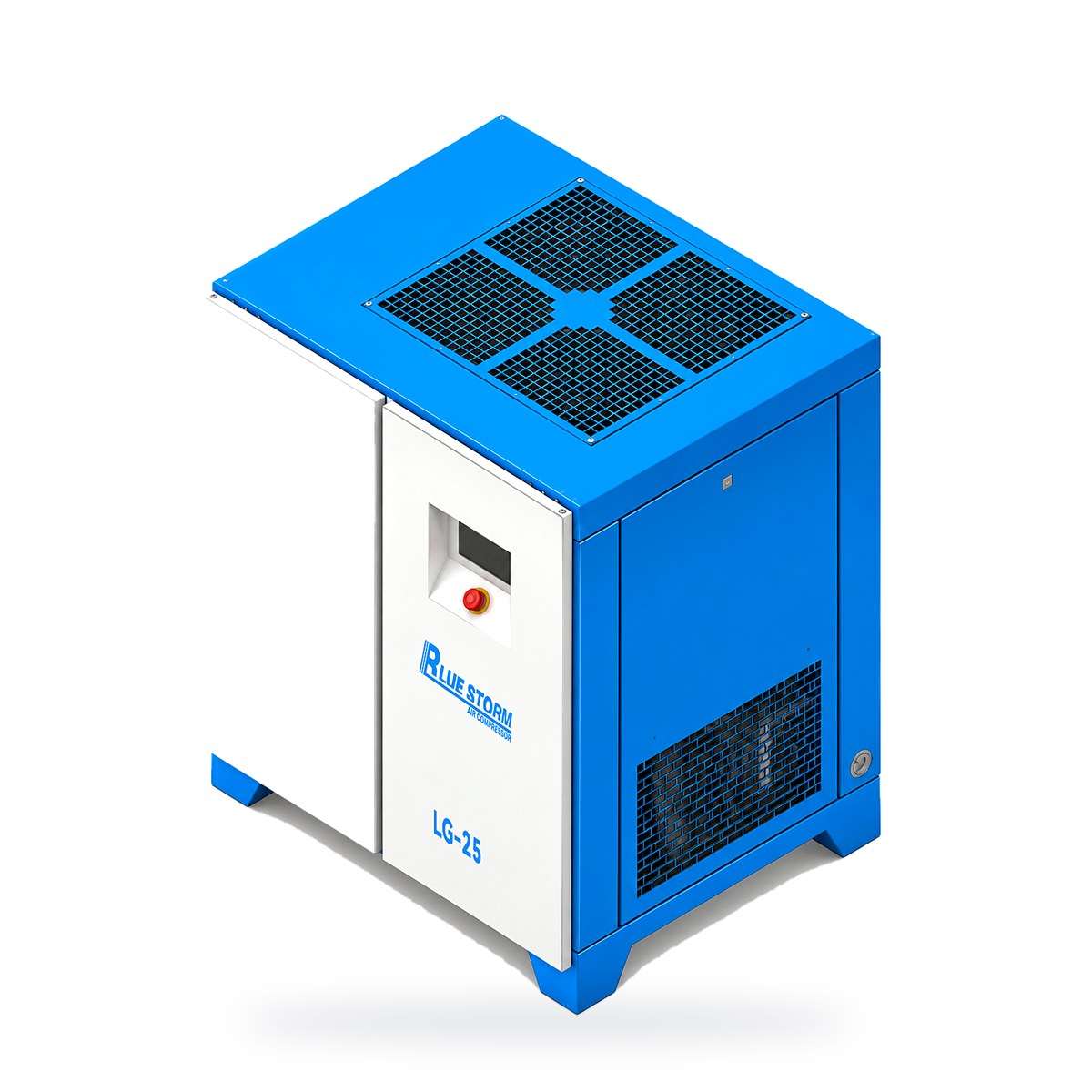

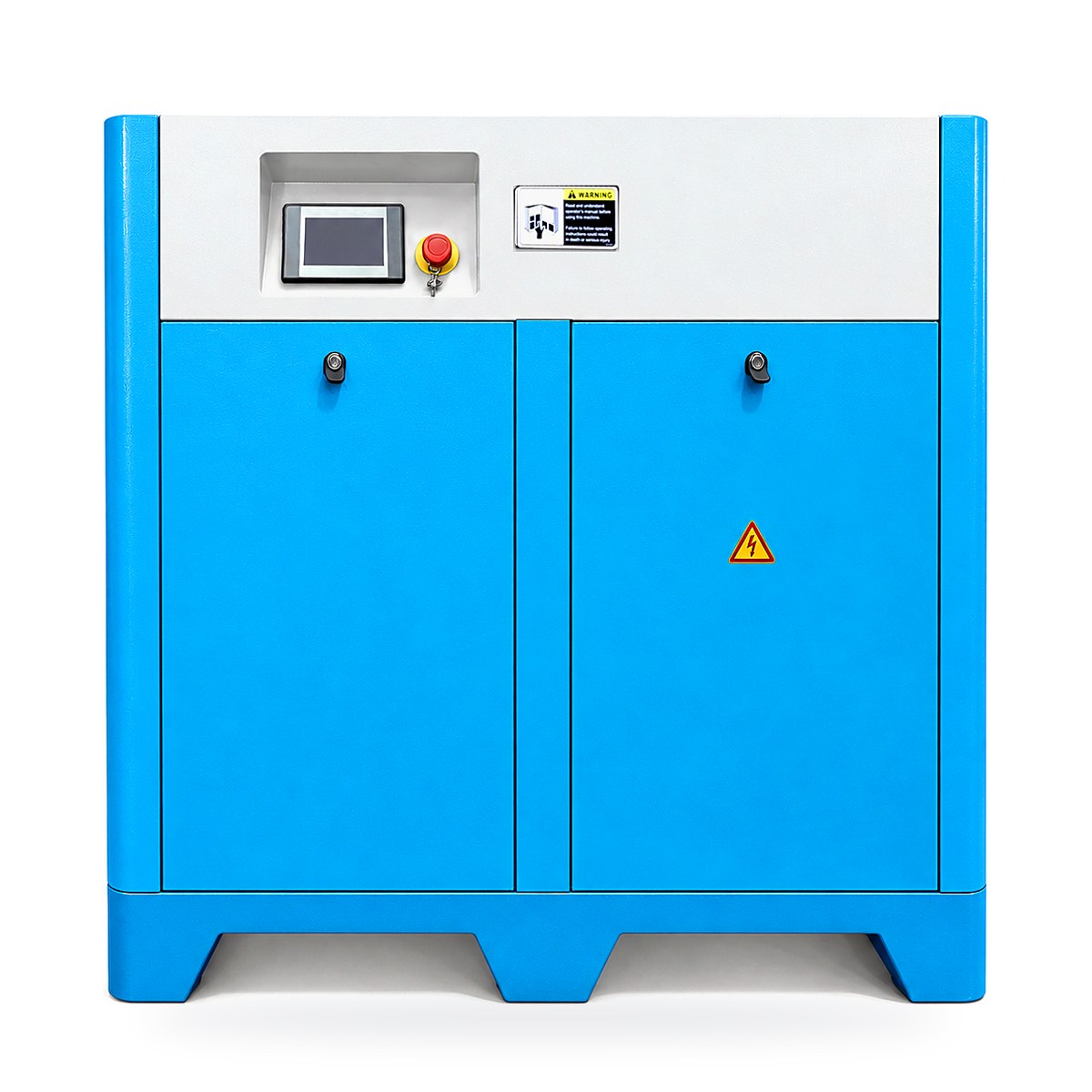

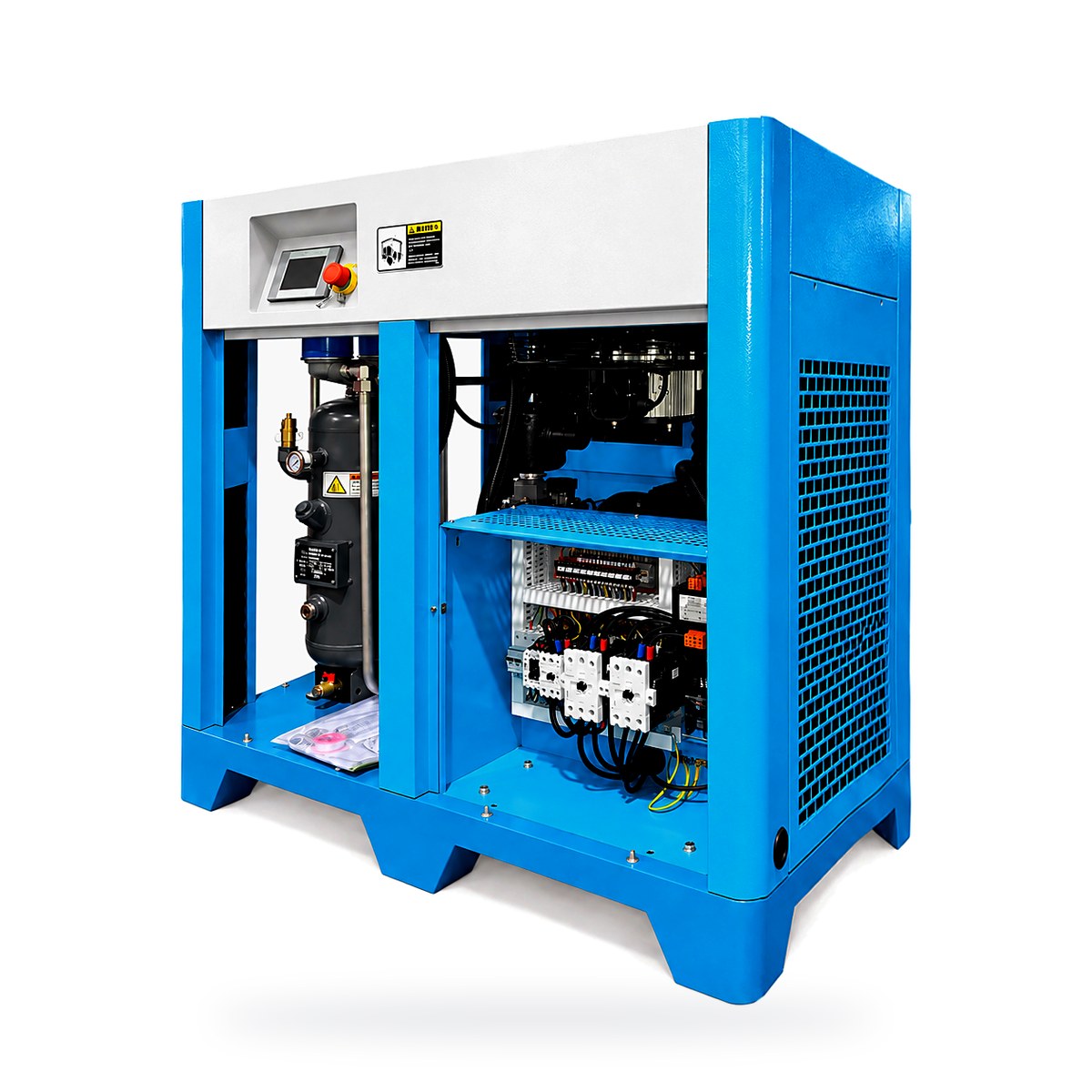

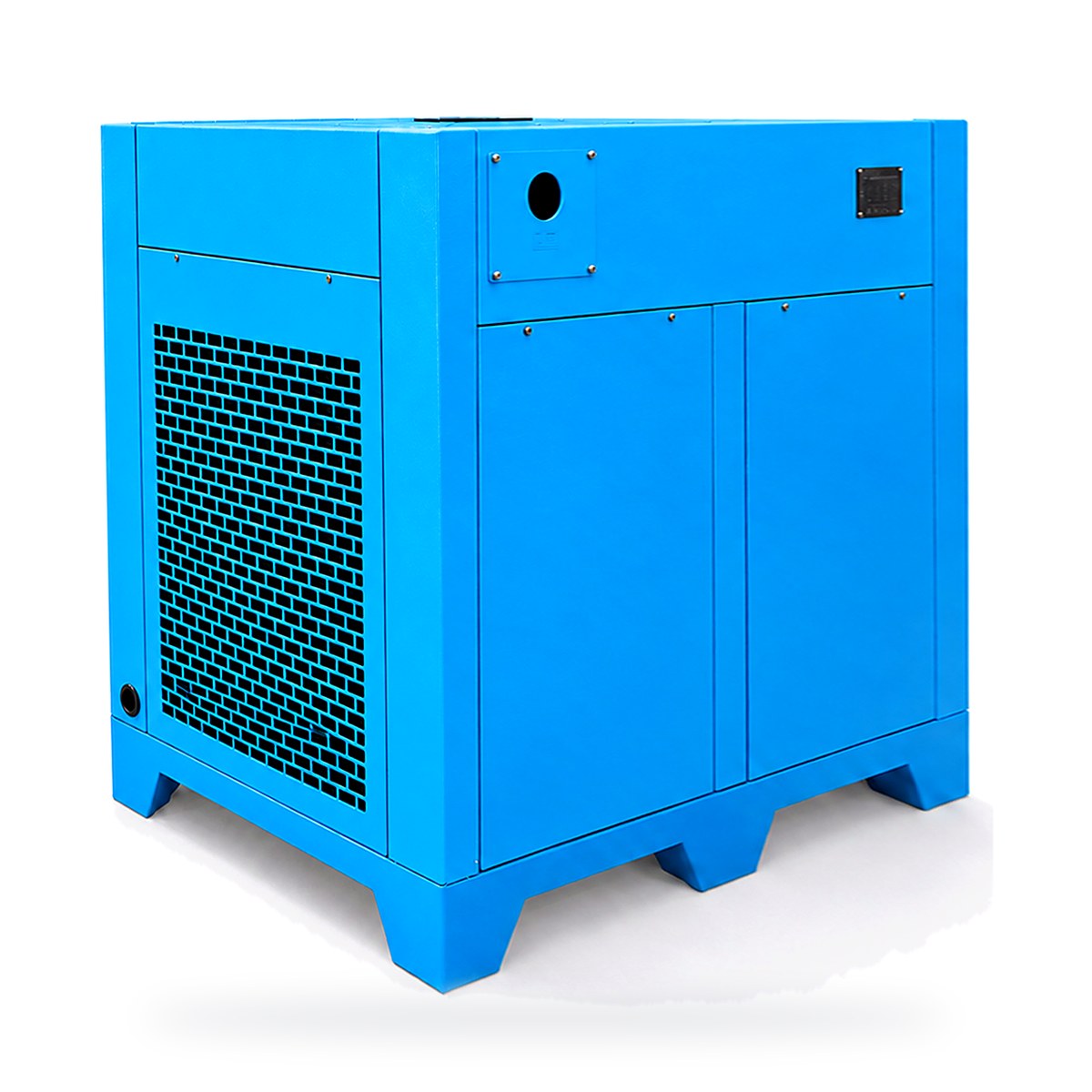

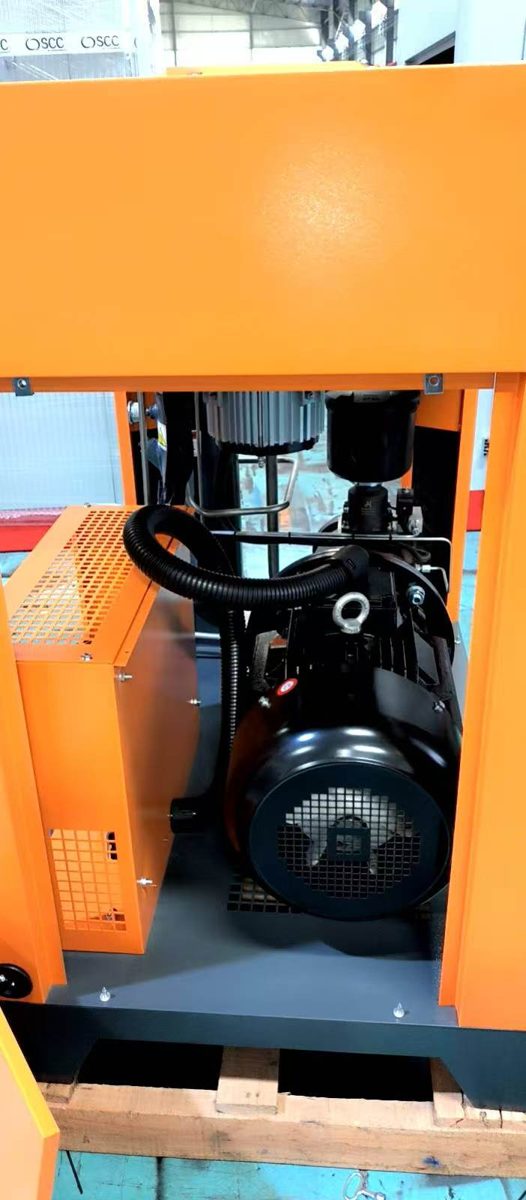

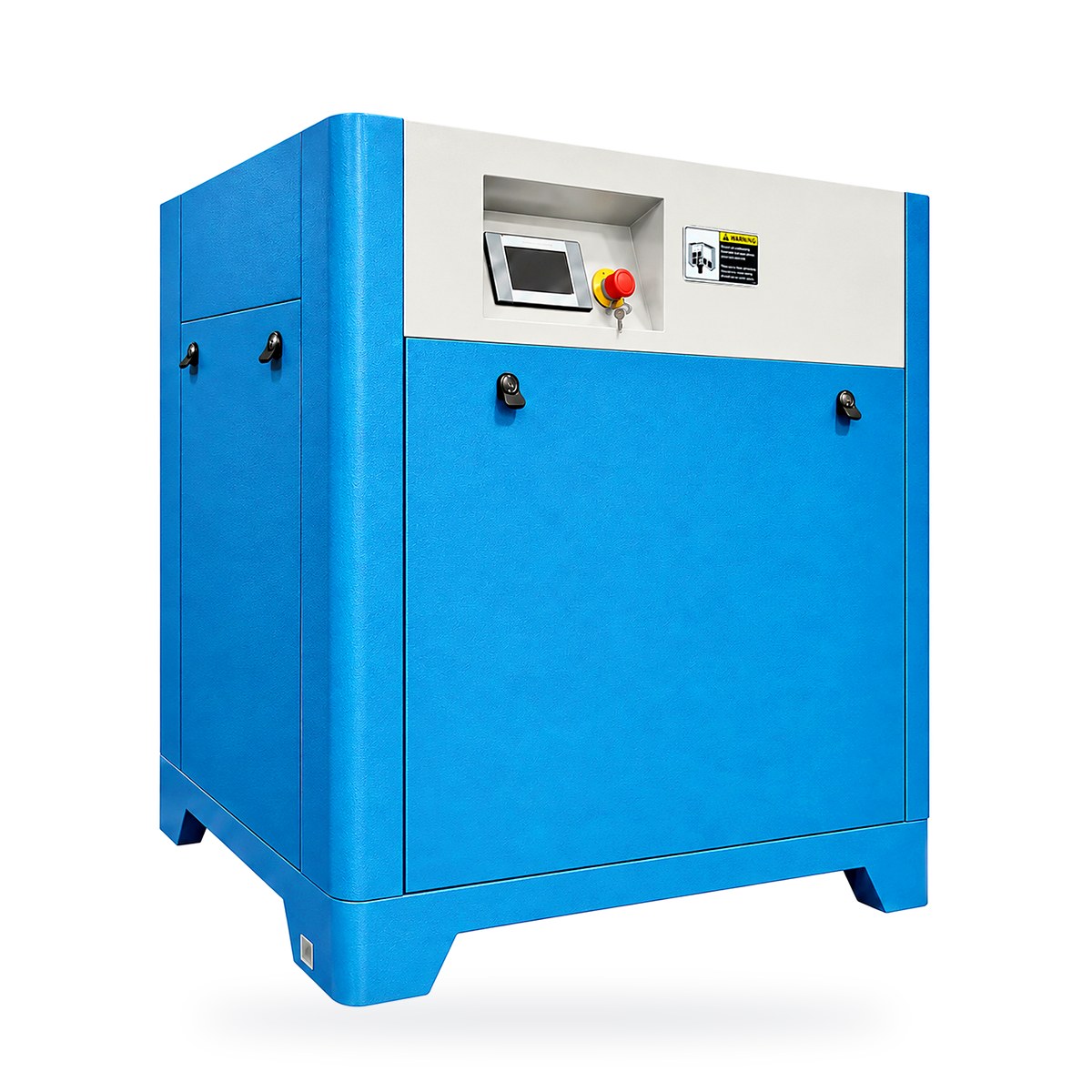

Fixed speed · NEMA belt drive
NEMA-standard IE3 induction motor with star-delta starting (direct-on-line on single-phase units) to limit inrush current. Belt drive lets you set the working pressure anywhere from 116 to 174 psi (8–12 bar) by changing the pulley; ships set to 116 psi. Common motor parts keep maintenance costs low — built for US workshops and service bays.
IE3 motor, NEMA belt drive, fixed speed.
IE3 motor, NEMA belt drive, fixed speed.
IE3 motor, NEMA belt drive, fixed speed.
IE3 motor, NEMA belt drive, fixed speed.
IE3 motor, NEMA belt drive, fixed speed.
IE3 motor, NEMA belt drive, fixed speed.
IE3 motor, NEMA belt drive, fixed speed.
IE3 motor, NEMA belt drive, fixed speed.
IE3 motor, NEMA belt drive, fixed speed.
| Model | HP / kW | Power supply (60 Hz) | CFM @ 116 psi | CFM @ 125 psi | CFM @ 145 psi | CFM @ 174 psi | Noise dBA @ 1 m | Outlet | L×W×H (in) | Oil |
|---|---|---|---|---|---|---|---|---|---|---|
| LG-5 | 5 / 3.7 | 208–230/460 V 3 ph · 208–230 V 1 ph | 17 | 16.2 | 14.5 | 10.2 | 68 ±2 | 1/2" NPT | 39.4 × 29.1 × 40.9 | 3 L |
| LG-7.5 | 7.5 / 5.5 | 208–230/460 V 3 ph · 208–230 V 1 ph | 25.4 | 24.7 | 20.8 | 16.2 | 68 ±2 | 1/2" NPT | 39.4 × 29.1 × 40.9 | 3 L |

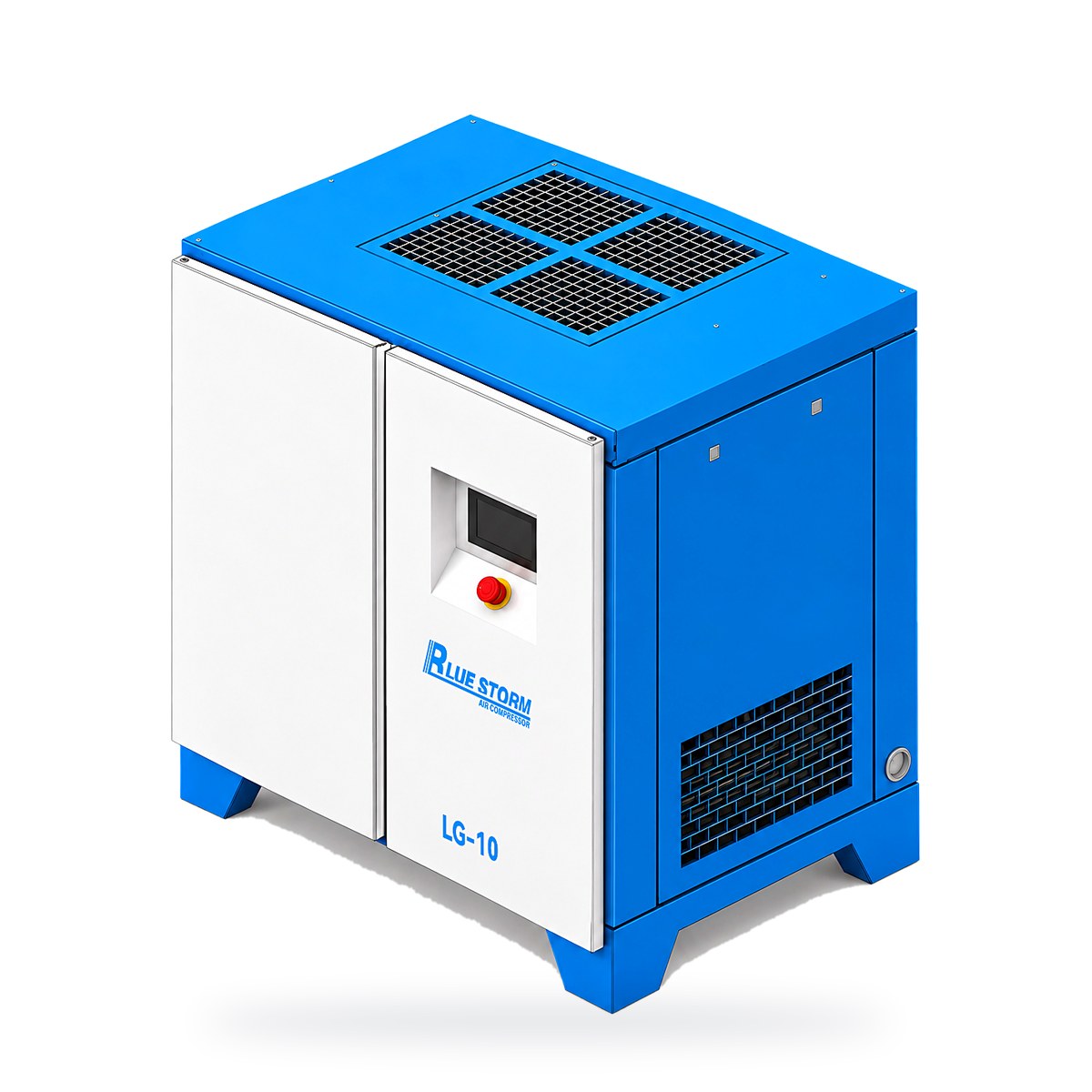

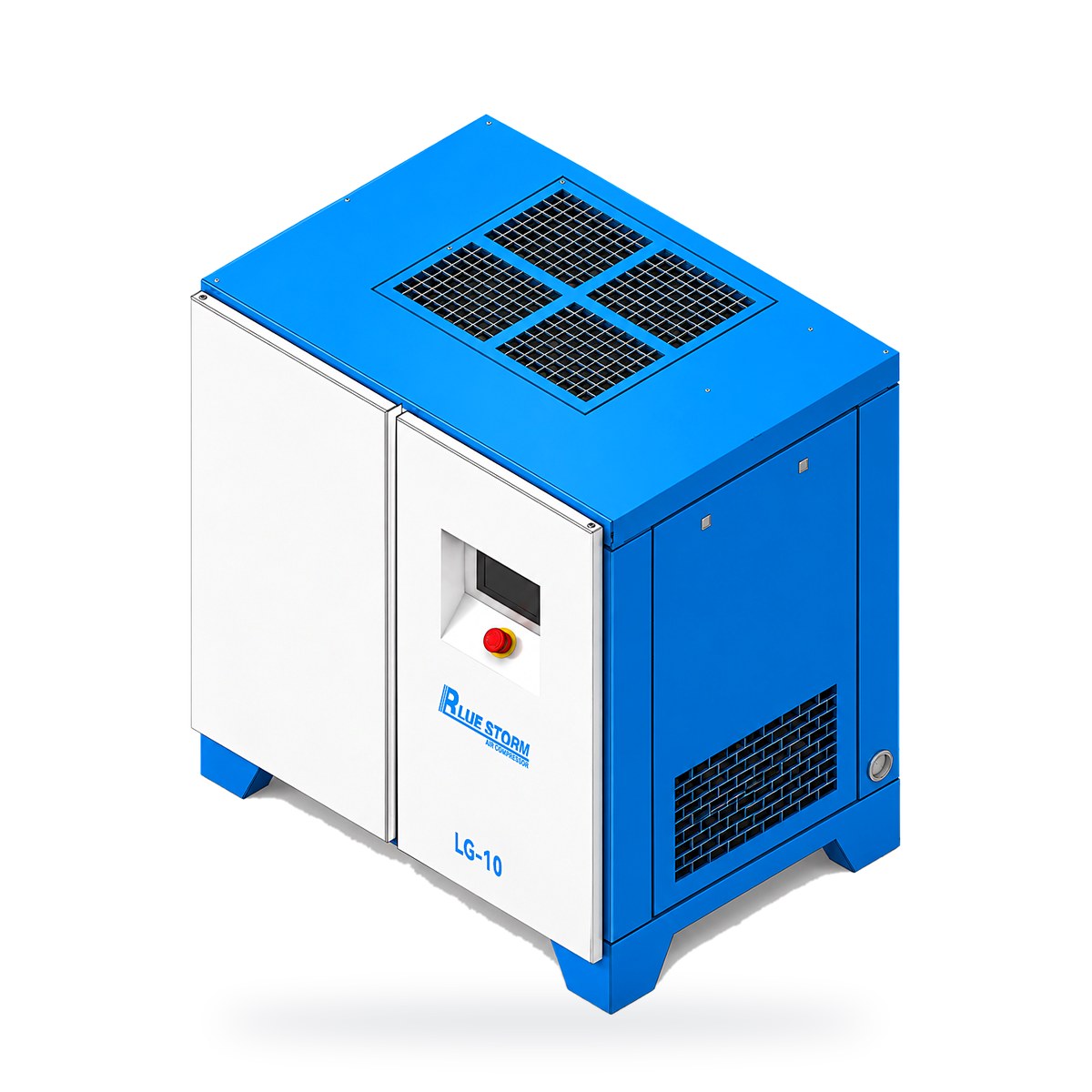

| LG-10 | 10 / 7.5 | 208–230/460 V 3 ph · 208–230 V 1 ph | 32.8 | 32.5 | 26.1 | 21.5 | 68 ±2 | 1/2" NPT | 39.4 × 29.1 × 40.9 | 3 L |
| LG-15 | 15 / 11 | 208–230/460 V 3 ph | 58.3 | 57.9 | 49.1 | 38.1 | 72 ±2 | 3/4" NPT | 41.1 × 33.0 × 46.9 | 5 L |

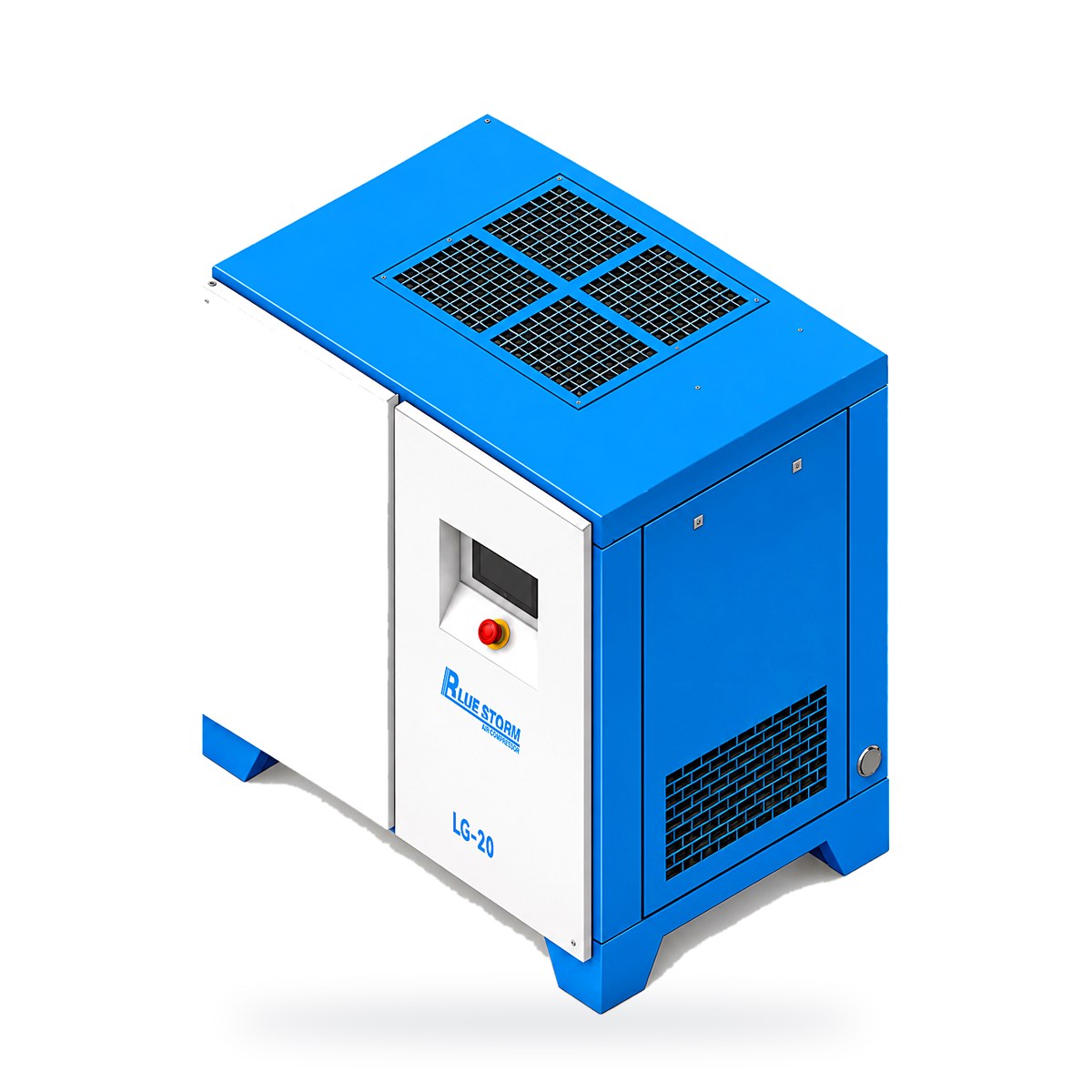

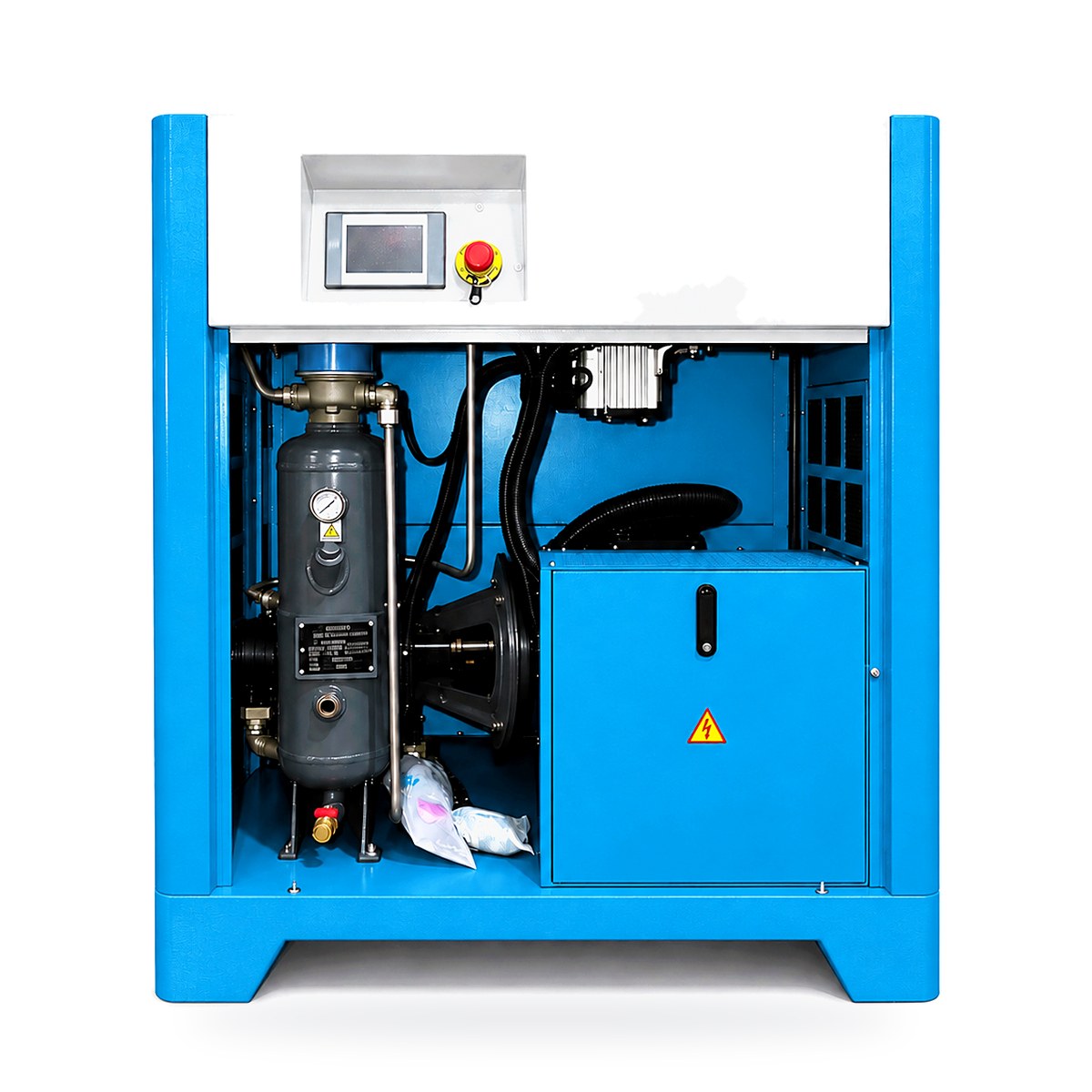

| LG-20 | 20 / 15 | 208–230/460 V 3 ph | 69.6 | 68.9 | 61.8 | 56.2 | 72 ±2 | 3/4" NPT | 41.1 × 33.0 × 46.9 | 5 L |

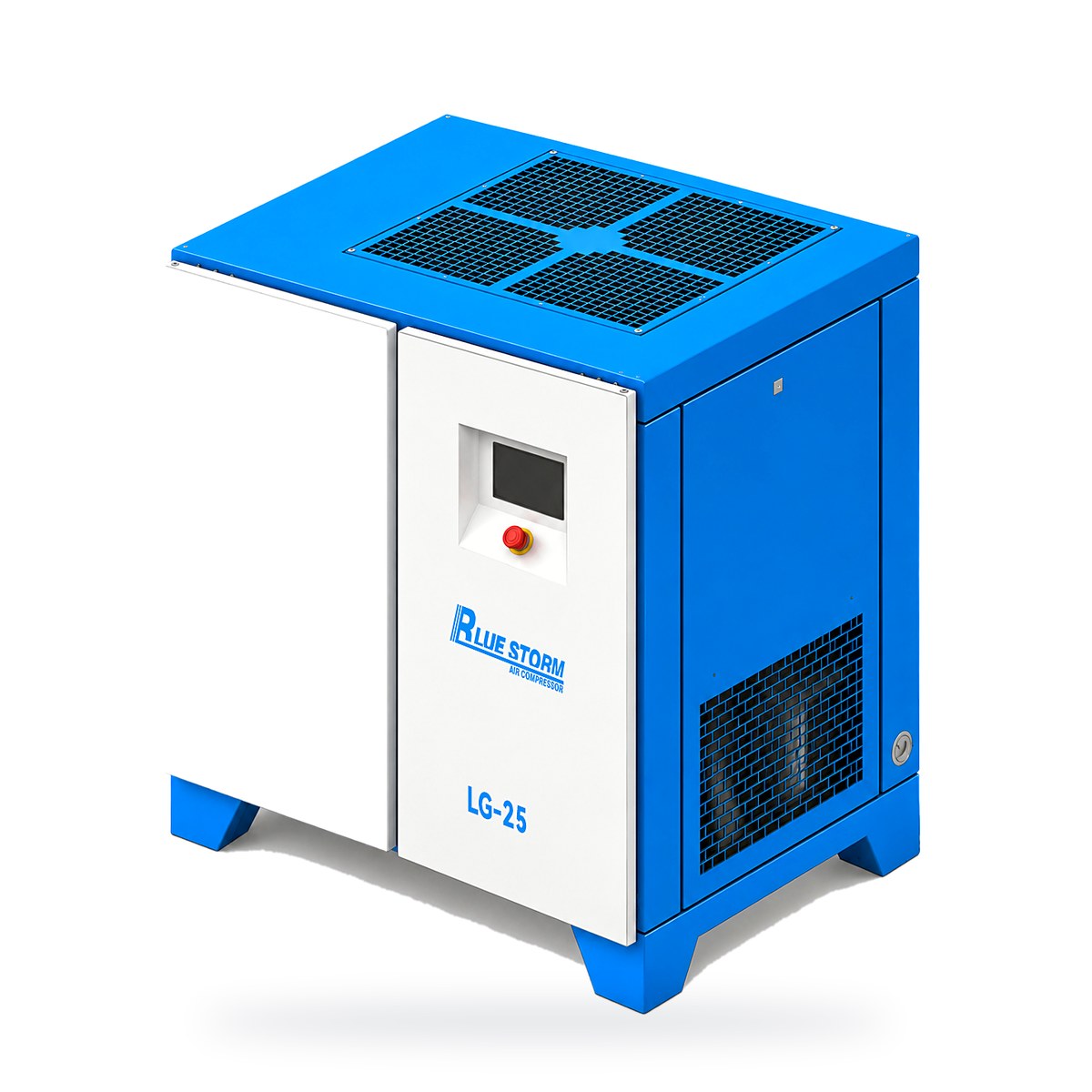

| LG-25 | 25 / 18.5 | 208–230/460 V 3 ph | 100.6 | 100.3 | 91.1 | 76.6 | 75 ±3 | 1" NPT | 45.1 × 35.7 × 54.0 | 10 L |

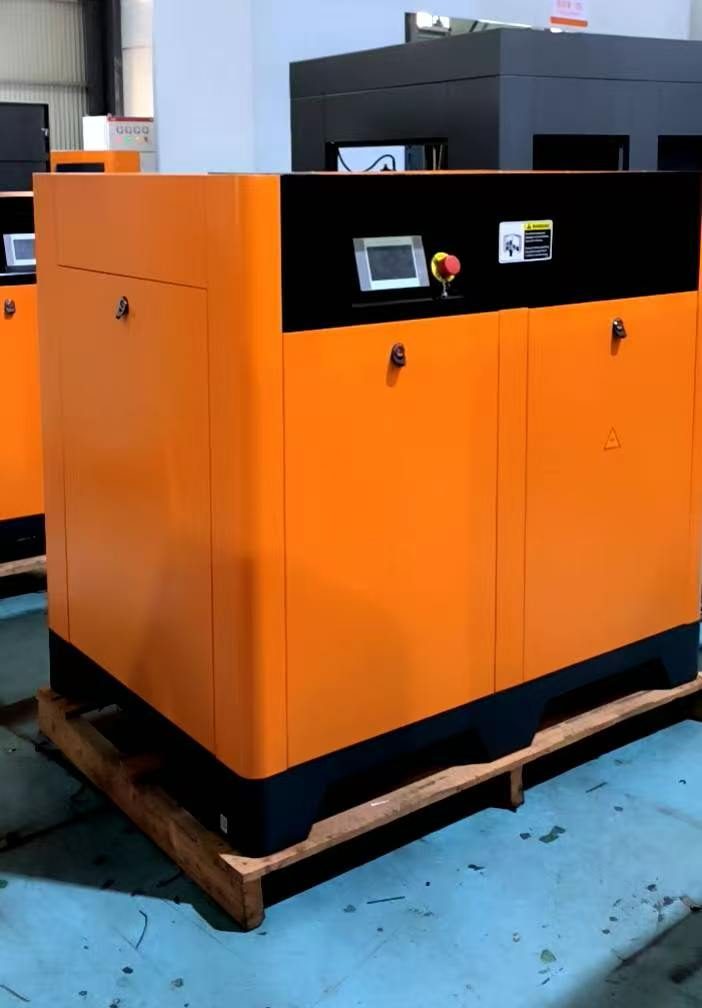

| LG-30 | 30 / 22 | 208–230/460 V 3 ph | 130 | 129.3 | 105.9 | 96.1 | 78 ±2 | 1" NPT | 45.1 × 35.7 × 54.0 | 10 L |
| LG-40 | 40 / 30 | 208–230/460 V 3 ph | 168.1 | 167.7 | 147.3 | 121.1 | 78 ±2 | 1-1/4" NPT | 58.9 × 45.3 × 61.7 | 16 L |

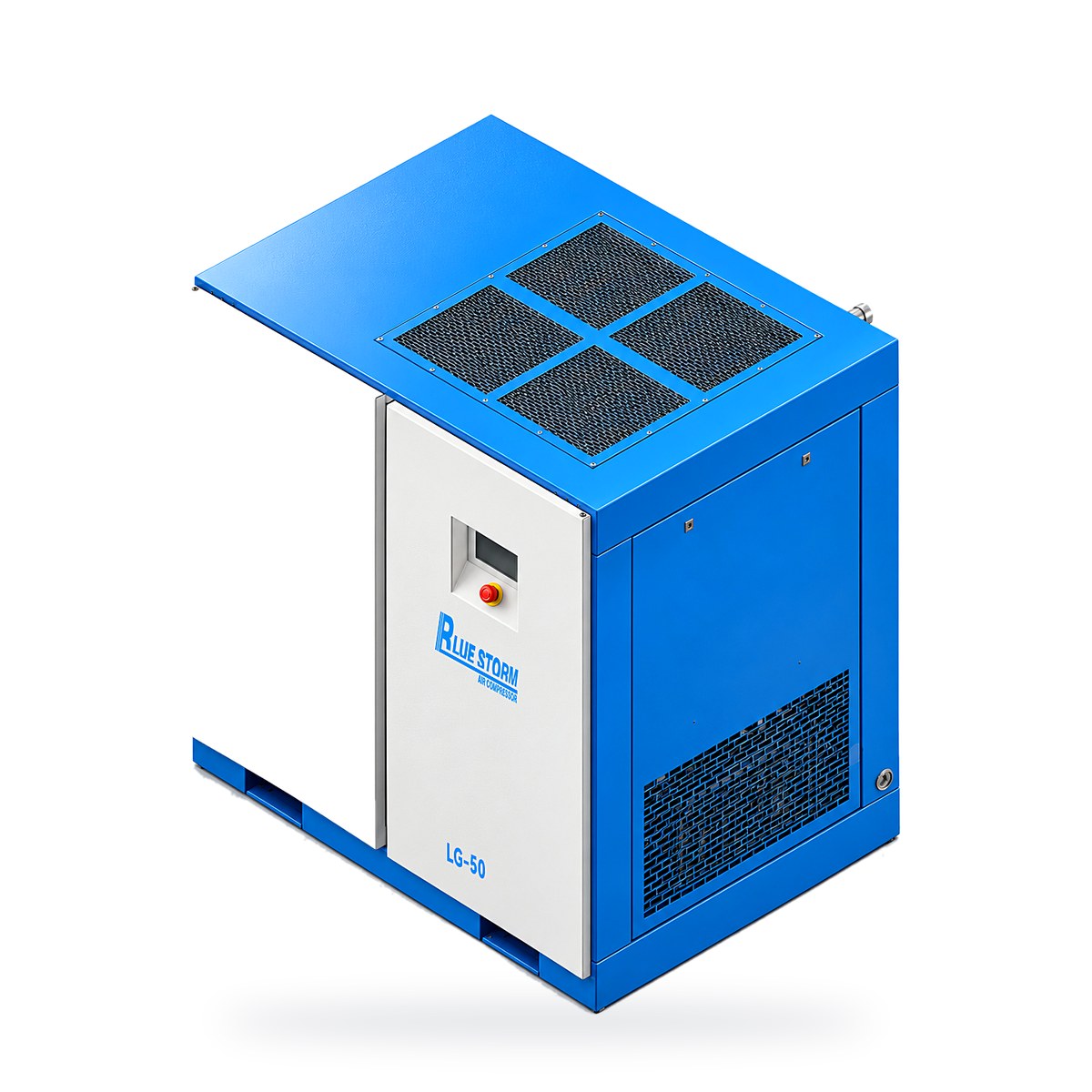

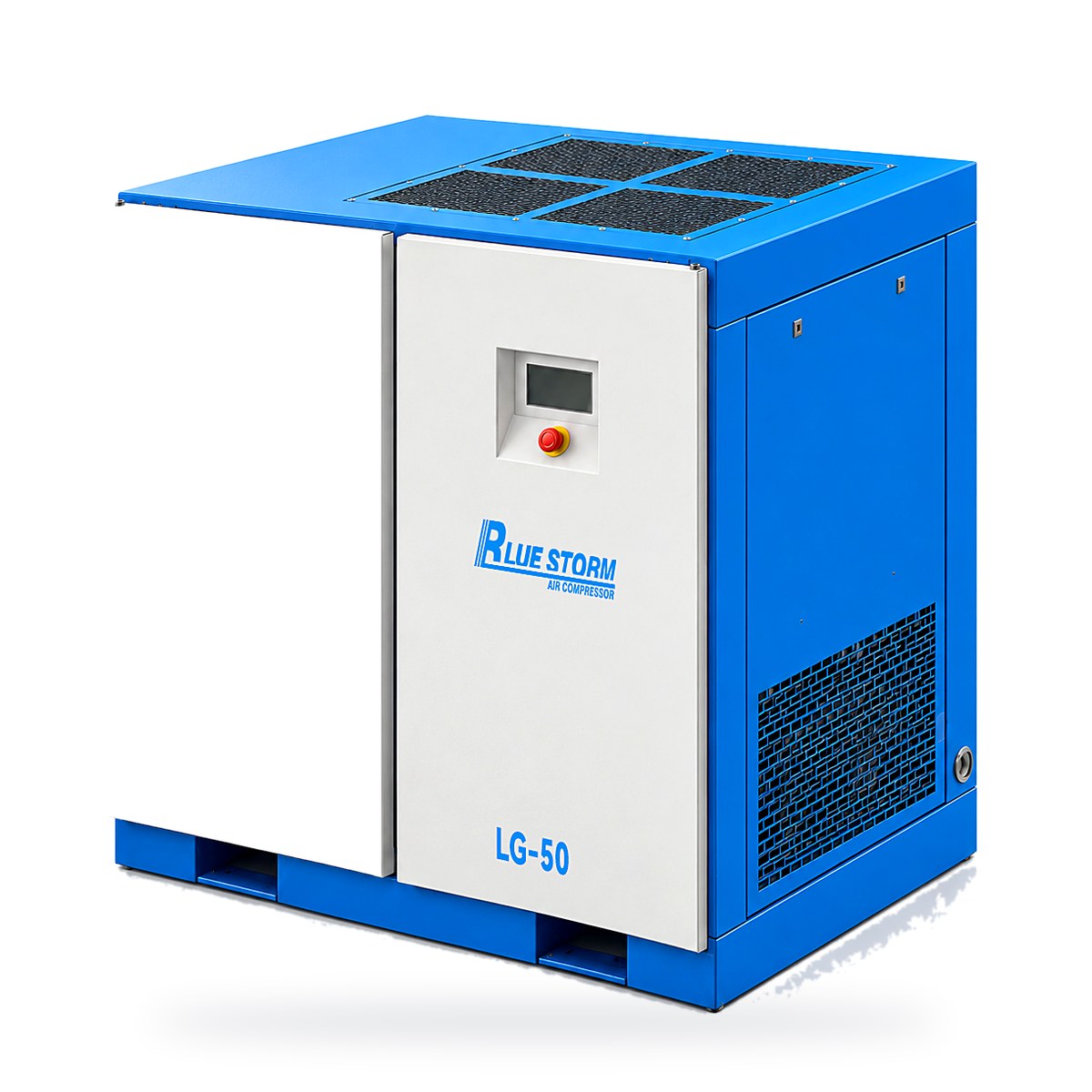

| LG-50 | 50 / 37 | 208–230/460 V 3 ph | 221.1 | 220.7 | 192.1 | 151.9 | 78 ±2 | 1-1/4" NPT | 58.9 × 45.3 × 61.7 | 16 L |
Free air delivery (FAD) at the listed working pressure. Default setting 116 psi (8 bar); pressure is changed by fitting a different pulley. Weight and warranty details: contact sales. Specifications subject to change.

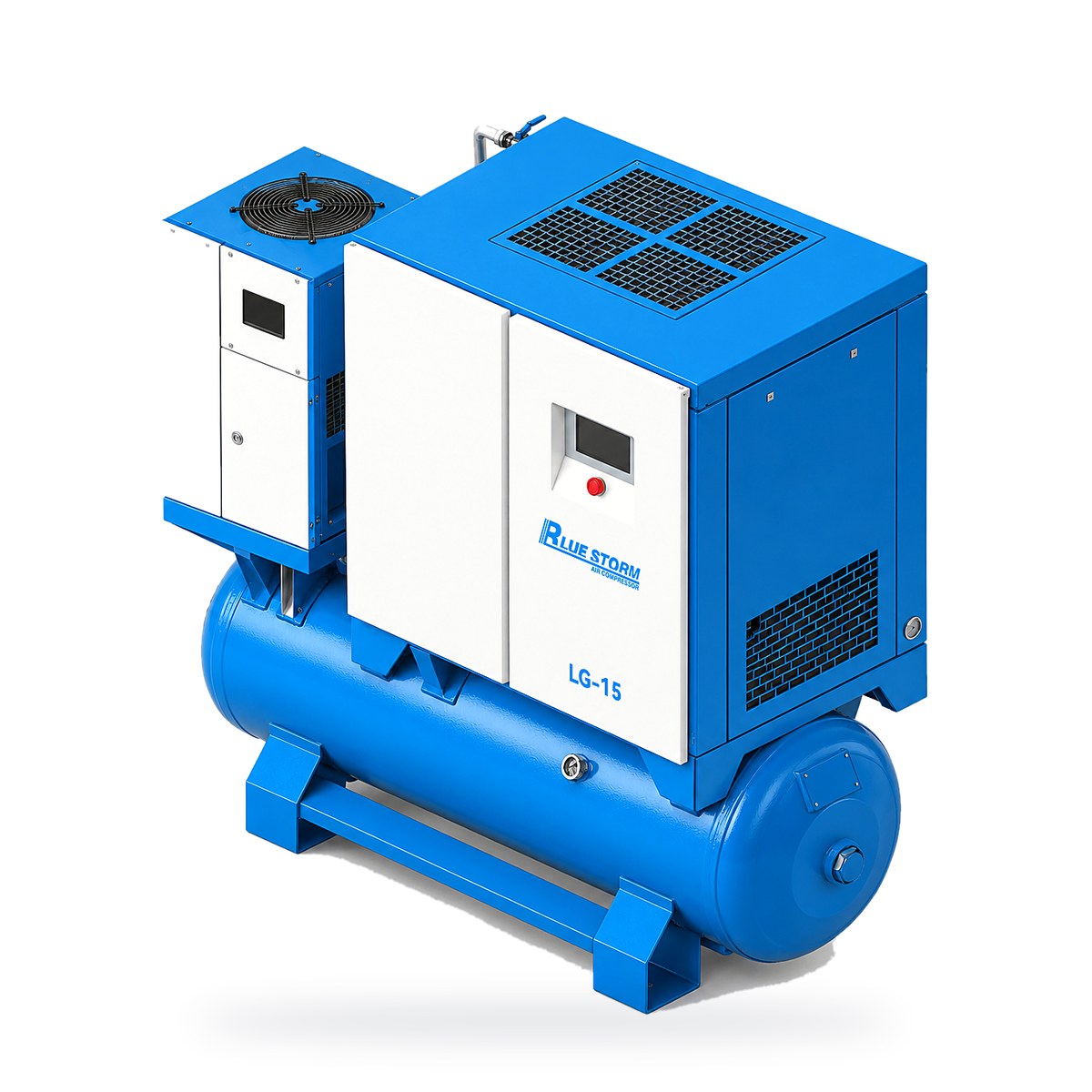

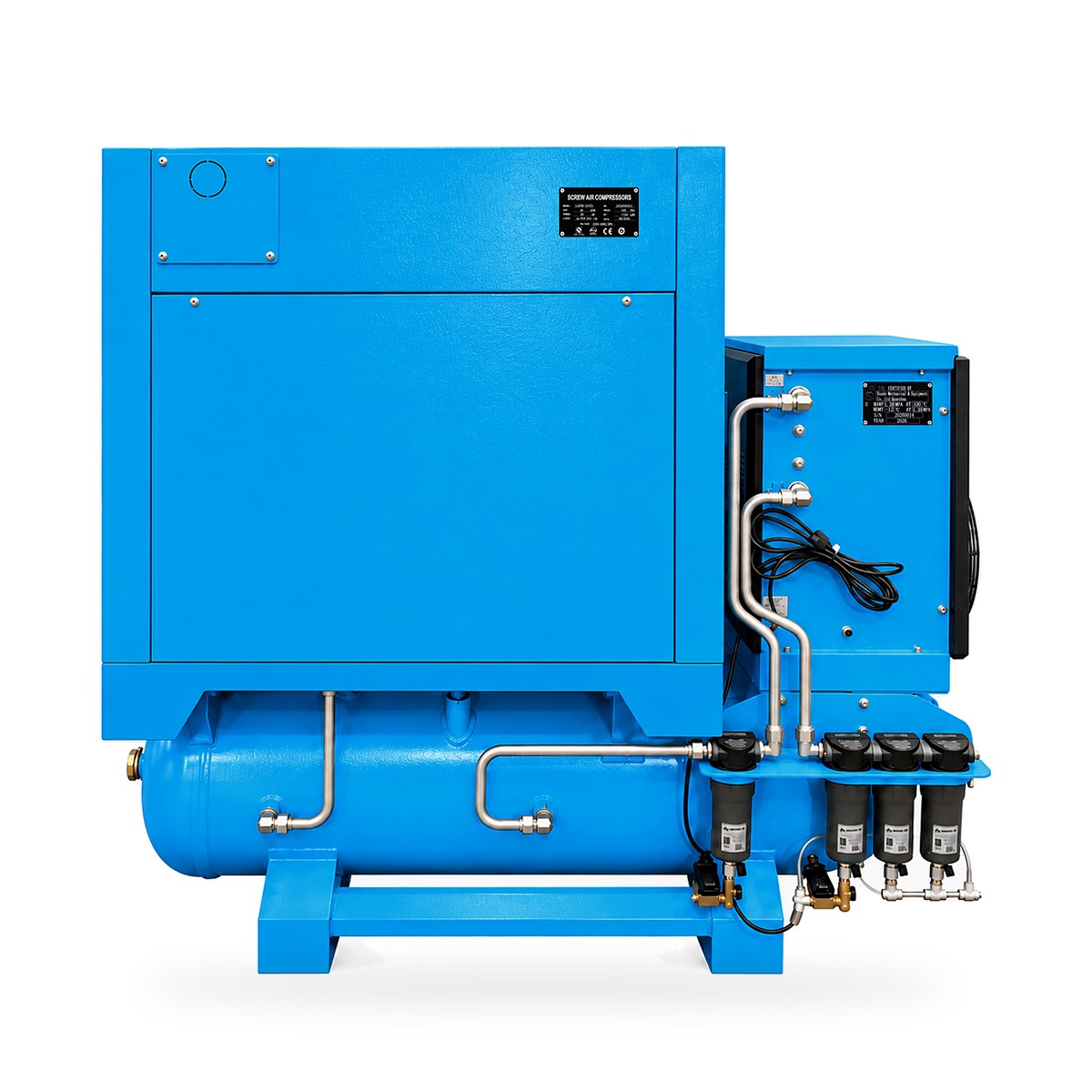

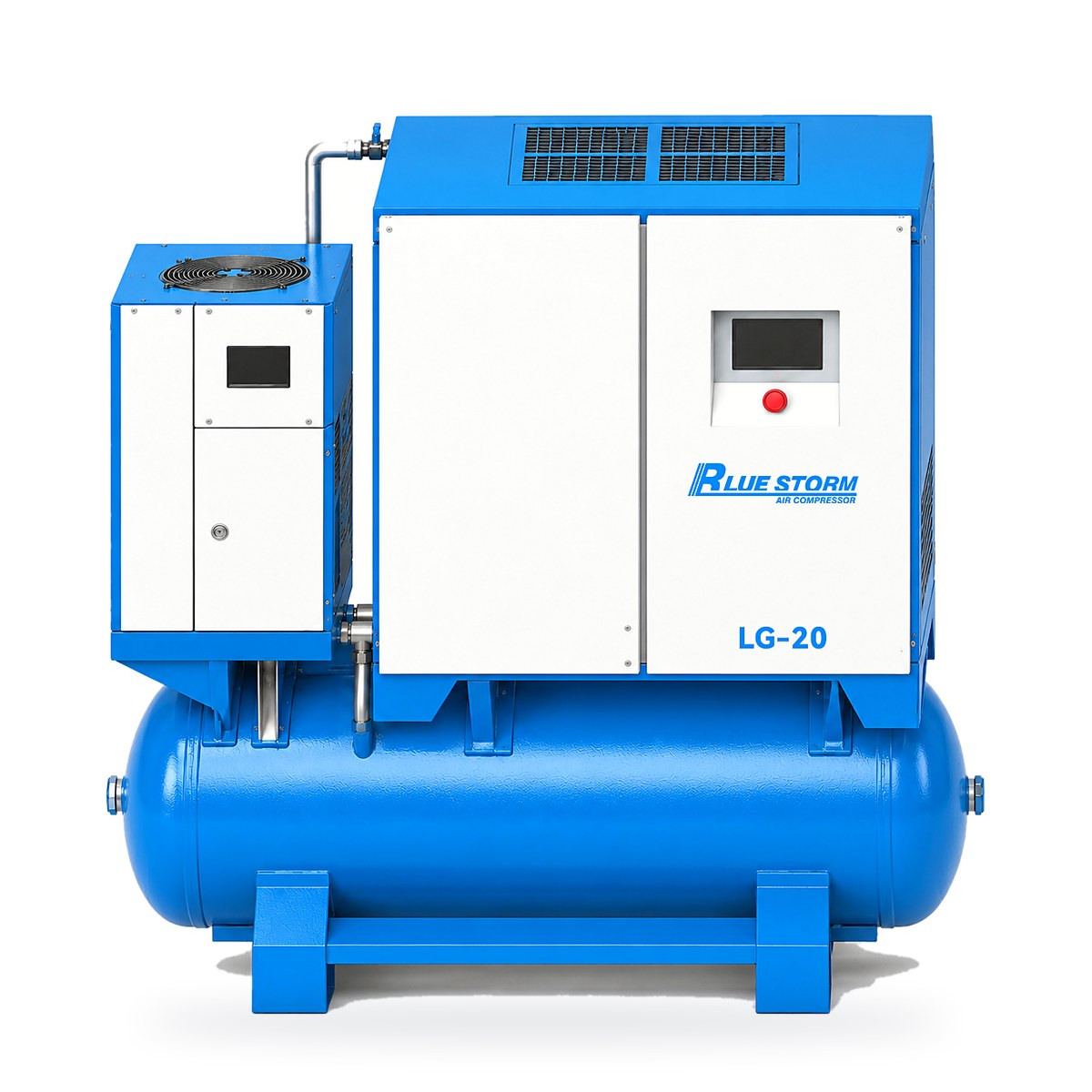

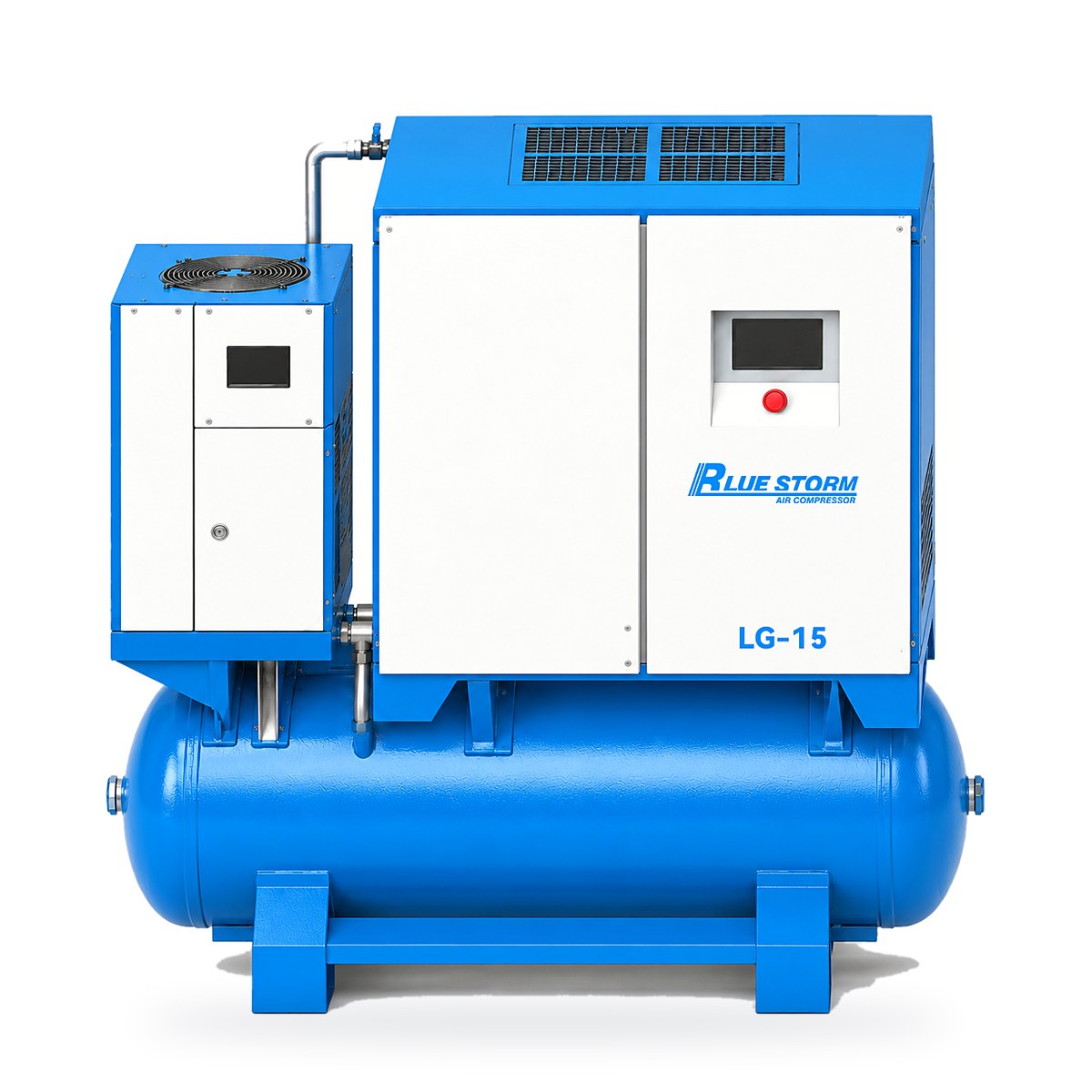

4-in-1 · NEMA belt drive

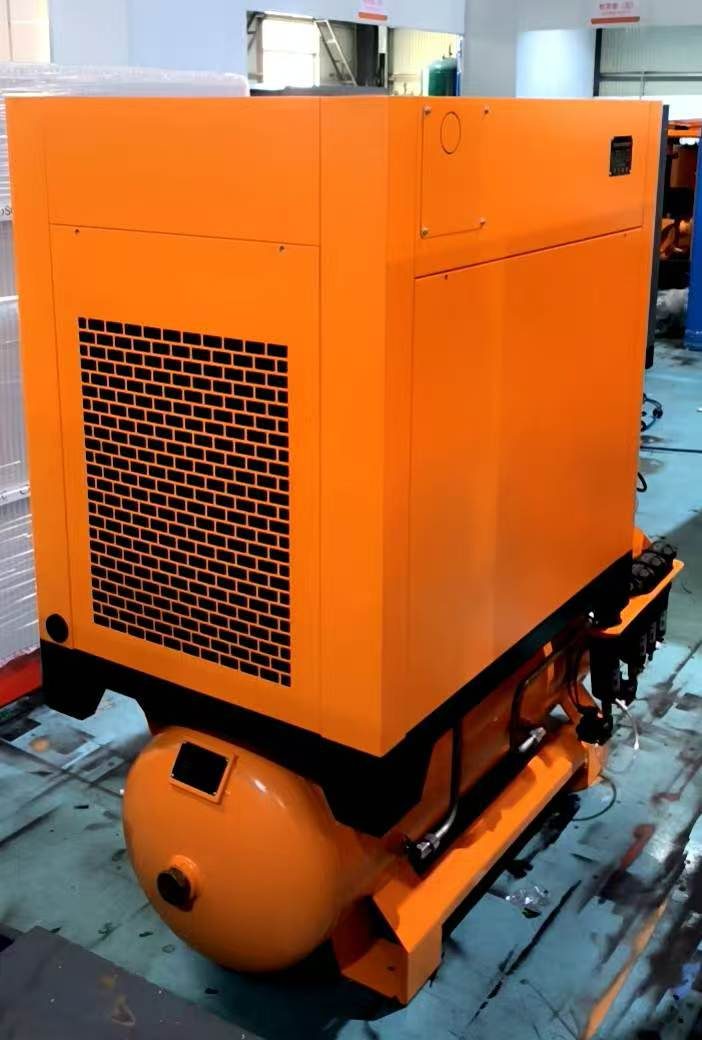

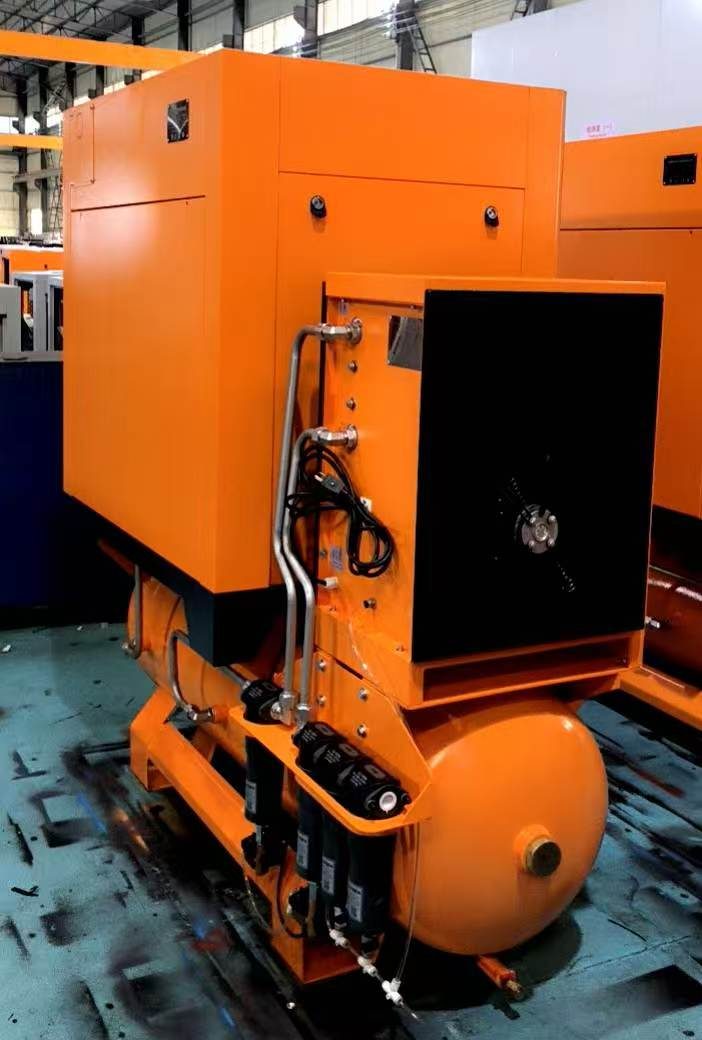

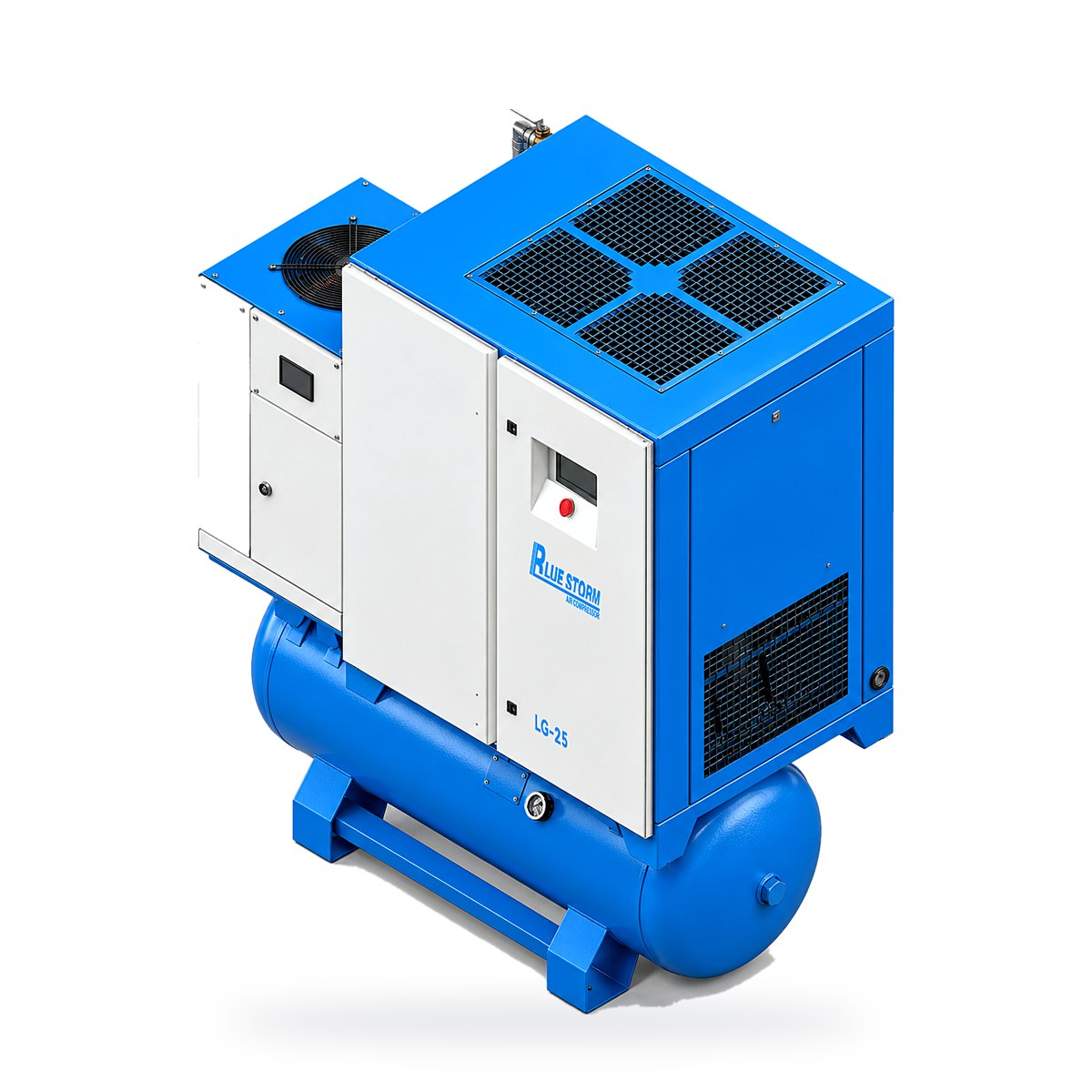

4-in-1 package: belt-drive compressor, large air receiver, refrigerated dryer and precision filters on one base. Ready to run as soon as it is powered, with a small footprint and no site piping or separate air treatment to install. Dryer pressure dew point 35–50 °F (2–10 °C); filtration to 0.01 µm. Also available tank-only, without dryer and filters.
| Model | HP / kW | Power supply (60 Hz) | CFM @ 116 psi | CFM @ 125 psi | CFM @ 145 psi | CFM @ 174 psi | Air receiver | Dryer / filter CFM | Noise dBA @ 1 m | Outlet | L×W×H (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LG-5TD | 5 / 3.7 | 208–230/460 V 3 ph · 208–230 V 1 ph | 17 | 16.2 | 14.5 | 10.2 | 302 L (≈80 gal) | 35.3 / 42.4 | 68 ±2 | 1/2" NPT | 66.1 × 29.1 × 64.0 |
| LG-7.5TD | 7.5 / 5.5 | 208–230/460 V 3 ph · 208–230 V 1 ph | 25.4 | 24.7 | 20.8 | 16.2 | 302 L (≈80 gal) | 35.3 / 42.4 | 68 ±2 | 1/2" NPT | 66.1 × 29.1 × 64.0 |

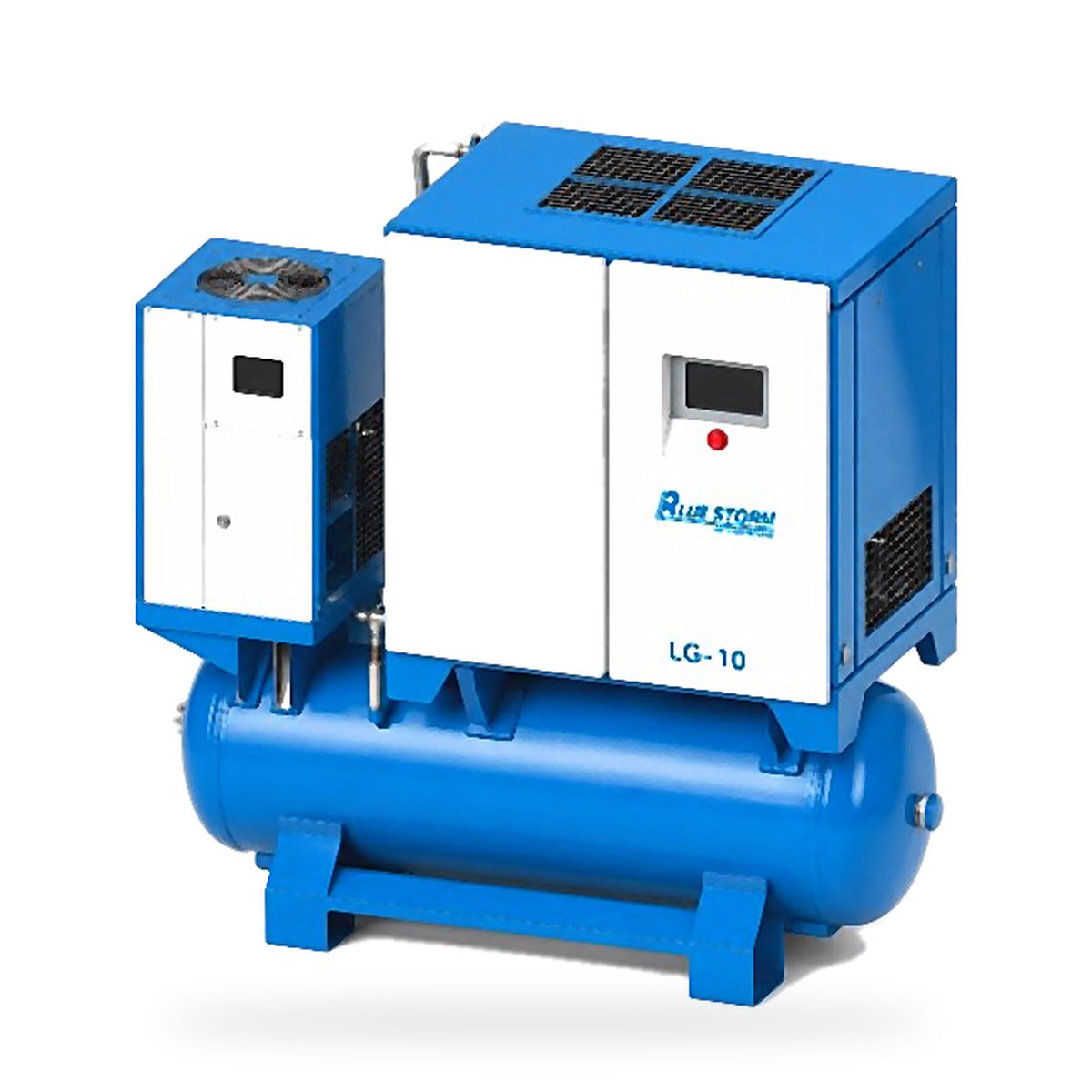

| LG-10TD | 10 / 7.5 | 208–230/460 V 3 ph · 208–230 V 1 ph | 32.8 | 32.5 | 26.1 | 21.5 | 302 L (≈80 gal) | 35.3 / 42.4 | 68 ±2 | 1/2" NPT | 66.1 × 29.1 × 64.0 |
| LG-15TD | 15 / 11 | 208–230/460 V 3 ph | 58.3 | 57.9 | 49.1 | 38.1 | 454 L (≈120 gal) | 56.5 / 81.2 | 72 ±2 | 3/4" NPT | 69.4 × 33.0 × 73.5 |
| LG-20TD | 20 / 15 | 208–230/460 V 3 ph | 69.6 | 68.9 | 61.8 | 56.2 | 454 L (≈120 gal) | 91.8 / 81.2 | 72 ±2 | 3/4" NPT | 69.4 × 33.0 × 73.5 |
| LG-25TD | 25 / 18.5 | 208–230/460 V 3 ph | 100.6 | 100.3 | 91.1 | 76.6 | 454 L (≈120 gal) | 127.1 / 123.6 | 75 ±3 | 1" NPT | 71.4 × 35.7 × 80.7 |

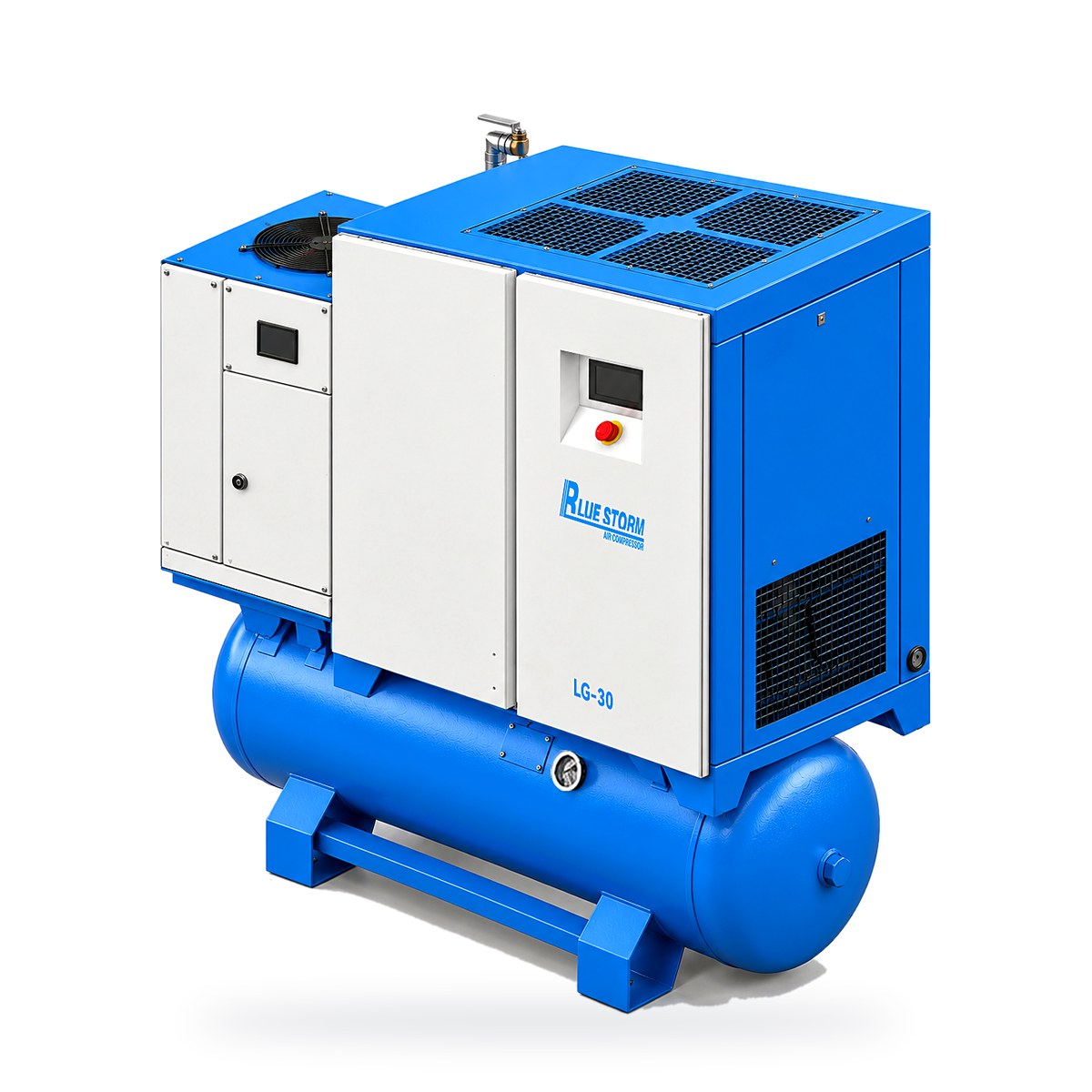

| LG-30TD | 30 / 22 | 208–230/460 V 3 ph | 130 | 129.3 | 105.9 | 96.1 | 454 L (≈120 gal) | 127.1 / 123.6 | 78 ±2 | 1" NPT | 71.4 × 35.7 × 80.7 |
All models available in 208–230/460 V dual-voltage three-phase, 60 Hz; LG-5TD, LG-7.5TD and LG-10TD also available in 208–230 V single-phase. LG-15TD to LG-30TD three-phase only. Weight: contact sales.
4-in-1: belt-drive compressor, tank, refrigerated dryer and filters.
4-in-1: belt-drive compressor, tank, refrigerated dryer and filters.
4-in-1: belt-drive compressor, tank, refrigerated dryer and filters.
4-in-1: belt-drive compressor, tank, refrigerated dryer and filters.
4-in-1: belt-drive compressor, tank, refrigerated dryer and filters.
4-in-1: belt-drive compressor, tank, refrigerated dryer and filters.
4-in-1: belt-drive compressor, tank, refrigerated dryer and filters.
Genuine synthetic oil for Blue Storm compressors. Recommended oil change: every 4,000 hours. Filters and separator: see parts & service intervals.
| CSO461G | Synthetic oil, 1 gallon |
| CSO465G | Synthetic oil, 5 gallon pail |
Tell us about your application. Our Houston team will recommend the right Blue Storm model.
